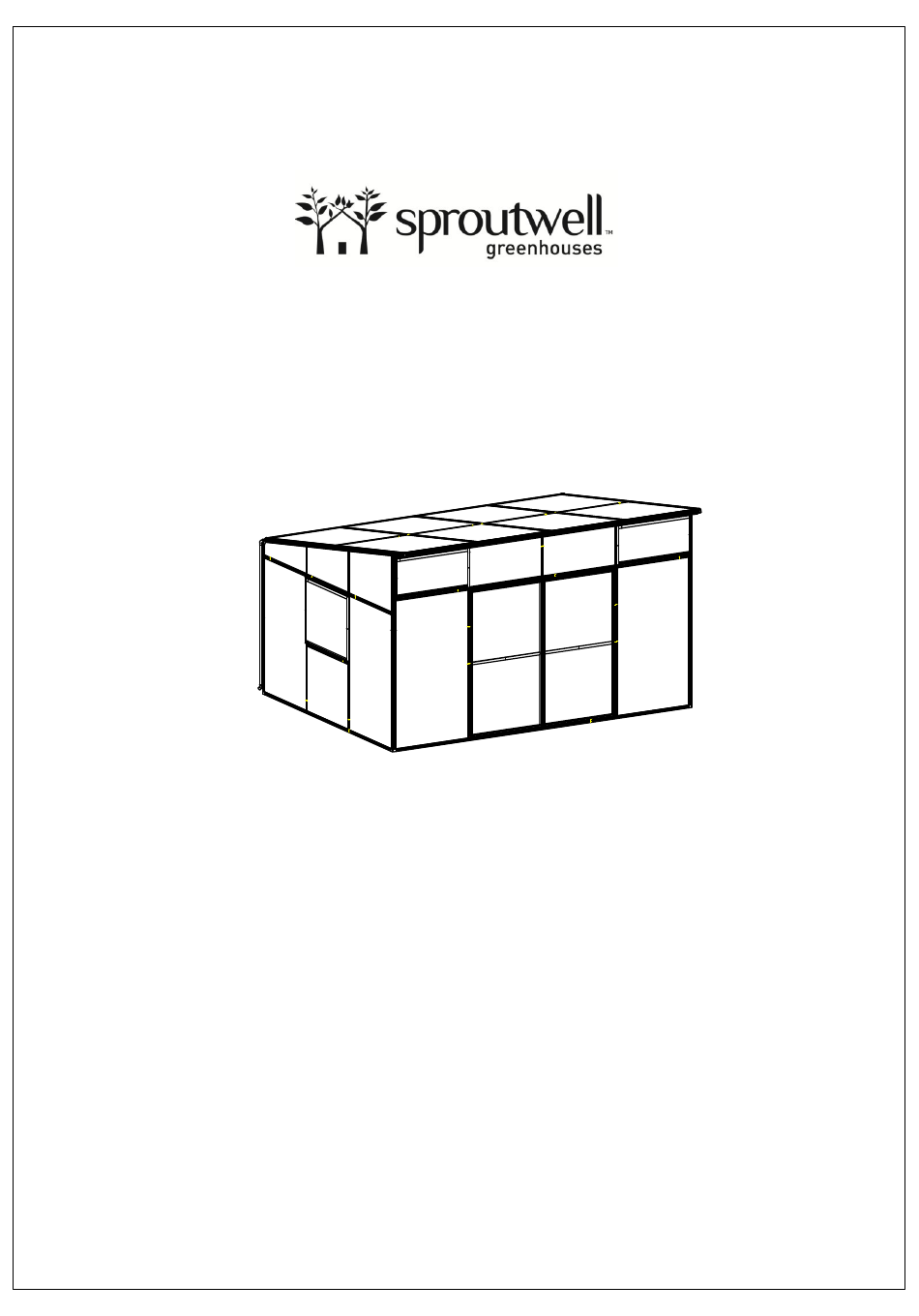

- Page 1 REGATTA Greenhouse Assembly Instructions REGATTA MODEL: PRODUCT SIZE(LxWxH):334x400x247cm PLEASE READ CAREFULLY BEFORE ASSEMBLY...
- Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that the product will be assembled by at least two people. 2. Some parts have sharp edges. Please be careful when handling components. Always wear gloves, shoes and safety goggles during assembly. 3.
- Page 3 Expansion screw Wooden base / Concrete ground 5. The REGATTA Series greenhouses come standard with Manual opening arms. Automatic openers can be purchased seperately and fitted to any window vent. We recommend two automatic vent openers be fitted to each vent in the same positions the standard manual vent arms.
- Page 4 POLYCARBONATE ORIENTATION PLEASE NOTE: We have recently changed our polycarbonate film. All panels must be installed with the white film facing inside and the clear film with writing facing the sun. If you have any questions please feel free to contact us.
- Page 5 REGATTA ALU. BOX NO. 1 PART L01B L01C L01D L01E L01F L02B L02C L02D L02F L02G L02H L02I L03A L03C L08A L08B L23D...
- Page 6 REGATTA ALU. BOX NO. 2 PART PART L01A L02A L02E L03B L04A L04B L04C L23B M6X10 L23C L23E M4X10 L23F M8X60 M6X10 M4.2X16 PART Ø4X14D L15A M5X12 L19A L19B J02R J02L PART L18A L18B L16A L16B L16C L16D L23A...
- Page 7 REGATTA PC BOX NO. 1 PART PC NO.1...
- Page 8 REGATTA PC BOX NO. 2 PART PC NO.2...
- Page 9 Expansion screw/Concrete ground * It is crucial the a + b dimensions are the same to ensure the base is square. Batten Screw 14g. Min. 50MM Wooden base Support at the corners only is not adequate.
- Page 10 PART Expansion bolts assembly M8X60 2972MM * This shows a layout for W05's positions where it is placed in the middle of PC panel for each section. 1000 1000 1000 1000...
- Page 11 PART Left Door Assembly L18B L16A L16C L16C L16D L23A M5X12 L23A L18B M6X10 L16A M4.2X16 L23A L16D Insert Connector J into each end of the profiles L16A & L16C & L16D & L18B, and then mark the distance from each end about 20MM & 30MM. Lastly, secure them with screws Z01 as shown.
- Page 12 PART Right Door Assembly L18A L16D L16B L16C L16D L23A L16B M5X12 L23A M6X10 L18A M4.2X16 L23A L16C Insert Connector J into each end of the profiles L16B & L16C & L16D & L18A, and then mark the distance from each end about 20MM & 30MM. Lastly, secure them with screws Z01 as shown.
- Page 13 PART QTY. L15A Z02 x 2 Wall Vent Assembly L19A L15A L19A M4X10 Ø4X14D One Z02 for L15A and two for L19A. Z02 x 3 L19A Z02 x 2 L19B S02 x 2 Slide S02 x 2 in to secure the vent arm W06.
- Page 14 PART QTY. L15A Z01 x 2 Front Vent Assembly L19B L15A L19B M4X10 Ø4X14D One Z02 for L15A and two for L19B. Z02 x 3 L19B Z02 x 2 L19B S02 x 2 Slide S02 x 2 in to secure the vent arm W06.
- Page 15 PART L08A L08B L08A L08B L08B L08A Fix J01 x 4 when inserting the connectors A & B. * Please ensure the pins on connectors are placed in correct orientation. L08A L08B L08A L08B...
- Page 16 PART L01A L01D L01A L01E L02A L01A L01D L02C L01E L02D M6X10 M6X10 *Ensure 1 x S01 must be slided into the channels of each L02A, L02C and L02D for future bracing assembly. L02A&C&D L02A L02A L02A L02A L02C L02D L02C L02D...
- Page 17 PART L02F L03A L02G L02H L03B L02I L03B L23B L03A L23B L03B L23B L03C L23B L02A L23B M6X10 L03A Insert the cap J04 into one end of each L03B as shown. L03B L02I L02G L02F L02H L02F/G/H/I L03C L03C Place L03C x 2 as shown and secure them with S01 &...
- Page 18 PART L04B Wall panels assembly L04C M6X10 L04B L04C L04B Pay attention to the cut edge of L04B & C which should be fixed, facing up. 4*S01 L04B&C L04B&C...
- Page 19 PART L04A L04B L04A L04A L23D M6X10 L23D L04B L23D L23D L23D Pay attention to the cut edge of L04B which should be fixed, facing up. L04A&L10 Pay attention to the cut edge of L04A & L10 L04B which should be fixed, facing down. L04A S01 x 4 L04B...
- Page 20 PART L02E L02E WINDOW1 Wall Vent M6X10 M4.2X16 L02E *Ensure 1 x S01 must be slided into the L02E channel for future bracing assembly. L02E L04B Adjust W08 to the correct position, and then tighten the bolts & nuts.
- Page 21 PART M6X10 Slide S01 x 8 into L06. S01 x 8...
- Page 22 PART L02B L02C Front Vent WINDOW2 M4.2X16 M6X10 L02B&C L04B Adjust W08 to the correct position, and then tighten the bolts & nuts. L02B&C L02C L02B L02B&C...
- Page 23 PART L01F L01F...
- Page 24 PART L02B Roof Assembly L03B M6X10 L03B L02B L02B *Ensure 2 x S01 must be slided into each L02B channel for future bracing assembly. L02B L02B L02B L01F L02B L03B...
- Page 25 PART L23C L03A M6X10 L23C L03A L23C L02B L03A...
- Page 26 PART L04B M6X10 L04B L04B L04B L04B Pay attention to the cut edge of L04B which should be fixed, facing up. Use Silicone to avoid leaking L02D S01 x 2 (not provided). L04B L04B...
- Page 27 PART L23E L23F M5X12 M5X12 L23E L23F Install the gutter profile L09 once all panels are completely inserted. Then tap L09 gently into the channel of L07 with a rubber mallet. RIGHT DOOR ASSEMBLY LEFT DOOR ASSEMBLY...
- Page 28 PART J02R J02L M4.2X16 Ø4X14D J02R/L Drill a hole in L01A & D & E, Use Silicone to avoid leaking roughly 3.2mm diameter. (not provided). Use Z01 to secure the bracket J08 and then clip the downpipe J06 into the bracket J08.
