QTY
NO
PART
3
L03A
Y5
4
S01
12
M5X12
S01
L08A
L07A
S01

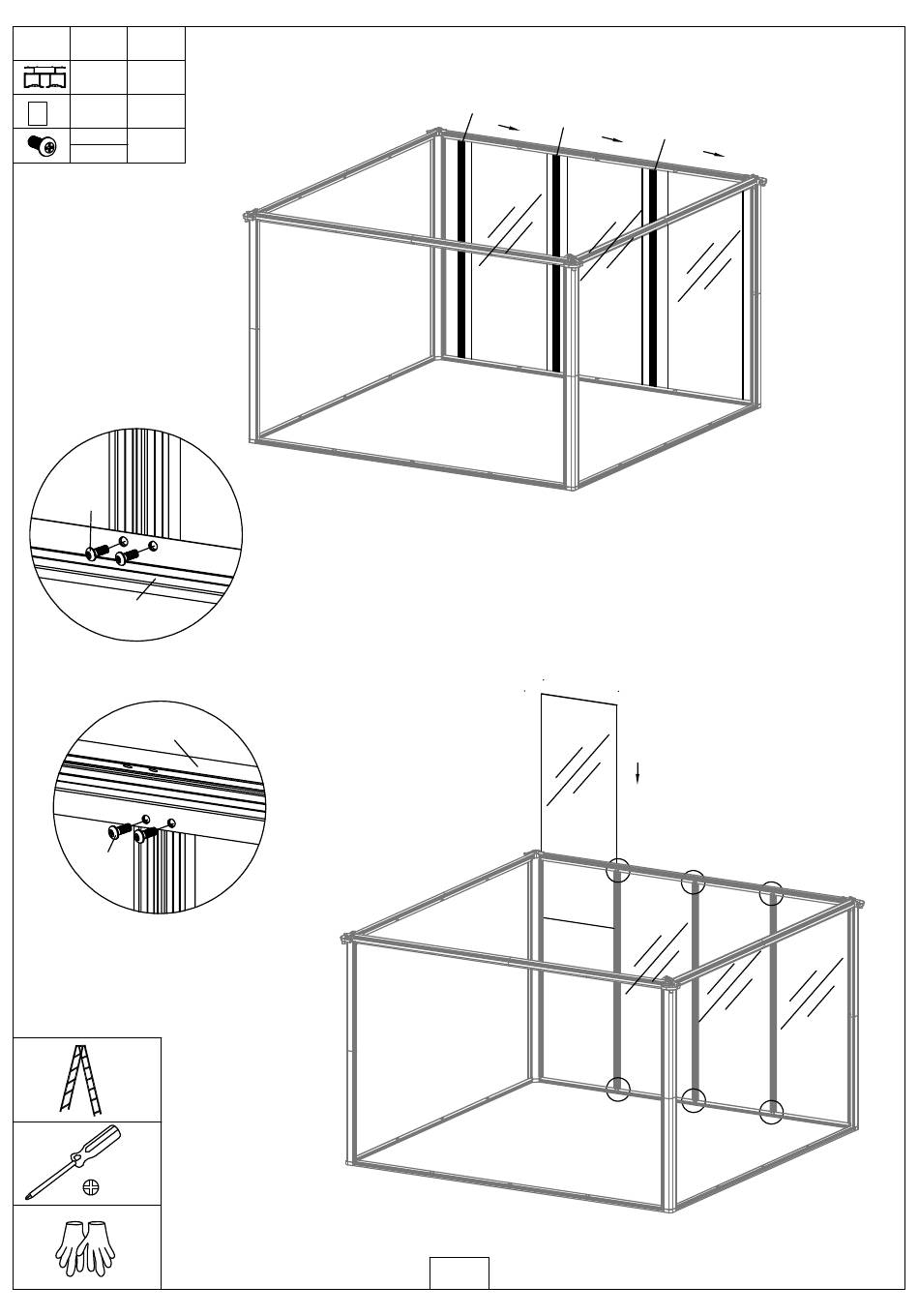

Back Wall Assembly
Insert the first Panel Y5 into the channel of L01A,
and then install L03A. Secure them with screw S01.
Do the same for another 2 sections.
Lastly, slide the last Panel Y5 from the top into
the channels of L01A & L03A as shown below.
* This shows the correct way to install Glass Panels.
But if using PC Panels, you can install all the L03A firstly,
and then slide PC Panels in.
L03A
L03A
Y5
Y5
Y5
18
L03A
Y5
The last panel
