Sproutwell Small Circle Assembly Instructions Manual

320x283x275cm
Hide thumbs

Advertisement

Quick Links

Download this manual
MODEL:Small Circle
PRODUCT SIZE(LxWxH):320x283x275cm
PLEASE READ CAREFULLY BEFORE ASSEMBLY
Small Circle Greenhouse
Assembly Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Small Circle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sproutwell Small Circle

Summary of Contents for Sproutwell Small Circle

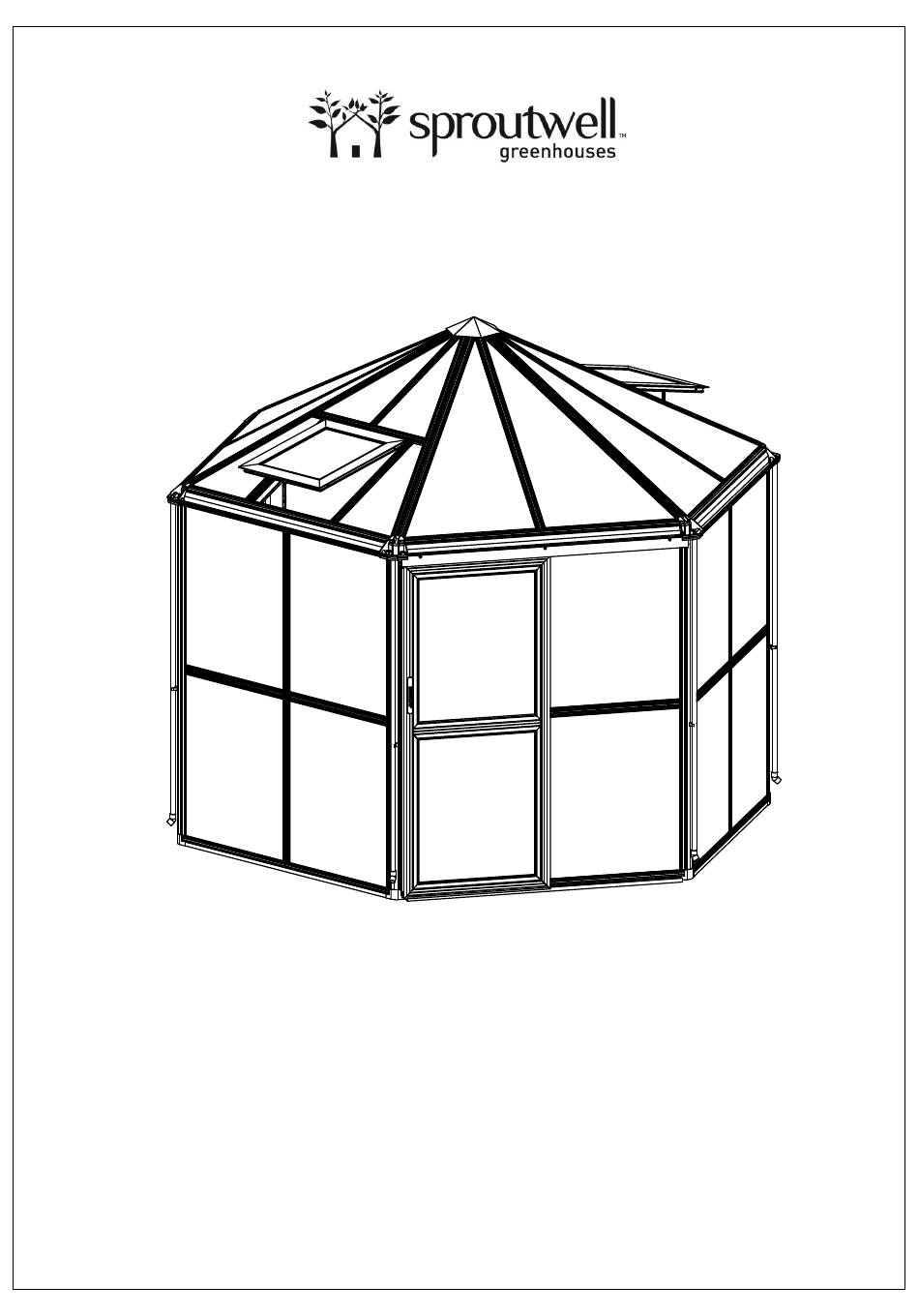

  • Page 1 Small Circle Greenhouse Assembly Instructions MODEL:Small Circle PRODUCT SIZE(LxWxH):320x283x275cm PLEASE READ CAREFULLY BEFORE ASSEMBLY...

  • Page 2: Table Of Contents

    CONTENTS 1. Assembly Advice ..............Page 1 2. Product Features ..............Page 2 - 3 3. Part Lists ................Page 4 - 7 4. Roof Vents Assembly ............Page 8 - 12 6. Doors Assembly ..............Page 13 - 16 7. Base Assembly ..............Page 17 - 18 8.

  • Page 3: Assembly Advice

    Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that the product will be assembled by at least two people. 2. Some parts have sharp edges. Please be careful when handling components. Always wear gloves, shoes and safety goggles during assembly. 3.

  • Page 4: Product Features

    Functions and Features: 1. Compared with traditional greenhouses, this exciting new product features many significant improvements. The hollow box profile aluminium framing is much stronger than other greenhouses and it can withstand much greater wind loads. New Circle Greenhouse Traditional Greenhouse 83mm 72mm 30mm...
  • Page 5 3. Base anchor brackets are included as standard with expanding bolts to ensure a secure fixing into concrete or paving. Alternatively, you can use the brackets to fix into a timber base with wood screws. Expansion Steel bar/Lawn land screw/Concrete ground We recommend a timber plinth be used and secured to the earth with metal star pickets.

  • Page 6: Part Lists

    ALU. Box No.1 PART L08A L01A M6X12...
  • Page 7 ALU. Box No.2 PART L02A L02K L03A L23A L23B L23C L23D M6X12...
  • Page 8 ALU. Box No.3 PART PART Windowx2pcs Door L02B PART PART L02C L19A L02D L16A L19B L02E L16B L04A L11F L18A L24A L11G L18C L24B L18D L11H L24C L11J L24D Ø4X10 M6X12 L25A Base M8X150 L25B PART L25C M8X30 L25D Ø4X14 M8X60 L25E Ø4X14D...
  • Page 9 PC/GLASS. Box PART PC/Glass...

  • Page 10: Roof Vents Assembly

    PART L19A L19B Roof Vents Assembly 2PCS L11F L11G Ø4X10 Frames L19A Panels L19A L11G L19B L11F L11F L11G Aluminium Capping...
  • Page 11 L19A L19A L19B L19A L19B L19A Push down the button on After connector J has been fitted, connector J before inserting it use the hole in the profile to tighten into the end of the frame profile. the connector in place.
  • Page 12 L11G L11F L11F L11G L11F L11F First the glazing panel Y10 should be loosely retained by the bar capping profiles L11F and L11G. Next tap the bar capping gently into position with a rubber mallet.
  • Page 13 Fix the W06 vent handles using Z03 screws.
  • Page 14 Fill the gap with silicone sealant on 4 sides to avoid any leaking.

  • Page 15: Doors Assembly

    PART PART PART L16A L16B M8X30 Door Assembly L18A L18C Ø4X40 L18D L11H L11J...
  • Page 16 Put L16A into L17 and L18D and put L16B into L18A and L18C, then assemble the door frames using connector J, as shown in the sketches below. L18A&C&D L16A L18D S02x2pcs L18D L16A L16A&B L16A L16B L18A L16A L16A L18C Push down the button on connector J before inserting it into the end of the frame profile.
  • Page 17 L11H L11J L11H L11H L11J L11H First the glazing panels should be loosely retained by the bar capping profiles L11H and L11J. Next tap the bar capping gently into position with a rubber mallet.
  • Page 18 Slide 2xS02 into L18D, positioned 100mm away from each edge. Secure S02 using M02 bolts, then rotate the wheels to ensure free movement. 100mm 100mm 29mm 29mm * This is the method of adjusting the door height. After Assembly...

  • Page 19: Base Assembly

    Expansion bolt in concrete It is essential the dimensions a = b = c are the same to ensure the base is square. Steel pegs in soil We recommend a timber plinth be used and secured to the earth with metal star pickets. Support at the corners only is inadequate.
  • Page 20 PART Base Set Up M8X60 3189.4mm 3042.3mm 1594.7mm 106.3 This shows the outer & inner dimensions of this product which helps build up the optional bases. Assembly of W05 and dimensions...

  • Page 21: Framework Assembly

    PART L08A L08A L08A L08A L08A L08A L08A First lay out the aluminium profiles, connectors and anchor brackets approximately in place. Make sure you pay close attention to the direction of the pins L08A L08A L08A Assemble all of the L08A and L10 with connecter A. Insert connector A into L08A and L10, tighten the bolts with the spanner (provided) when the connector A is in the right position.
  • Page 22 PART L01A L01A L01A L01A L01A L01A L01A Make sure you pay close attention to the direction of the pins L01A L01A L08A L08A L08A Assemble L01A with connector A,insert connector A into L01A, tighten the bolt with the spanner (provided) when it's in the right position.
  • Page 23 PART M6X12 Make sure you pay close attention to the direction of the pins S02X3pcs L01A L01A Slide the S01 bolts (3PCS) into Assemble the L07 and L01A with connector B, insert connector B into L01A and L07, tighten the bolt with the channel of the L07 that is the spanner (provided).
  • Page 24 PART L23A L23B L23B L23A L08A L23A L23B L01A Please pay attention to the direction of the components. L23B L23B L08A Tap the coverstrip L23B into L10, L08A and L07, and L23A into L01A gently with a rubber mallet.
  • Page 25 PART L23C L23C L23C L23C L23C L08A L23C L23C 50mm 50mm Tap the coverstrip L23C into L10 and L08A gently with a rubber mallet. Make sure you leave 50mm between the two L23C in the middle to allow installation of the wall framing later.
  • Page 26 PART L02A L02A L02A L02A L23A L02A L02A L02A L23A L02A L02A L23C L23C L02A Put the connector K into the slot of L07, L10 Slide in Tighten up and L08A, rotate the connector until it slots into the channel as per the diagram on the left. Tighten the bolt in the connector K with the spanner.
  • Page 27 PART L23D L23D L23D L01A L02A L01A L23D L01A L01A L23D L02A 50mm 50mm 50mm 50mm Tap the coverstrip L23D into L01A and L02A gently with a rubber mallet. Make sure you leave 50mm between the two L23D in the middle, to allow the installation of the L02K in future steps.
  • Page 28 PART L23A L23D L23A L23D L01A L01A L01A L02A L01A L02A L23D L23B L23D 50mm 50mm L23D L23D Tap the coverstrip L23A and L23D into L01A and L02A gently with a rubber mallet. Make sure you leave 50mm between the two L23D in the middle, to allow the installation of the L02K in future steps.
  • Page 29 PART L02K L02K L02K L02K L23D L02K L23D Slide in Tighten up Put the connector K into the slot of L02A and L01A, rotate the connector until it slots into the channel as per the diagram on the left. Tighten the bolt in the connector K with the spanner.
  • Page 30 PART L23C L23C L02K L23C Tap the coverstrip L23C into L02K gently with a rubber mallet.
  • Page 31 PART L03A L03A L03A M6X12 L03A S01&W11 L03A L03A Assemble the L03A with the connector B, insert connector B into L03A, tighten the bolt with the spanner (provided) Remember to install the J02 in this step.
  • Page 32 PART L03A L03A M6X12 Do the same for the remaining L03A profiles.
  • Page 33 PART Auto Cap Assembly Auto Opener Auto Opener Install the Auto Opener cylinder through the central hole on W01 (Fig.1). Insert the split pin to secure it in place (Fig. 2 & 3).
  • Page 34 PART L24A L24B L03A Roof frame instructions where the roof vents are to be installed. L24B 578mm L24B L24B L03A L03A L24A L24A Tap the coverstrips L24A into L03A and L24B into L07 gently with a rubber mallet. Make sure you leave 50mm between the two L24B in the middle, to allow installation of the L02D later. Repeat the process on the other side where the vent is to be installed (2 standard window vents for one set).
  • Page 35 PART L02C L02C L25A 50mm L02E L02D L25A L25A L25B L02E L02E L25B L25A 578mm L25A L25B L02D L25B L25B L02D L25A L25B Roof frame on the window vent side M6X12 assembly L02E Tap the coverstrips L25A and L25B into L02E gently with a rubber mallet. Make sure you leave 50mm between the two L25A in the middle, to allow installation of the L02C later.
  • Page 36 PART L03A L02D L02D Put the connector K into the slot of L07 rotate the connector until it slots L24B L24B into the channel as per the diagram on the left. Tighten the bolt in the connector K with the spanner. Slide in Tighten up L03A...
  • Page 37 PART L25C L25D L25E L02C L02E L25C L02D L02D L25E L25D L25D Tap the coverstrips L25C into L02C, L25D into L02D and L25E into L02E gently with a rubber mallet. Do the same on the other side where the vent is to be installed.
  • Page 38 PART L24C L24C 50mm L24C L24C Tap the coverstrips L24C into L07 gently with a rubber mallet. Make sure you leave 50mm between the two L24C in the middle, to allow installation of the L02D later. Do the same on the other profiles.
  • Page 39 PART L02B M6X12 L02B L02B L02B W11&S01 L24C L24C Slide in Tighten up Put the connector K into the slot of L07, rotate the connector until it slots into the channel as per the diagram above. Tighten the bolt in the connector K with the spanner.
  • Page 40 PART L24D L24D L02B L24D Tap the coverstrips L24D into L02B gently with a rubber mallet. Do the same on the other sides.
  • Page 41 PART M8X150 Auto Auto Auto Opener Opener Opener Insert screw S04 into the W09 spring and Then install the opener piston so that it pushes up the W02 slightly. You will need to ensure push it through the holes in W01 and secure them into the W02 cap.

  • Page 42: Panels Assembly

    PART Panel Assembly L11B L11B L12C L11B L12C L12D L12D L11B L12C L12D Install the panels and aluminum bar capping in order as shown above, tap the bar capping into the channels with a rubber hammer. Do the same on the other side.
  • Page 43 Silicone sealant can help seal at these points to prevent any leaking. NOTE: ENSURE A POLYCARBONATE SUITABLE SILICONE IS USED.
  • Page 44 PART L11B L11B L11B L12B L12B L12B L11B L11B Install the panels and aluminum bar capping in order as shown above, tap the bar capping into the channels with a rubber hammer. Do the same on the other side.
  • Page 45 Silicone sealant can help seal at these points to prevent any leaking. NOTE: ENSURE A POLYCARBONATE SUITABLE SILICONE IS USED.
  • Page 46 PART Window x2pcs Ø4X10 M6X12 Slide the window vent along the groove in the L22 and fix it in the correct position using Z03 screws. L19A Window *Ensure the manual vent is closed as shown. Use a screw S01 to pass through Part Z,and then put part Z (2pcs) into the slot of L07 and rotate them to allow the W08 to be bolted on.
  • Page 47 PART PART L11A L11D L12A L12K L11A L11A L12K L12K L12A L11D L11D Install the panels Y6 and aluminum bar capping in order as shown above, tap the bar capping into the channels with a rubber hammer. Do the same on the other sides.
  • Page 48 PART PART L11A L11E L12A L12K L11A L12K L12A L11E Install the panels Y6 and aluminum bar capping in order as shown above, tap the bar capping into the channels with a rubber hammer.
  • Page 49 PART L18D Rotate D, the roller wheels, to adjust the height of the door Door so it does not bind or rub on the bottom track.
  • Page 50 PART L04A Ø4X14D L04A L04A Auto Opener L04A Turn the Auto Opener cylinder counter clockwise to adjust the gap between the W02 and L03A.
  • Page 51 PART Ø4X14 L03A Use silicone sealant around J02 You can use silicone sealant Drill a hole in L01A and L01B, around the downpipe bends and J06 to avoid water leaking. approximately 2.5mm diameter to avoid water leaking. and 700mm up from the bottom. Fix the J08 downpipe bracket with Z01 screws and then clip the J06 downpipe into the J08...
