QTY
NO
PART
L23A
4
W23
1
W21
4
S01
32
M5X12
W23

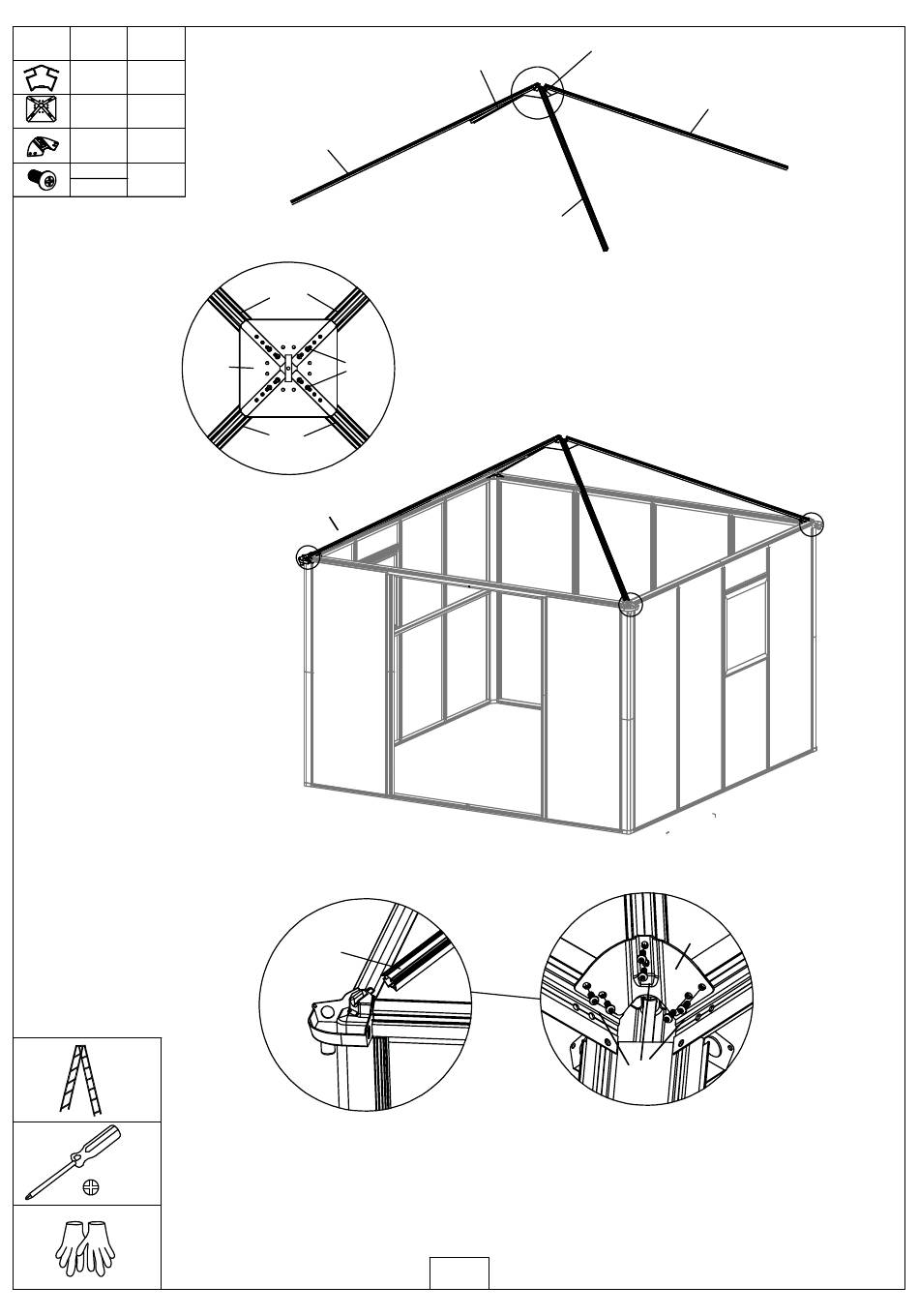

Roof Assembly
L23A
L23A
S01
L23A
L07A
Outside View
L23A
Use the bracket W21 to connect the roof profiles L23A
and the eave profiles L07A, then secure them with S01.
* Two persons at least are needed to complete this assembly.
L23A
L23A
Use the bracket W23 to connect 4 X L23A as shown,
then secure them with S01 bolts.
25
W23
L23A
Inside View
W21
S01
