Sproutwell SMALL GAZEBO Assembly Instructions Manual page 27

QTY
PART NO
4
L03B
4
L03C
4
L09A
4
W22
Y1
4
4
Y2
Y3
4
Y4
4
S01
40
M5X12

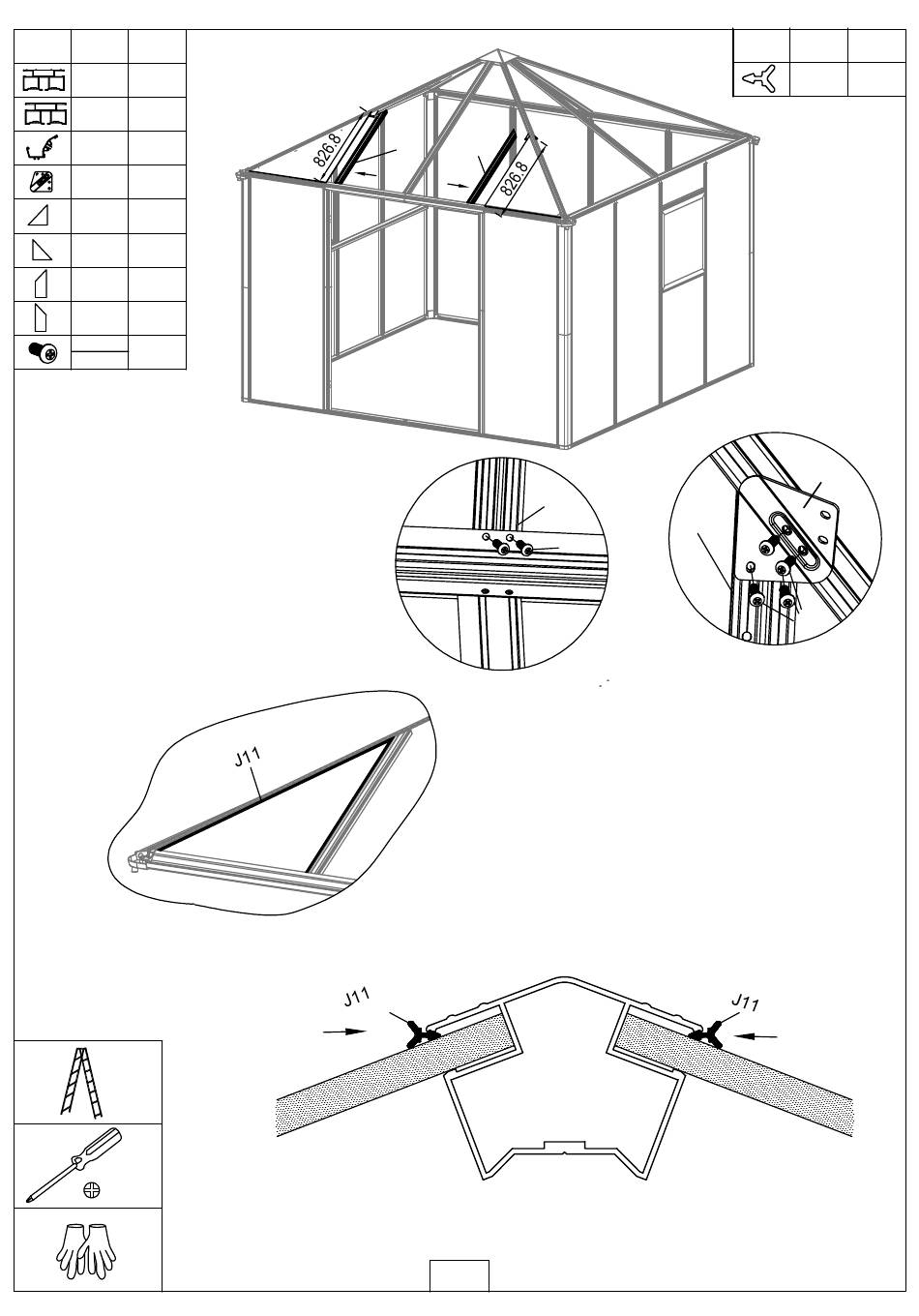

*Please ensure the orientation of Y1 & Y2
is correct when panel assembly.
The longer edge, 826.8MM, should be
placed vertically as shown.
L03C
Y1
Y1&Y2
Install Y1 & Y2
Insert the Rubber J11 between Glass panels and Profiles
as shown below (Not Provided for PC panels).
L03B
Y2
L03B/ L03C
S01
Use the bracket W22 to connect L03B & L03C,
and secure them with S01.
Then slide Y1 & Y2 in place.
27
NO
PART
J11
W22
L03B/L03C
S01
QTY
46.2M
