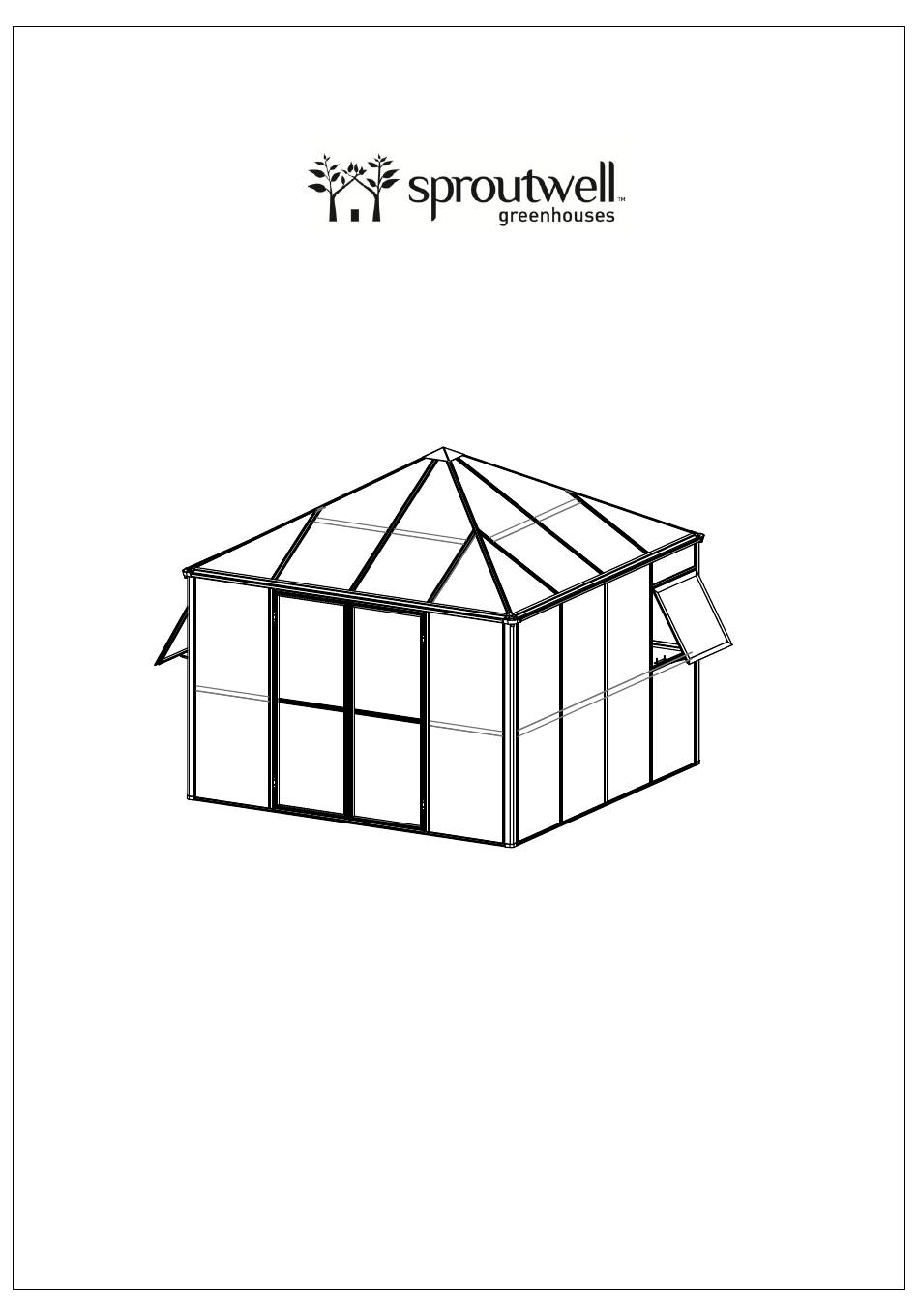

- Page 1 Gazebo Glasshouse Assembly Instructions SMALL GAZEBO MODEL: PRODUCT SIZE(LxWxH):295x295x270cm PLEASE READ CAREFULLY BEFORE ASSEMBLY...
- Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least two people. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.
- Page 3 Functions and Features: 1. Compared with traditional greenhouses this new product features many significant improvements. The hollow box profile aluminium framing is much stronger than other greenhouses and it can withstand much greater pressure. 2. Base anchor brackets are included as standard with expanding bolts to ensure a secure fixing into concrete or paving.
- Page 4 5. Manual window handles are included as standard with the roof vents. If required, automatic roof vent openers are available as an inexpensive optional extra. Manual Opener Automatic Opener 6. Each Polycarbonate Panel comes with UV protected properties. Please ensure the clear film with the text faces out, toward the sun. Remove both films before installation of the panels.
- Page 5 POLYCARBONATE ORIENTATION PLEASE NOTE: We have recently changed our polycarbonate film. All panels must be installed with the white film facing inside and the clear film with writing facing the sun. If you have any questions please feel free to contact us.
- Page 6 SMALL GAZEBO (ALU Box No. 1) PART PART L01A L04A L04B L05A L07A L08A L09A L23A L05E L05F M5X12 M5X12 M4.2X16 Ø4X14D M4.2X16 M8X60 M6X12...
- Page 7 SMALL GAZEBO (ALU Box No. 2) PART L02E Door Assembly Vent Assembly x 2 L03D PART PART L05B L16A L19A L05C L16B L19B L03A L18A L03B L18B L15A L03C L18C L18D L05G...
- Page 8 SMALL GAZEBO (PC/Glass Box No. 1) PART PART 126M Rubber Sealing for Walls & Roof (Provided for Glass Panels only) PC/Glass PART NO.1 Rubber Sealing for Walls Only (Provided for Glass Panels only)
- Page 9 PART L19A Vent Assembly L19B M4.2X16 L19A L19A Install Vent Arm W06 in the middle L19B of L19B, 322mm from each end. Screws position Screws position L19B 20MM Insert Connector B & W07 into each end of the profiles L19A & L19B & L20, and then mark the distance from each end about 20MM.
- Page 10 PART PART 2.65M L15A L15A M4.2X16 Ø4X14D Insert the Rubber J11 between Glass panels and Profiles as shown below (Not Provided for PC panels).
- Page 11 PART Left Door Assembly L16A L18A L16B L18A L05G L18B L18C L16B L18D L18D L05G M5X12 L05G M4.2X16 M6X12 L18B Insert Connector A into each end of the profiles L16B & L18A & L18B & L18D, and then mark the distance 20MM from each end about 20/30MM.
- Page 12 Right Door Assembly L18B L05G L18C L16A L05G L18A Insert Connector A into each end of the profiles L16A & L18A & L18B & L18C, and then mark the distance from each end about 20/30MM. 20MM Lastly, secure them with screws Z01 30MM using the powered screw-driver.
- Page 13 PART 12.2M Insert the Rubber J11 between Glass panels and Profiles as shown below (Not Provided for PC panels).
- Page 14 10mm Expansion Screw / Concrete Ground It is essential the dimensions a + b are the same to ensure the base is square. Support at the corners only is inadequate.
- Page 15 PART M8X60 2949MM (outer) 2899MM (inner) Expansion bolts assembly Door 10mm Door * This shows a layout for W05's positions where it is placed in the middle of the panel for each section.
- Page 16 PART L08A L01A L08A M5X12 L08A L08A L08A Insert the J02 into L08A as shown. L08A L01A L01A L01A L01A L01A Install L01A onto each L08A through the J02 using the screw S01.
- Page 17 PART L07A M5X12 Insert the joint J01 into L01A from the top, then connect each L07A ; Lastly, secure all parts using the screw S01. * Please ensure all parts are in correct angle before tightening up screw S01. L07A L07A L07A L07A...
- Page 18 PART Back Wall Assembly L03A L03A L03A L03A M5X12 Insert the first Panel Y5 into the channel of L01A, and then install L03A. Secure them with screw S01. Do the same for another 2 sections. Lastly, slide the last Panel Y5 from the top into the channels of L01A &...
- Page 19 PART Side Wall Assembly L03A M5X12 L03A L03A L07A Repeat the sequence as per L03A the Back Wall Assembly, Y6 is the last panel to slide in. L08A L03A The last panel...
- Page 20 PART Front Wall Assembly L04A L04B L05B M5X12 L04B L04A L07A Do the same as Back Wall Assembly L04A/L04B to install L04A & L04B and Y5 using the screw S01. L04A/L04B Then install L05B onto L01A & L04A & L04B using the screw S01. L08A L05B L05B...
- Page 21 PART L05A M5X12 M4.2X16 L05A L05A L 01A L 01A L05A L05A L05A Use the screw S01 to secure each end of 3 x L05A onto each L01A, and then use Z01 to install the rest part of L05A onto each L03A with the powered screw-driver.
- Page 22 PART L02E M4.2X16 L02E L02E Keep L05A flush to L02E. L02E L05A Insert another end of Y6 into the channel of each L02E, and then align L02E & L05A, use Z01 to secure them with the powered screw-driver. *Please ensure L02E and L05A are flush & aligned.
- Page 23 PART Side Vent M5X12 M4.2X16 L02E 1. Use S01 to secure bracket W03 onto the vent profile L11 as shown in FIG. 1; 2. Mark on L03A through the holes of bracket W03 at distance 643MM from L02E as shown in FIG.2; Do the same on the other end; 3.
- Page 24 PART Insert the Rubber J11 between Glass panels and Profiles as shown below (Not Provided for PC panels).
- Page 25 PART L23A Roof Assembly L23A L23A L23A M5X12 L23A Use the bracket W23 to connect 4 X L23A as shown, L23A then secure them with S01 bolts. L23A L07A Outside View Inside View L23A Use the bracket W21 to connect the roof profiles L23A and the eave profiles L07A, then secure them with S01.
- Page 26 PART L03D M5X12 L03D Install 4 x L03D on the roof as shown, and secure them with S01. L03D L03D Twist M01 into the bolt on the cap bracket W24, and then insert the bolt on W24 through W23. Adjust the position of the top M01 to allow enough space for the bottom M01 to tighten it up.
- Page 27 PART PART 46.2M L03B L03C L03C L03B L09A M5X12 *Please ensure the orientation of Y1 & Y2 is correct when panel assembly. The longer edge, 826.8MM, should be L03B/ L03C placed vertically as shown. L03B/L03C Use the bracket W22 to connect L03B & L03C, and secure them with S01.
- Page 28 Slide Y3 & Y4 in. Insert the Rubber J11 between Glass panels and Profiles as shown below (Not Provided for PC panels).
- Page 29 Gutter Assembly Install the gutter profile L09A once all panels are completely inserted. Then tap L09A gently into the channel of L07A with a rubber mallet. Do the same on the other side. * Ensure none of the glazing panels move or slide back during this process.
- Page 30 PART Bracing Assembly L05C L05E L05E L05F L05F M4.2X16 M5X12 L05C L05E Use S01 to secure each roof brace L05C onto L03B & L03C at each end, L03D L03B/ L03C then use Z01 to secure them onto L03D in the middle. L03B/ L03C L05C L05C...
- Page 31 PART Door Assembly M4.2X16 M4.2X16 M5X12 Left Door Right Door Use 3 x Z01 to secure L24 onto L07A. Use S02 to install 4 x Door Hinges L25 onto each door profile and L04A & L04B, then secure them with Z03 as shown below. 6 x S02 L04A 2 x Z03...
- Page 32 PART Downpipe Assembly M4.2X16 Use Silicone to avoid leaking Drill a hole in L01A, roughly 3MM diameter (not provided). 700MM distance from the bottom. Use Z01 to secure the bracket J08 and then clip the downpipe J06 into the bracket J08.
