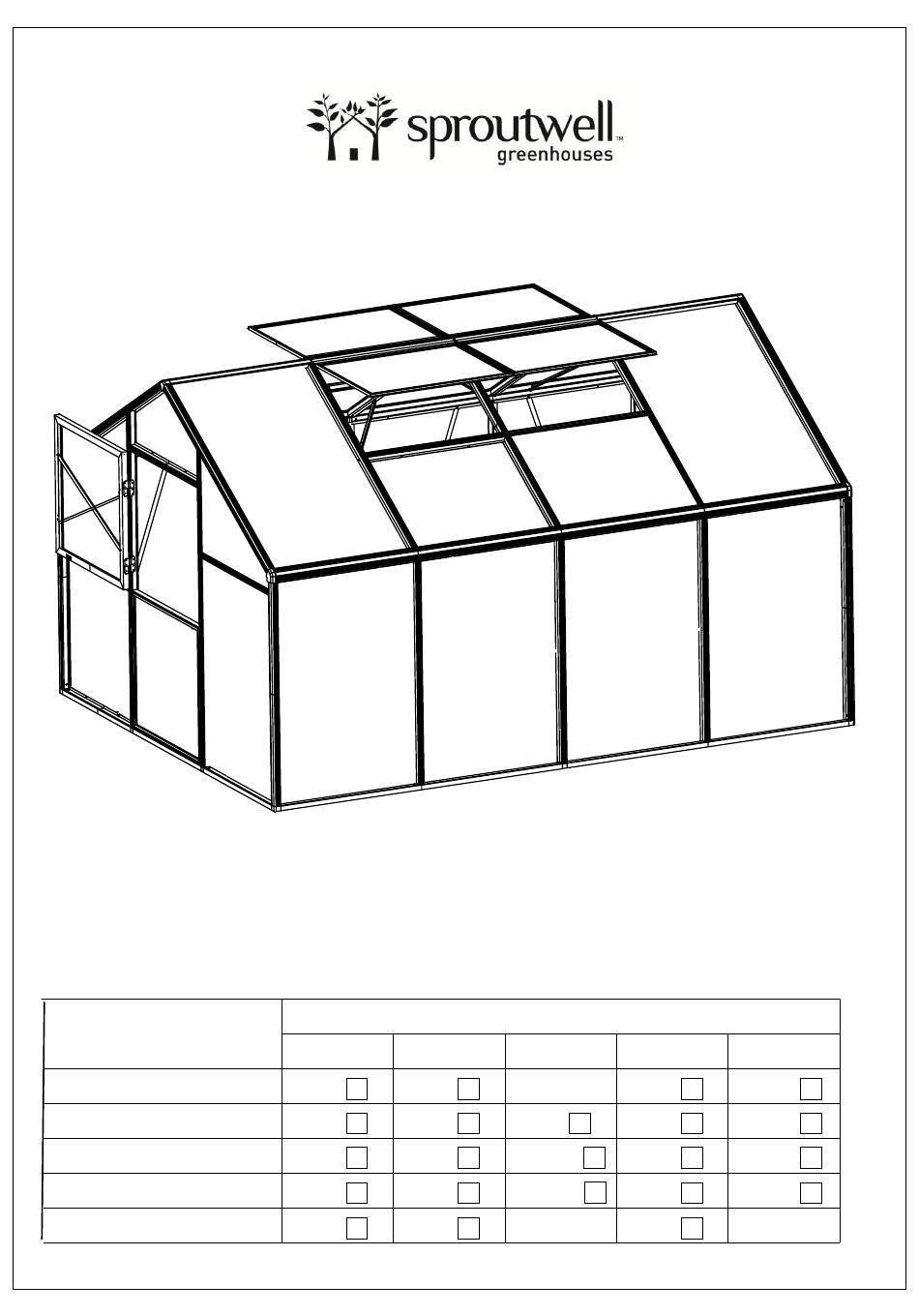

MODEL:GRANGE - 3
PRODUCT SIZE(400x300x243CM): PLEASE REFER TO PACKING LIST BELOW
PLEASE READ CAREFULLY BEFORE ASSEMBLY
Item No. & Packing List
Product Size
(L*W*H)
400*300*243CM
600*300*243CM
800*300*243CM
1000*306*243CM
etc.
Assembly Instructions
ALU. No. 1 ALU. No. 2 ALU. No. 3
1CTN
1CTN
1CTN
1CTN
1CTN
1CTN
1CTN
1CTN
1CTN
1CTN
Packing List
PC No. 1
1CTN
1CTN
1CTN
2CTNS
1CTN
3CTNS
1CTN
etc.
1CTN
PC No. 2
2CTNS
3CTNS
4CTNS
5CTNS
etc.
Advertisement
Related Manuals for Sproutwell GRANGE-3
Summary of Contents for Sproutwell GRANGE-3
- Page 1 Assembly Instructions MODEL:GRANGE - 3 PRODUCT SIZE(400x300x243CM): PLEASE REFER TO PACKING LIST BELOW PLEASE READ CAREFULLY BEFORE ASSEMBLY Item No. & Packing List Packing List Product Size (L*W*H) ALU. No. 1 ALU. No. 2 ALU. No. 3 PC No. 2 PC No.
- Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that the product will be assembled by at least two people. 2. Some parts have sharp edges. Please be careful when handling components. Always wear gloves, shoes and safety goggles during assembly. 3.
- Page 3 5. A steel base is not required as the aluminium base frame is fixed to the necessary concrete footings with the expansion bolts provided, alternatively you can easily secure it to a timber base with timber screws(not provided). Expansion screw / Concrete ground 6.
- Page 4 POLYCARBONATE ORIENTATION PLEASE NOTE: We have recently changed our polycarbonate film. All panels must be installed with the white film facing inside and the clear film with writing facing the sun. If you have any questions please feel free to contact us.
- Page 5 ALU. Box No.1 Front Assembly Door Assembly PART PART PART PART QTY. QTY. QTY. QTY. L18A L01A L01B L18B M8X60 L18C L01C J03R/L L16A L01D L16B L03E L16C L03F J02R/L L05G L04A L04B M6X12 L05A M6X12 L08A Ø4X16D Ø5X15 Back Assembly PART PART PART...
- Page 6 ALU. Box No.2 2X2 Sections Assembly Middle Section Assembly PART PART PART QTY. QTY. QTY. L02A L03A L02B L03B M6X12 L05B L05E M6X20 L05C L05F L05D Ø4X16D Ø5X30 Ø4X10 L08B M6X12 M8X60 L15A W08A 4 M5X35 L04E...
- Page 7 ALU. Box No.3 1X2 Sections Assembly Middle Section Assembly PART PART PART QTY. QTY. QTY. L02A L03A L02B L03B M6X12 L05B L05E M6X20 L05C L05F L05D Ø4X16D Ø5X30 Ø4X10 L08B M6X12 M8X60 L15A W08A M5X35 L04E...
- Page 8 PC Box No. 1 Back Assembly Door Assembly Front Assembly PART PART PART QTY. QTY. QTY. PC Box No.1 PC Box No. 2 1X2 Sections Assembly PART QTY. PC Box No.2...
- Page 9 PART PART PART PART QTY. QTY. QTY. QTY. L01A L01B M8X60 L01C J03R/L L01D L03E L03F J02R/L L04A L04B M6X12 L05A L08A Ø4X16D Overview of Front Assembly L01B L01C L04A L04B L04B L03E L01A L01D L03F L05A L05A L08A L08A L08A...
- Page 10 PART PART PART PART QTY. QTY. QTY. QTY. L01A Ø4X16D L01B L01C M8X60 L03C J03R/L L03D L04B L05A J02R/L L05B M6X12 L08A Overview of Back Assembly L01B L01C L04B L04B L04B L05A L05A L01A L03C L05B L03D L01A L08A L08A L08A...
- Page 11 PART PART PART PART QTY. QTY. QTY. QTY. L02A L03A L02B L03B M6X12 L05B L05E M6X20 L05C L05F L05D Ø4X16D Ø5X30 Ø4X10 L08B M6X12 M8X60 L15A W08A M5X35 L04E Overview of 2x2 Sections Assembly and Middle Section Assembly...
- Page 12 L05B L05B L02A L05C L02A L08B L08B L05D L15A L15A L02B L02B L05D L05E L03B L04E L03B L04E L05F L05B L02A L05F L05C L03A L05C L02A L05B L03A L08B L08B * This page shows how one GRANGE-3 is assembled, 400x300x243CM.
- Page 13 PART PART PART PART QTY. QTY. QTY. QTY. L02A L03A L02B L03B M6X12 L05B L05E M6X20 L05C L05F L05D Ø4X16D Ø5X30 Ø4X10 L08B M6X12 M8X60 L15A W08A M5X35 L04E Overview of Middle Section Assembly L05D L15A L15A L02B L02B L05D L05E L03B L04E...
- Page 14 Expansion screw / Concrete ground * It is crucial the a + b dimensions are the same to ensure the base is square. Support at the corners only is not adequate.
- Page 15 GRANGE-3 (4 x 3M) Back Assembly Front Assemby 4 Section Assemby Item No. etc. 4 x 3M 6 x 3M 8 x 3M 10 x 3M 12 x 3M 14 x 3M 16 x 3M 18 x 3M Dimensions (mm) 3059.6...
- Page 16 GRANGE-3 + 2 Section Assembly (6 x 3M) Front Assembly Back Assembly 2 Section Assembly GRANGE-3 * The basic model, GRANGE-3, can be easily extended by adding a '1x2 Section Assembly' each time for a longer size.
- Page 17 Front Back 1x2 Section Assembly GRANGE-3 * This shows a layout for W05's positions where it is placed in the middle of PC panel for each section.
- Page 18 PART QTY. Door 1 Assembly L18A L18B L18C L18C L16A L16B L16C L18A L05G L16C M6X12 L05G L05G L18B Ø5X15 L18C L18C L16C L18A L16C L18A L18B L18B...
- Page 19 Door 2 Assembly L18B L18A L16A L05G L05G L16B L18B L18B L16A L18A L16A L18A L16B L16B...
- Page 20 PART QTY. Roof Vent Assembly L15A L15A M6X20 Ø4X16D Ø4X10...
- Page 21 L08A L08A L08A L08B L08B L08B L08B L08A L08A L08A J03R/L J03R/L L08A&B L08B L08A L08B L08A L08A&B J03R/L L08B L08A J03R/L L08A L08B L08B C L08B J03R/L Assemble all W05 followed by previous Page 16 after each base profile is connected.
- Page 22 Ensure orientation of the L07 profile is correct as per detail. L03C L03D L01A CORRECT WRONG L01A L03A L03A L03C L03D L01A L01A D&E L03A L01A L03A...
- Page 23 Slide 2xS01 into each L04B and tighten them at each end. 2*S01 L04B L04B L04B L04B L04B L05A L05B L05A L04B L05B L05A L03C L05A L08A L04B L04B...
- Page 24 L03B L03B L05C L05B L05C L05B L02A L02A S01x3pcs L02A L02A L08B L03A L05C L05C L05B L05B L08B L05B...
- Page 25 L05E L05F L05F L05F L05E L03K L05F L05F L05E L05F...
- Page 26 CORRECT WRONG Ensure orientation of the L07 profile is correct as L01D per detail. L01A L03B L01D&A D&E A&B L01D&A L03A L05C L05B L05B L05C L02A L02A S01x3pcs L02A L03A L05C L02A L05B L05B L08B L08B...
- Page 27 L03F L03E L03E L03F...
- Page 28 L04A L04B L04B Slide 2xS01 into each L04A & B and tighten them at each end. L03E&F L04A 2*S01 L04A L03E&F L04B L04B 2*S01 L04B L03A&D...
- Page 29 L05A L05A L05A L05A...
- Page 30 Note: please insert upper roof supports but do not lock in place until you have aligned the polycarbonate inserts. L01B L01C L01C L01B L01B L01C L01B L01C...
- Page 31 L01C L01B...
- Page 32 L02B L02B L02B L02B Slide 4xS01 into each L02B and tighten them at each end. L02B L02B 4*S01 L02B L02B...
- Page 33 L05D L04E L04E L05D L05D L04E L04E L05D Pay attention to the cut edge of L04E which should be fixed, facing up. L04E L04E S01x6pcs L04E L04E L05D L05D...
- Page 34 * The roof vents should be lifted through Roof Vent Assembly x 4PCS the vent opening from the inside of the greenhouse, then lowered into position from above the greenhouse. So the holes of the L15A line up with the ridge holes. Then the vents can be bolted in place firmly using the S02 and the nuts.
- Page 35 Insert all Y7 & Y9 panels into each roof of greenhouse. Note: If it is difficult sliding any panels in the channels, using soapy water or olive oil in the channels can reduce the friction. Insert all Y6 panels into each side of greenhouse.
- Page 36 When installing the J06 and the second section of gutter, it can help if you have 2 people, one guiding the gutter into the J06 and the other gently tapping the end of the gutter with a rubber mallet. It can help to install the J06 into one end of the gutter before hand.
- Page 37 Once the L09 is in place. A small bead of silicon suitable for polycarbonate can assist in preventing leaks. To install the doors, simply slide the hinge pins on the doors into the corresponding hinge sleeves on the greenhouse. The latch shown in image 1 joins the two sections of the doors together. To make minor height adjustments you can remove or add the spacers provided on the pin section of the hinge.
