- Page 1 MOVER SPOT 150 CKU-5052 USER MANUAL...
-
Page 2: Table Of Contents
TROUBLESHOOTING ............................ 19 TECHNICAL INFORMATION .......................... 20 Please read these instructions carefully before use. Operating this fixture according to these instructions is important to avoid any possible damage or accidents caused by misuse. Mover Spot 150 User Manual – V1... -
Page 3: Introduction
Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –5pm PST at (818) 578-4030. -
Page 4: Product Overview

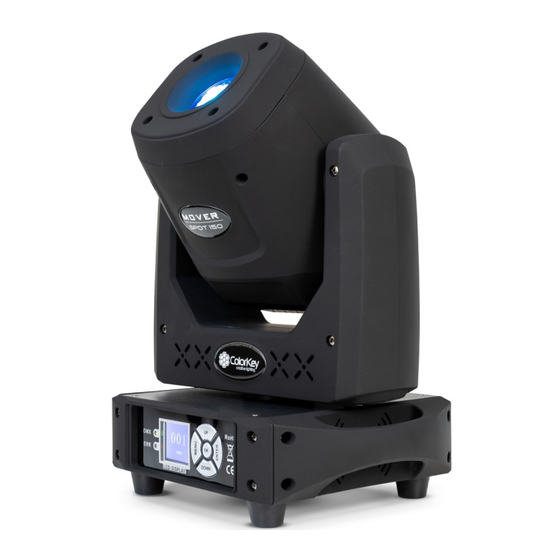

Product Overview Front SPOT 150 1. Moving Head 5. Error LED Indicator 2. Yoke 6. LCD Display 3. Carrying Handle 7. Menu Guide Buttons 4. DMX LED Indicator Mover Spot 150 User Manual – V1... - Page 5 Back SPOT 150 1. DMX Out 4. Power Out 2. DMX In 5. Feet for Floor Mounting 3. Power In Mover Spot 150 User Manual – V1...
-
Page 6: Mounting
Power Linking Power Linking Mover Spot 150 provides power linking via the outlet located on the back of the product. Up to 4 Mover Spot 150 units can be power linked. Powering your product • Always Connect the product to a protected circuit (a circuit breaker or fuse). -
Page 7: Display Operation
ENTER: Return to previous menu option Scroll through menu selection or parameter increase DOWN: Scroll through menu selection or parameter decrease DMX: Lit when receiving DMX signal ERR: Lit when error has occurred Mover Spot 150 User Manual – V1... -
Page 8: Menu Guide
Pan fine tuning 0-255 Tilt 0-255 Tilt fine tuning 0-255 Manual Mode Pan/tilt speed 0-255 Color 0-255 Gobo 1 0-255 Gobo 2 0-255 Gobo 2 rotation 0-255 Focus 0-255 Prism /Prism Rotation 0-255 Mover Spot 150 User Manual – V1... - Page 9 Gobo wheel offset （-128） - （+127） Focus offset （-128） - （+127） Gogo wheel 2 offset （-128） - （+127） Language change Yes (Chinese & English) LCD display reverse Advanced- Time reset settings Temperature 0-120 protection Mover Spot 150 User Manual – V1...
-
Page 10: Gobo And Color Channel Assignments
Create textures and patterns like never before by layering gobos, colors, and prism effect for a truly one-of-a-kind lighting experience. Metal Gobos (Gobo 1) Glass Gobos (Gobo 2) - Rotating Color Selections Mover Spot 150 User Manual – V1... -
Page 11: Dmx Values
Color 2 + Color 3 Color Selection 30-34 Color 3 35-39 Color 3 + Color4 40-44 Color 4 45-49 Color 4 + Color 5 50-54 Color 5 55-59 Color 5 + Color 6 Mover Spot 150 User Manual – V1... - Page 12 Metal Gobo Wheel 90-99 Gobo 2 shake 100-109 Gobo 3 shake 110-119 Gobo 4 shake 120-129 Gobo 5 shake 130-139 Gobo 6 shake 140-149 Gobo 7 shake CCW Gobo cycling 150-202 from fast to slow Mover Spot 150 User Manual – V1...
- Page 13 100-109 Glass Gobo 4 shake 110-119 Glass Gobo 5 shake 120-129 Glass Gobo 6 shake CCW Glass Gobo cycling 130-192 from fast to slow CW Glass Gobo cycling from 193-255 slow to fast Mover Spot 150 User Manual – V1...
- Page 14 6-55 Show 1 56-105 Show 2 Macro function (Auto 106-155 Show 3 Show) 156-205 Show 4 206-255 Random Show 0-25 No function 26-76 Motor reset Reset 77-127 Pan/tilt reset 128-255 Full Fixture Reset Mover Spot 150 User Manual – V1...
-
Page 15: Stand Alone Settings
Stand Alone Settings To use your Mover Spot 150 without a DMX Controller, use one of the various standalone modes below. *Please note, we do not recommend using products in standalone mode that are connected to a DMX string and controller. Standalone mode may transmit DMX signals that could interfere with DMX signals from the controller. - Page 16 Manual Mode To operate the Mover Spot 150 manually through the menu, do the following: 1. Press (Menu) 2. Press (OK) to enter and navigate selections 3. Use (Up or Down) to select Test 4. Press (Ok) 5. Use (Up or Down) to select from Pan, Tilt, Gobo, Gobo Rotate, Prism, Focus, Dimmer and Strobe and other selections 6.
- Page 17 Swap Pan and Tilt To set swap the Pan and Tilt orientation on the Mover Spot 150, do the following: 1. Press (Menu) 2. Press (OK) 3 times to enter and navigate Setting selections 3. Use (Up or Down) to select SwapPanTilt 4.
-
Page 18: Passcode Protected Adjustments
Passcode Protected Adjustments Mover Spot 150 has a passcode protected mode that allows the user to calibrate and adjust several of the products operating parameters. In order to access this mode, do the following: 1. Press (Menu) 2. Press (OK) to enter and navigate selections 3. -
Page 19: Maintenance
5. Apply the solution directly to a soft, lint free cotton cloth or a lens cleaning tissue. 6. Softly drag any dirt or grime to the outside of the transparent surface. 7. Gently polish the transparent surfaces until they are free of haze and lint. Troubleshooting Problems Solutions Mover Spot 150 User Manual – V1... -
Page 20: Technical Information
Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com. Mover Spot 150 User Manual – V1...
