Appendix B Jumper Setting and Con-
B.1 Jumpers and connectors
B.1.1 Setting jumpers
You can configure your Point of Care Terminal to match the needs of
your application by setting jumpers. A jumper is the simplest kind of
electrical switch. It consists of two metal pins and a small metal clip
(often protected by a plastic cover) that slides over the pins to connect
them. To "close" a jumper, you connect the pins with the clip.
To "open" a jumper you remove the clip. Sometimes a jumper will have
three pins, labeled 1, 2, and 3. In this case, you would connect either pins
1 and 2 or pins 2 and 3.

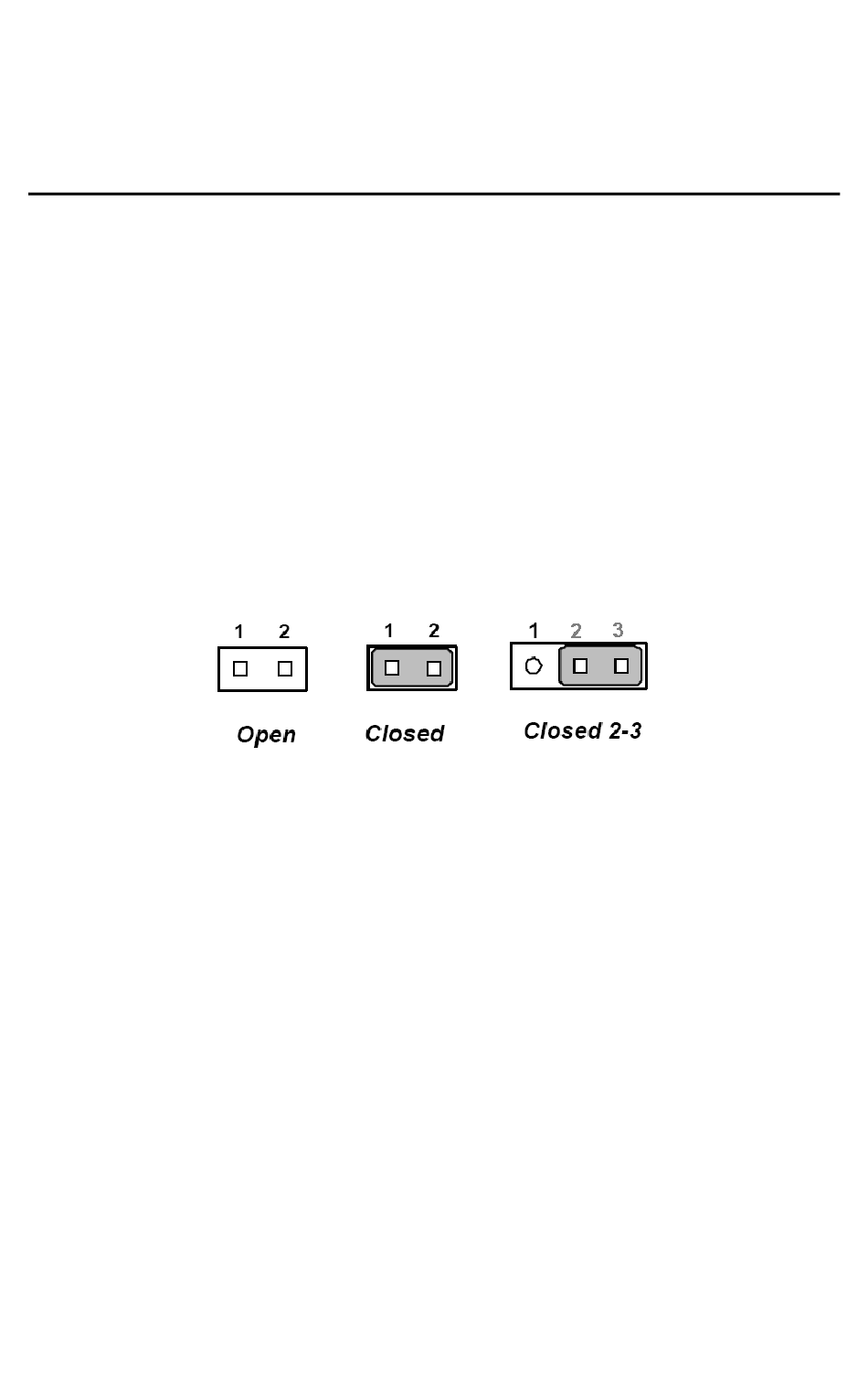

The jumper settings are schematically depicted in this manual as follows:
A pair of needle-nose pliers may be helpful when working with jumpers.
If you have any doubts about the best hardware configuration for your
application, contact your local distributor or sales representative before
you make any changes.
B.1.2 Jumpers and switches
The motherboard of the Point of Care Terminal has a number of jumpers
that allow you to configure your system to suit your applications.
The table below lists the function of each of the board's jumpers.
POC-155 User Manual
nectors
Figure B.1: Jumper Setting
