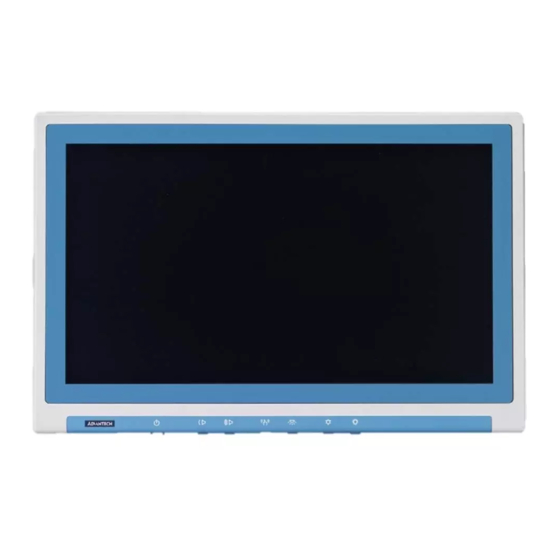

- Page 1 User Manual POC-WP21 Series Point-of-Care Terminal with Intel® Core™ i7/i5/i3 and Celeron Processor, and a 21.5" TFT LCD...
-
Page 2: Safety Instructions
Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them. Otherwise the correct functioning of the device may be compromised. - Page 3 Discard used batteries according to the manufacturer’s instructions. Caution! The battery charging indicator is not included with this device. It will be added to the finished system assembly and be shown with the com- pleted system. POC-WP21 Series User Manual...
- Page 4 Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech Digital Healthcare cannot war- rant or endorse the safe performance of third-party replacement parts for use with our medical device.
- Page 5 IEC 60878 and ISO 3864-B.3.6 : Warning: dangerous voltage ISO 7000-0434 : Caution, consult ACCOMPANYING DOCUMENTS. ISO 7000-1641 : Follow operating instructions or consult instructions for use. IEC 60417 -5009 : STAND-BY. IEC 60417-5031 : Direct current. IEC 60417-5021 : Equipotentiality. POC-WP21 Series User Manual...
- Page 6 Consult the dealer or an experienced radio/TV technician for help Warning! Any changes or modifications made to the equipment which are not expressly approved by the relevant standard’s authority could void your authority to operate the equipment. POC-WP21 Series User Manual...
- Page 7 Otherwise the correct functioning of the device may be compromised. Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: ...
- Page 8 POC-WP21 Series User Manual viii...
-
Page 9: Table Of Contents
Introduction ....................2 Specifications .................... 2 Dimensions ....................4 Figure 1.1 Dimensions of the POC-WP21 Series......4 Figure 1.2 VESA Mounting of the POC-WP21 Series ....4 Figure 1.3 POC-WP21 Series Front Panel ........5 1.3.1 Optional Modules ................5 1.3.2... - Page 10 POC-WP21 Series User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information... -
Page 12: Introduction
10/ 100/1000 PCI-E Ethernet controllers, and one LAN port. It supports the Intel AMT9.5 function, has dual COM ports, quad USB 2.0 ports and a 24-bit stereo audio controller. With an optional 2.5" SATA drive, the POC-WP21 series is a user- friendly computer. For system integrators, this highly integrated multimedia system lets you easily build a Point-of-Care Terminal into your applications. - Page 13 2.5" SATA HDD(65 degree)/SSD, mini-PCIe Storage mSATA WLAN Dual-band (2.4/5GHz) 802.11n 2Tx/2Rx WiFi Optional Configuration Bluetooth 13.56MHz, ISO-15693, ISO-14443A, ISO- RFID 14443B PCIe Card Dual LAN, Firewire, RS-232 21.6" Flat Resistive, AR Touch Panel 21.6'' PCTSP-GG, AR POC-WP21 Series User Manual...
-
Page 14: Dimensions
Figure 1.1 Dimensions of the POC-WP21 series VESA Mounting: 75 x 75 mm; 100x100 mm Please use M4x12L (Maximum) screw. Figure 1.2 VESA Mounting of the POC-WP21 series Warning! Use suitable mounting apparatus to avoid risk of injury. POC-WP21 Series User Manual... -
Page 15: Optional Modules
Figure 1.3 POC-WP21 series Front Panel 1.3.1 Optional Modules Memory: Up to 32GB DDR4 SODIMM x 2 2.5" SATA HDD(65 degree)/SSD, mini-PCIe mSATA Touchscreen: Analog resistive / Projected Capacitive Dual-band (2.4/5GHz) 802.11n 2Tx/2Rx WiFi Blutooth 4.0 ... - Page 16 POC-WP21 Series User Manual...
-
Page 17: Chapter 2 System Setup
Chapter System Setup... -
Page 18: A Quick Tour Of The Poc-Wp21 Series
A Quick Tour of the POC-WP21 Series Before you start to set up the POC-WP21 series, take a moment to become familiar with the locations and purposes of the controls, drives, connections and ports, which are illustrated in the figures below. -
Page 19: Figure 2.2 Rear View Of The Point-Of-Care Terminal
Figure 2.2 Rear view of the Point-of-Care Terminal Figure 2.3 Rear view of Multi I/O ports Note! Equipotential terminals need a link to hospital ground/earth system before the system boots to protect operator and system. POC-WP21 Series User Manual... -
Page 20: Installation Procedures
Installation Procedures 2.2.1 Connecting the Power Cord The POC-WP21 series can only be powered by AC in. Be sure to always handle the power cords by holding the plug ends only. Follow these procedures in order: Connect the female end of the power cord to the system. -
Page 21: Running The Bios Setup Program
Grounding cable plug with POC-WP21 Series Equipotential Terminal Running the BIOS Setup Program Your POC-WP21 series was probably set up and configured by your dealer prior to delivery. You may still find it necessary to use the BIOS (Basic Input-Output System) setup program to change system configuration information, such as the current date and time or your type of hard drive. -
Page 22: Installing The Drivers
Power LED ON but no DC power output. AC power in and all switches ON, but system doesn't power on. Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you need additional assistance. Please have the following information ready before you call: ... - Page 23 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The model POC-WP21 series is intended for use in an electromagnetic environment as specified below. The customer or the user of the POC-WP21 series should assure that it is used in such an environment.
- Page 24 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity POC-WP21 series is intended for use in the electromagnetic environment specified below. The customer or the user of the model POC-WP21 series should assure that it is used in such an environment. IEC 60601...
- Page 25 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The model POC-WP21 series is intended for use in the electromagnetic environment speci- fied below. The customer or the user of the model POC-WP21 series should assure that it is used in such an environment.
- Page 26 POC-WP21 Series User Manual...
-
Page 27: Chapter 3 Operation And Safety Information
Chapter Operation and Safety Information... -
Page 28: General Safety Guide
Thermal The vent hole of the POC-WP21 series rear cover functions as a cooling air flow inlet and outlet. These air inlets and outlets transfer heat from inside the computer to the cooler air outside. Do not block these holes/vents with any soft material. -
Page 29: Disconnect The Power
Never place anything on system case before turning off the computer. Never turn on your computer unless all of its internal and external parts are in place. Operating the computer when it is open or missing parts can be danger- ous and can damage it. POC-WP21 Series User Manual... - Page 30 POC-WP21 Series User Manual...
-
Page 31: Appendix A Install Vesa Mounting
Appendix Install VESA Mounting... -
Page 32: Install Vesa Mounting
PC into their system. Never use mounting brackets except as provided by Advantech to prevent unreliable mounting of the POC-WP21 series. VESA mount installation should be carried out by a professional technician; please contact a service technician or your retailer if you need this service. - Page 33 POC-WP21 Series User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
