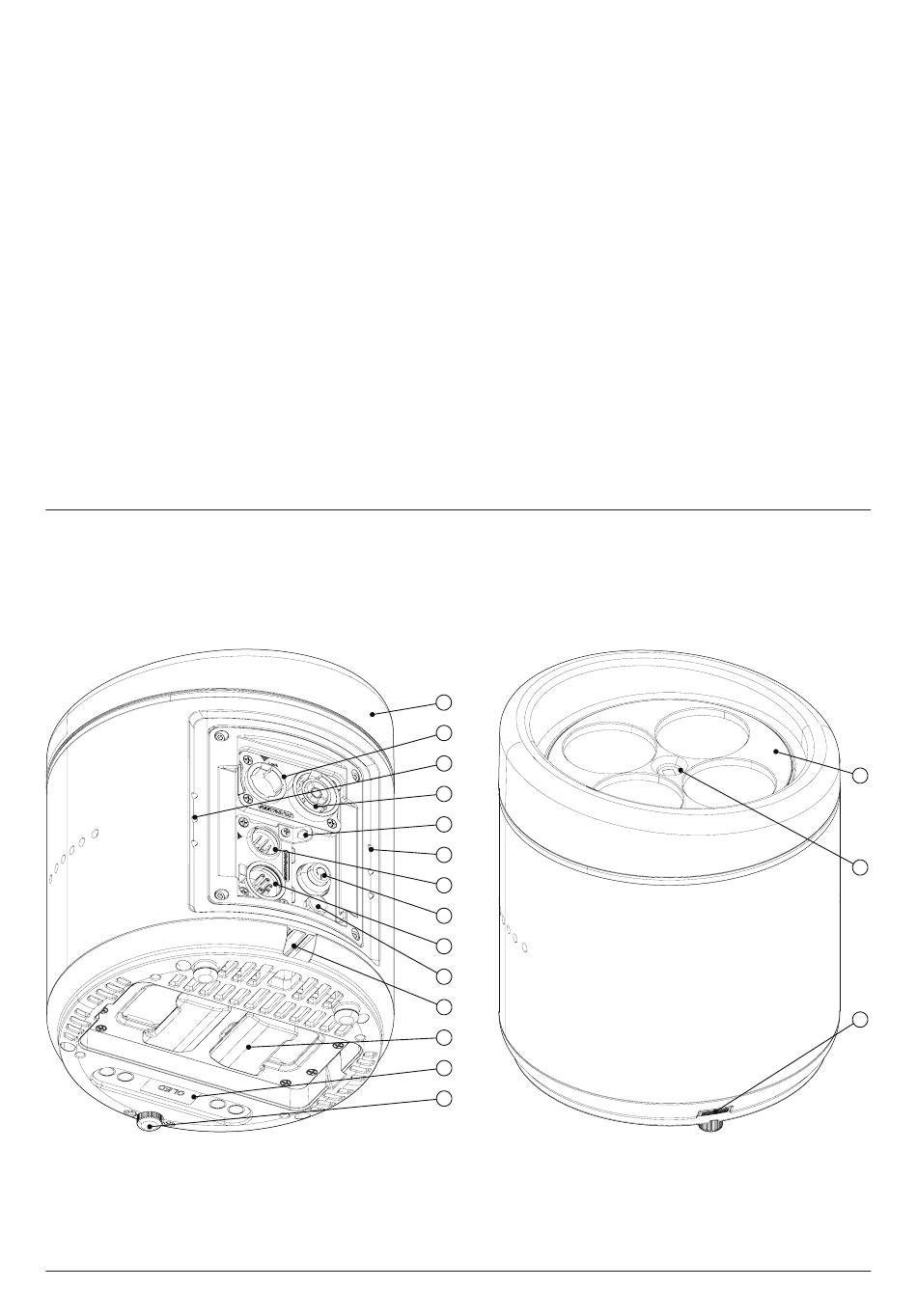

6 - PRODUCT OVERVIEW

1. HALF TOP HAT (included).
2. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
3. HOLES for mounting accessories.
4. POWER OUT: power output for connection of multiple units in series.
5. SAFETY EYE to attach safety cable of the cage.
6. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
7. ON / OFF SWITCH.
8. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
9. GORE VALVE.
10. SAFETY EYE to attach safety cable for connector cover.
11. BATTERY (SBPG2BAT, included).
12. USER INTERFACE with display and buttons for access to the control panel functions.
13. FOOT for tilt the unit.
14. FILTER FRAME (included).
15. IR SENSOR.
16. BUTTON to tilt the unit.
NOTE: remove the connector cover to access the connectors.
10
1
2
3
4
5
3
6
7
8
9
10
11
12
13
PROLIGHTS - SmartBat PlusG2
14
15
16
Fig. 03
