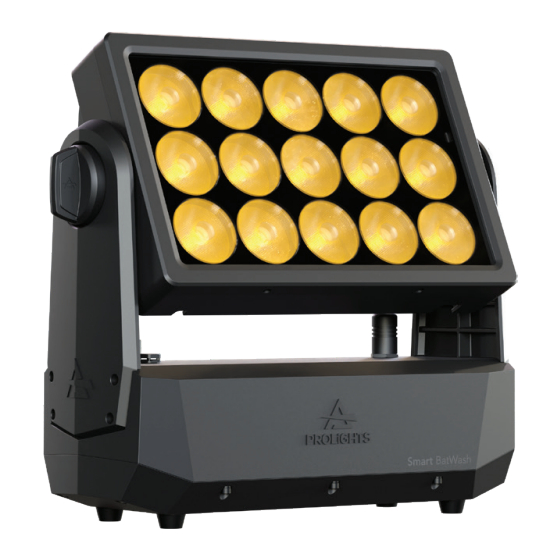

- Page 1 SmartBat Wash 15x20W LED Wash Light, IP65 rated, with an RGB + Warm White LED source, wirelessly controlled with battery or wired with mains power USER MANUAL English version REV.01-10/22...
- Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
-
Page 3: Table Of Contents
LIGHT DIFFUSION FILTER (CODE SBWFILTER25/40/1060 - OPTIONAL) ..... 33 BARN DOOR (CODE SBWBD - OPTIONAL) ..............34 15 - TEST OF IP65 RATING 16 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............36 VISUAL CHECK OF PRODUCT HOUSING ..............36 TROUBLESHOOTING ..................... 37 PROLIGHTS - SmartBat Wash... -
Page 4: Safety Information
Overview • Only authorised technicians may service the battery. • Use only Prolights approved batteries in your Prolights products. • Do not leave the projector unused for extended periods of time in storage. • Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage. - Page 5 Charging • Refer to your product’s user manual and/or online help for detailed information about charging its battery. The latest version of your Prolights product user manual is avail- able at www.prolights.it. • Avoid charging if the projector has any damage, malfunction, tampering or signs of moisture inside.
- Page 6 • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
- Page 7 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
- Page 8 6. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - SmartBat Wash...
-
Page 9: Packaging
• UPBOX1UP5: firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT. 2 - TECHNICAL DRAWING Ø211 mm [8.3 in] 381 mm 149 mm 193 mm [15.0 in] [5.9 in] [7.6 in] Weight: 9,8 kg - 21,60 lbs Fig. 01 PROLIGHTS - SmartBat Wash... -
Page 10: Installation
Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. C6002 clamp RSR0630A/B Steel security cable OS27 Quick-lock 140,14 mm 5,51 in Fig. 02 PROLIGHTS - SmartBat Wash... -
Page 11: Connection To The Mains Supply
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz). • The product is then ready for its operations and can be controlled through the available input sig- nals on board. • To disconnect power from the product, disconnect the Mains from the socket. PROLIGHTS - SmartBat Wash... -
Page 12: Product Overview
12. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. 13. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C. Fig. 03 PROLIGHTS - SmartBat Wash... -
Page 13: Dmx Connection
... . DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX IN DMX OUT DMX512 Controller Fig. 05 - Example 25 DMX channels configuration PROLIGHTS - SmartBat Wash... -
Page 14: Construction Of The Dmx Termination
• The transmitter scans for all unlinked receivers for a period of about 5 seconds. • If the connection fails, check the position of the receiver. • The wireless icon on the receiver display indicates the received signal strength. PROLIGHTS - SmartBat Wash... -
Page 15: In To Wdmx
• The wireless icon on the receiver display indicates the received signal strength. WDMX TO DMX (RX) This function enable or disable the retransmission of the wireless DMX signal received throught the DMX port on the receiver side. PROLIGHTS - SmartBat Wash... -
Page 16: Control Panel
Browse upwards through the menu list and increases the numeric value displayed. Browse downwards through the menu list and decreases the numeric value displayed. Used to confirm the current menu or confirm the current function value or option within a menu. PROLIGHTS - SmartBat Wash... -
Page 17: Menu Structure
2700K PRESETS 2800K 3200K 3500K 4000K 4500K 5000K 5600K 6000K 6500K 7000K 8000K 9000K 10000K MANUAL COLORS GREEN BLUE WHITE FIXED COLORS RGBW COLOR See Color MACRO Macro page WHITE 2700K PRESETS 2800K 3200K 3500K 4000K PROLIGHTS - SmartBat Wash... - Page 18 ADDRESS ADVANCED WHITE CALIBRATION STUDIO <125-255> GREEN <125-255> BLUE <125-255> WARM WHITE <125-255> MANUAL <0-255> GREEN <0-255> BLUE <0-255> WARM WHITE <0-255> CALIBRATED DIMMER LINEAR Choose dimmer curve. CURVE S-CURVE SQUARE LAW INVERSE SQUARE PROLIGHTS - SmartBat Wash...
- Page 19 AC POWER <300> ON CYCLE MAINTENANCE ELAPSED TIME TIME ALERT PERIOD 10 - 300 CONSUMPTION, POWER VOLTAGE, CONSUMPTION CURRENT TEMPERATURE BATTERY <300> CYCLE BATTERY <100%> STATE ESTIMATED BATTER 3h 5m LIFE WIRELESS QUALITY CHANNEL VALUE ERROR MESSAGE PROLIGHTS - SmartBat Wash...
- Page 20 SAME STRUCTURE OF STATIC IN STAND ALONE STATIC FIXED COLORS Static mode for Standalone will DIMMER keep the selected Color on to <000-255> the selected dimmer level RGBW COLOR SEE COLOR DIMMER MACRO MACRO PAGE <000-255> PROLIGHTS - SmartBat Wash...
-
Page 21: Shortcut
Description Directly flip display without enter UP + DOWN after power on Flip Display inside menu Clear all the infor, reset counter MENU + ENTER then power on CLEAR ALL and set all to default value PROLIGHTS - SmartBat Wash... -
Page 22: Rdm Functions
DMX512 SLOT_INFO 0x0120 Setup DMX512 SLOT_DESCRIPTION 0x0121 Setup DMX512 DEFAULT_SLOT_VALUE 0x0122 Setup DMX512 DMX_BLOCK_ADDRESS 0x0140 Setup DMX512 DMX_FAIL_MODE 0x0141 Setup DMX512 DMX_STARTUP_MODE 0x0142 Setup Dimmer DIMMER_INFO 0x0340 Settings Dimmer MINIMUM_LEVEL 0x0341 Settings Dimmer MAXIMUM_LEVEL 0x0342 Settings PROLIGHTS - SmartBat Wash... - Page 23 CAPTURE_PRESET Control 0x1030 PRESET_PLAYBACK Control 0x1031 IDENTIFY_MODE Control 0x1040 PRESET_INFO Control 0x1041 PRESET_STATUS Control 0x1042 POWER_ON_SELF_TEST Control 0x1044 0: HOLD Manufacturer DMX FAULT 1: BLCK 2:SA PIDs 3:EMGENCY 0:NO ACTION, Manufacturer AC FAULT 1:BLACKOUT, PIDs 2:EMERGENCY PROLIGHTS - SmartBat Wash...
- Page 24 MANUAL-BLUE 0-255 PIDs purpose Manufacturer PID for service MANUAL-WHITE 0-255 PIDs purpose Manufacturer Enable/Disable IR SETUP 0:OFF 1:ON PIDs IR control Manufacturer 0:3H 1:6H 2:8H RUN TIME PIDs 3:12H 4:18H Manufacturer CLEAN ALL DATA 0:NO,1:YES PIDs PROLIGHTS - SmartBat Wash...
- Page 25 RDM PIDs Default Parameter Category GET SET Value Description Address Value Manufacturer CURRENT HOURS PIDs Manufacturer MAINTENANCE TIME:ALERT PERIOD PIDs Manufacturer MAINTENANCE TIME:ELAPSED TIME PIDs Manufacturer WIRELESS QUALITY PIDs Manufacturer ERROR MESSAGE PIDs PROLIGHTS - SmartBat Wash...
-
Page 26: Dmx Charts
DMX Mode Footprint BASIC STANDARD EXTENDED MODE PARAMETER BASIC STANDARD EXTENDED DIMMER DIMMER FINE STROBE TINT CROSSFADE RED FINE GREEN GREEN FINE BLUE BLUE FINE WARM WHITE WARM WHITE FINE COLOR MACRO CTO ON COLORS CONTROL PROLIGHTS - SmartBat Wash... -
Page 27: Channel Definition
16 bit value Function Note From From Close Default @ 255 Strobe from Slow to Fast Open Pulse In from slow to fast Open Pulse Out from slow to fast Open Random from slow to fast Open PROLIGHTS - SmartBat Wash... - Page 28 7000 7100 38229 39139 7100 7200 39139 40049 7200 7300 40049 40959 7300 7400 40959 41870 7400 7500 41870 42780 7500 7600 42780 43690 7600 7700 43690 44600 7700 7800 44600 45510 7800 7900 45510 46421 PROLIGHTS - SmartBat Wash...
- Page 29 Green 8 bit value 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 Blue 8 bit value 16 bit value Function Note From From 0 - 100% 65535 Default @ 255 PROLIGHTS - SmartBat Wash...
- Page 30 BRIGHT PINK MAUVE DARK GREEN LEE GREEN DARK BLUE LIGHT BLUE STEEL BLUE MEDIUM BLUE-GREEN PEACOCK BLUE MAGENTA DARK PINK MIDDLE ROSE LIGHT SALMON ENGLISH ROSE LIGHT ROSE ORANGE DEEP AMBER STRAW LIGHT AMBER SPRING YELLOW PROLIGHTS - SmartBat Wash...
- Page 31 DEEP STRAW ROSE PURPLE DEEP PURPLE SOFT GREEN Reserved for future use 2700K 2800K 3000K 3200K 3400K 3600K 3800K 4000K 4200K 4400K 4600K 4800K 5000K 5200K 5400K 5600K 6000K 6500K 7000K 8000K 9000K 10000K FULL ON PROLIGHTS - SmartBat Wash...
- Page 32 RUN TIME 8 H RUN TIME 12 H RUN TIME 18 H IR SETUP ON IR SETUP OFF DMX FAULT HOLD DMX HOLD BLACKOUT DMX FAULT STAND ALONE DMX FAULT EMERGENCY AC FAULT NO ACTION AC FAULT BLACKOUT PROLIGHTS - SmartBat Wash...
- Page 33 STAND ALONE EFFECT 3 STAND ALONE EFFECT 4 STAND ALONE EFFECT 5 STAND ALONE STATIC FIXED COLORS STAND ALONE STATIC COLOR MACRO STAND ALONE STATIC WHITE PRESETS STAND ALONE STATIC MANUAL COLORS Reserved Reset all channel controlled PROLIGHTS - SmartBat Wash...
-
Page 34: Error Messages
If the error still occurrs, the battery is faulty . Replace the battery. Battery not detected. It may be faulty or [NO BATTERY] disconnected. Battery is almost empty (20%). Need to [LOW BATTERY] recharge [BATTERY CHARGER ERROR] Battery charger circuit not working PROLIGHTS - SmartBat Wash... -
Page 35: Accessories Installation
Mount the accessory light diffusion filter (A) on the front cover (B); the hooking is magnetic due to the magnets on the frame of the accessory light diffusion filter (DETAIL) and inside the front cover. Fig. 08 PROLIGHTS - SmartBat Wash... -
Page 36: Barn Door (Code Sbwbd - Optional)
2. Then positioning the spring pin on the hardware into the hole provided on the top of the unit head (A). 3. Hook the safety cable (A) and adjust the angle of the four leafs (B). Fig. 09 PROLIGHTS - SmartBat Wash... -
Page 37: Test Of Ip65 Rating
Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. Insert the threaded end into the threaded valve hole socket. For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 10 PROLIGHTS - SmartBat Wash... -
Page 38: Maintenance
WARNING: the use of alcohol or any other detergent could damage the lenses. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel. -
Page 39: Troubleshooting
• Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in... - Page 40 Note...
- Page 41 Note...
- Page 42 Note...
- Page 44 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
