6 - PRODUCT OVERVIEW

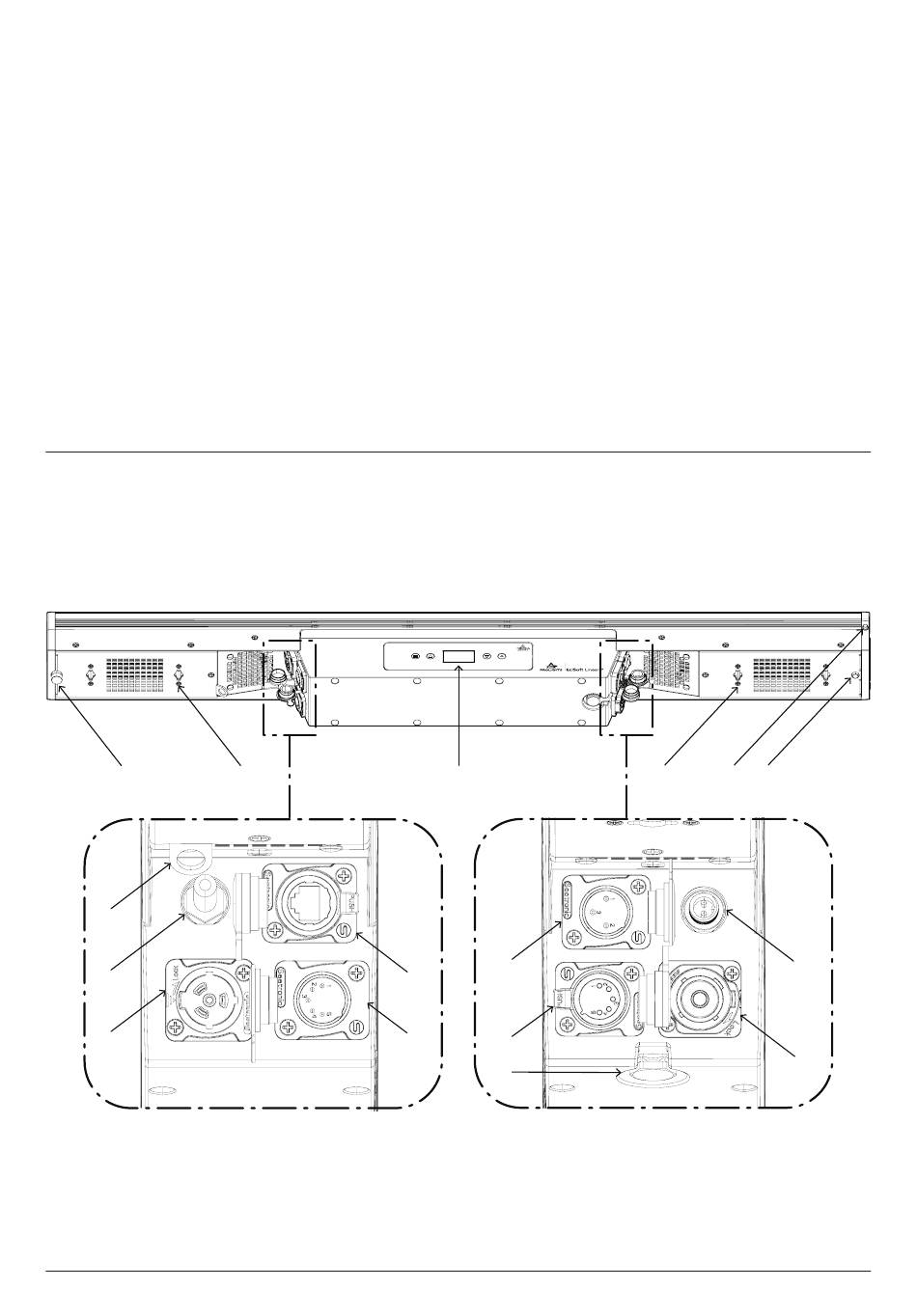

1. USER INTERFACE with display and buttons for access to the control panel functions.
2. Holes to attach Quick-lock.
3. Button to lock the mounted unit.
4. Button to insert the filter holder.
5. Button to release the lock to mount units in series
6. SAFETY EYE to attach safety cable.
7. ANTENNA.
8. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
9. ETHERCON CONNECTORS IN / OUT signal.
10. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
11. DMX IN (3-p XLR): 1 = GND, 2 = sign-, 3 = sign+.
12. DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
13. GORE VALVE.
14. BATTERY 4 pin.
15. POWER OUT: power output for connection of multiple units in series
3
6
7
8
2
9
10
PROLIGHTS - EclSoft LinearIP
1
11
12
13
2
5
4
14
15
Fig. 04
