15 - TEST OF IP65 RATING

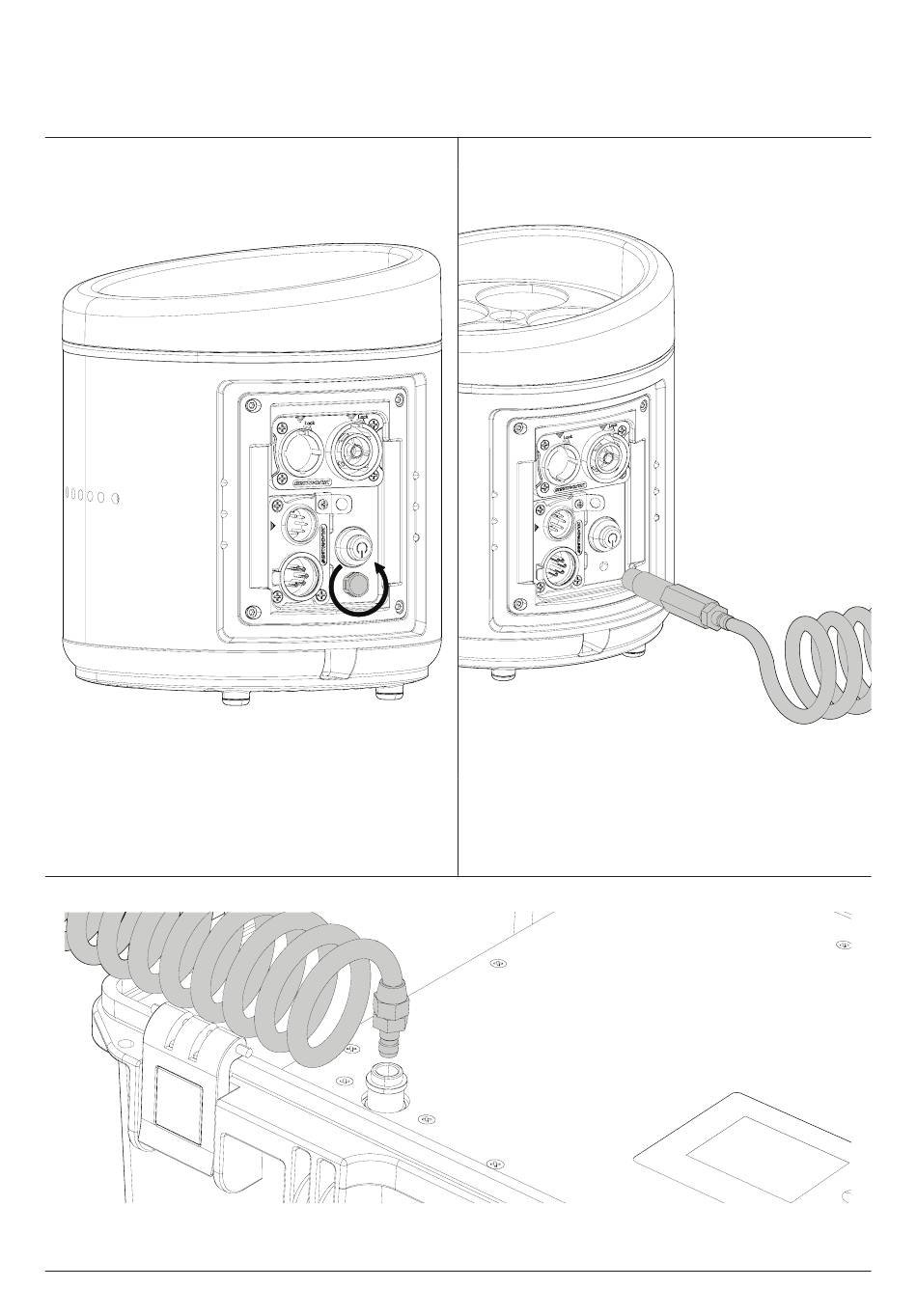

To check sealing after servicing use the IPTESTBOX.
1
Remove the gore valve from the connections panel.Insert the threaded end into the threaded valve
3
Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler.
38
2
hole socket.
For the operating procedure using the instrument,
refer to the IPTESTBOX user manual.
PROLIGHTS - SmartBat PlusG2
Fig. 13
