5.6.2 Installing Driveline

DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator's seat for any reason.
IMPORTANT:
If the combine output shaft splines match the float module input shaft splines, ensure the driveline is installed with
the longer guard at the float module gearbox end.
IMPORTANT:
Ensure the driveline length corresponds with the length specifications for your specific equipment. Refer to
Header Attachments, page
1. Store the driveline (A) in hook (B).
2. Slide the shield (B) over the driveline.
3. Position the driveline quick disconnect onto the float
module gearbox shaft, pull back the collar, and slide
onto the shaft until the yoke locks onto the shaft.
Release the collar.
4. Position the shield (B) on the gearbox and secure with
nuts (A).
5. Connect the opposite end to the combine if necessary.
147831
MAINTENANCE AND SERVICING
23.

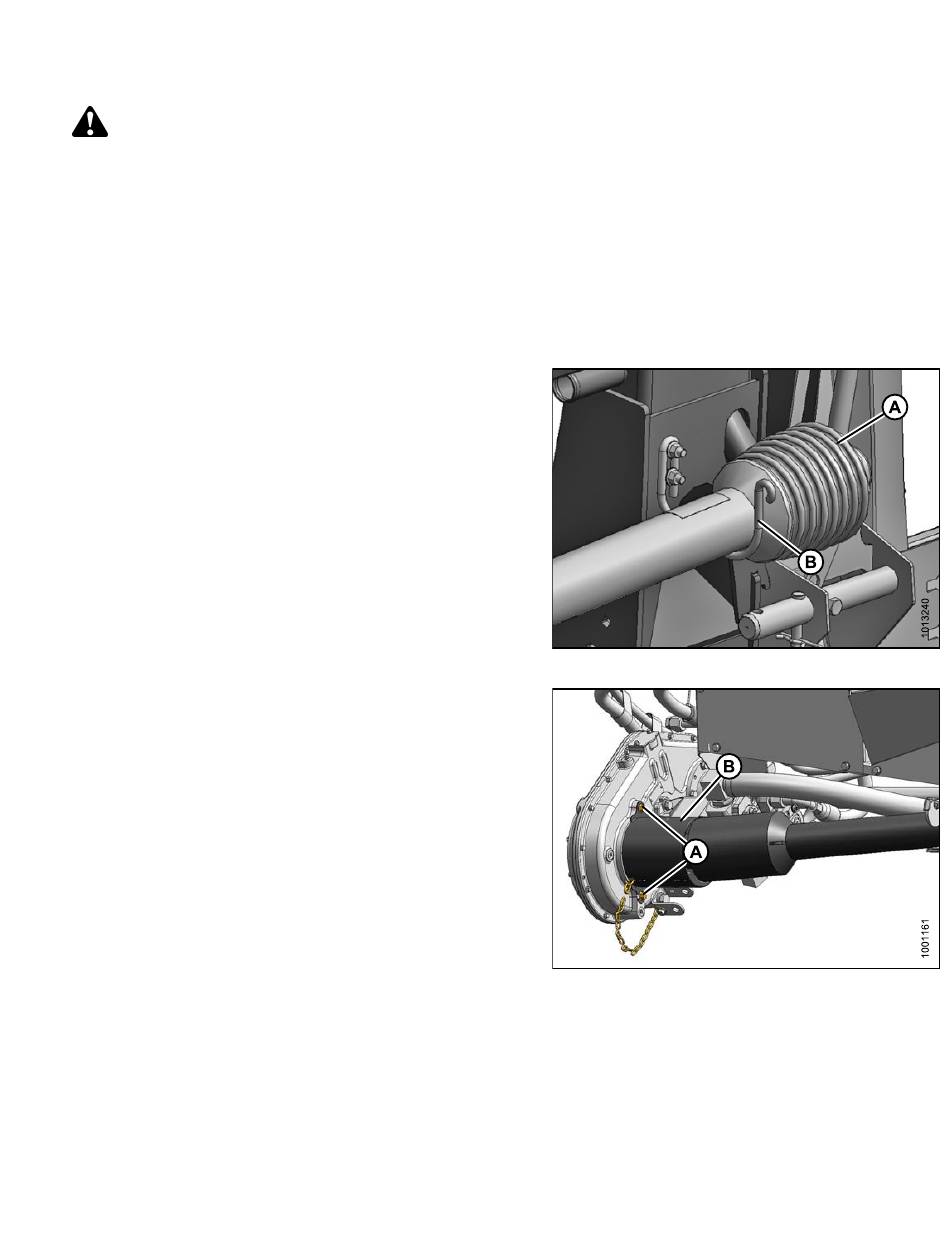

Figure 5.34: Combine End of Driveline
Figure 5.35: Float Module End of Driveline
