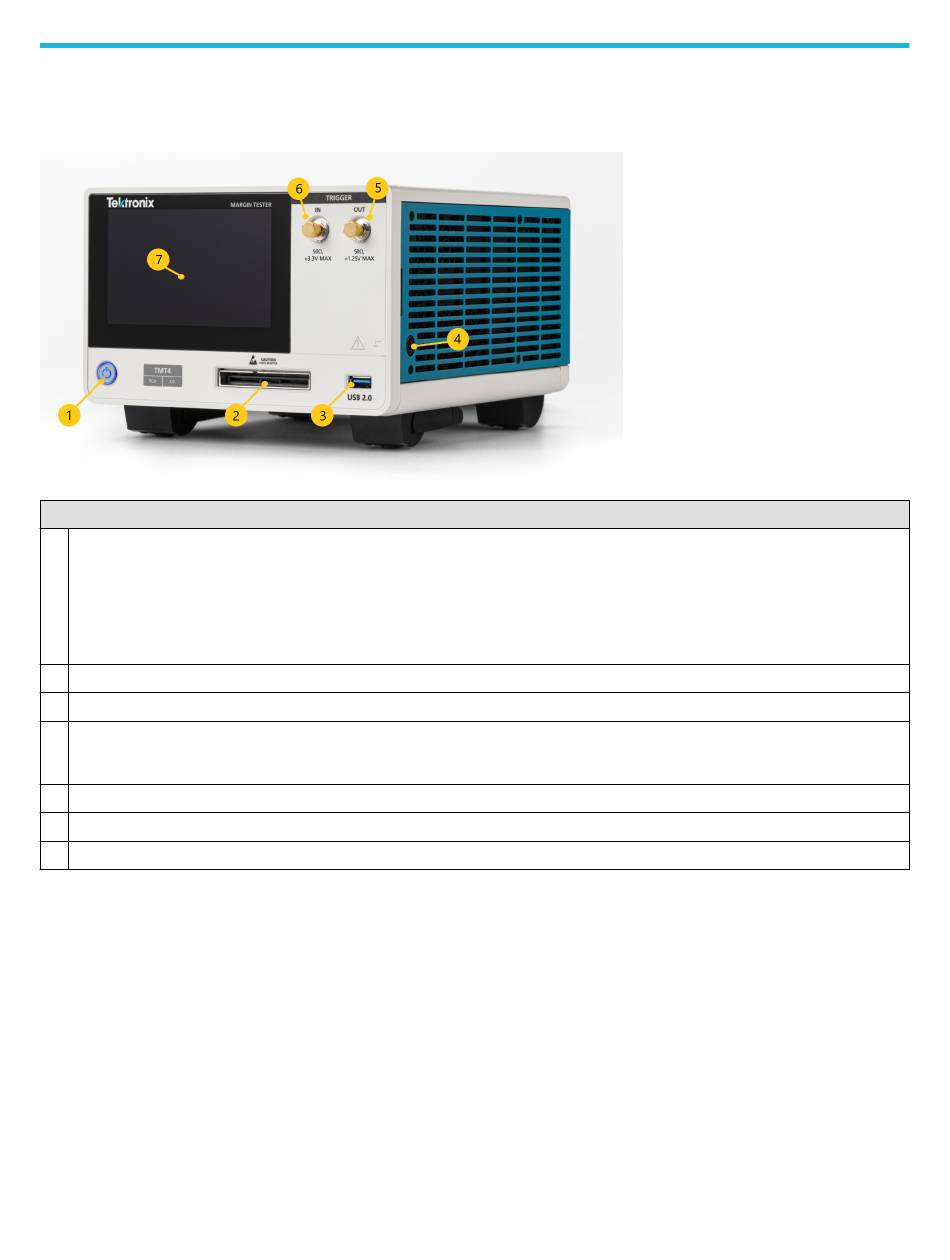

Front panel controls and connectors

The front panel provides access to power button, trigger and signal inputs and outputs, and touchscreen display.
Description
1
Power button. LED color indicates power mode.
Off: Unplugged (unplug the power cord to remove power completely)
Amber: Standby
Blue: On
2 PCIe high density connector
3 USB 2.0 type A port.
4
Banana type ground connection. Discharge the static voltage from your body by wearing a grounded antistatic wrist strap while
connecting and disconnecting cables and adapters.
5 (Not yet available) Trigger Out +1.25 V, 50 Ω
6 (Not yet available) Trigger In +3.3 V, 50 Ω
7 5" LCD touch screen provides access to basic controls and test results.
