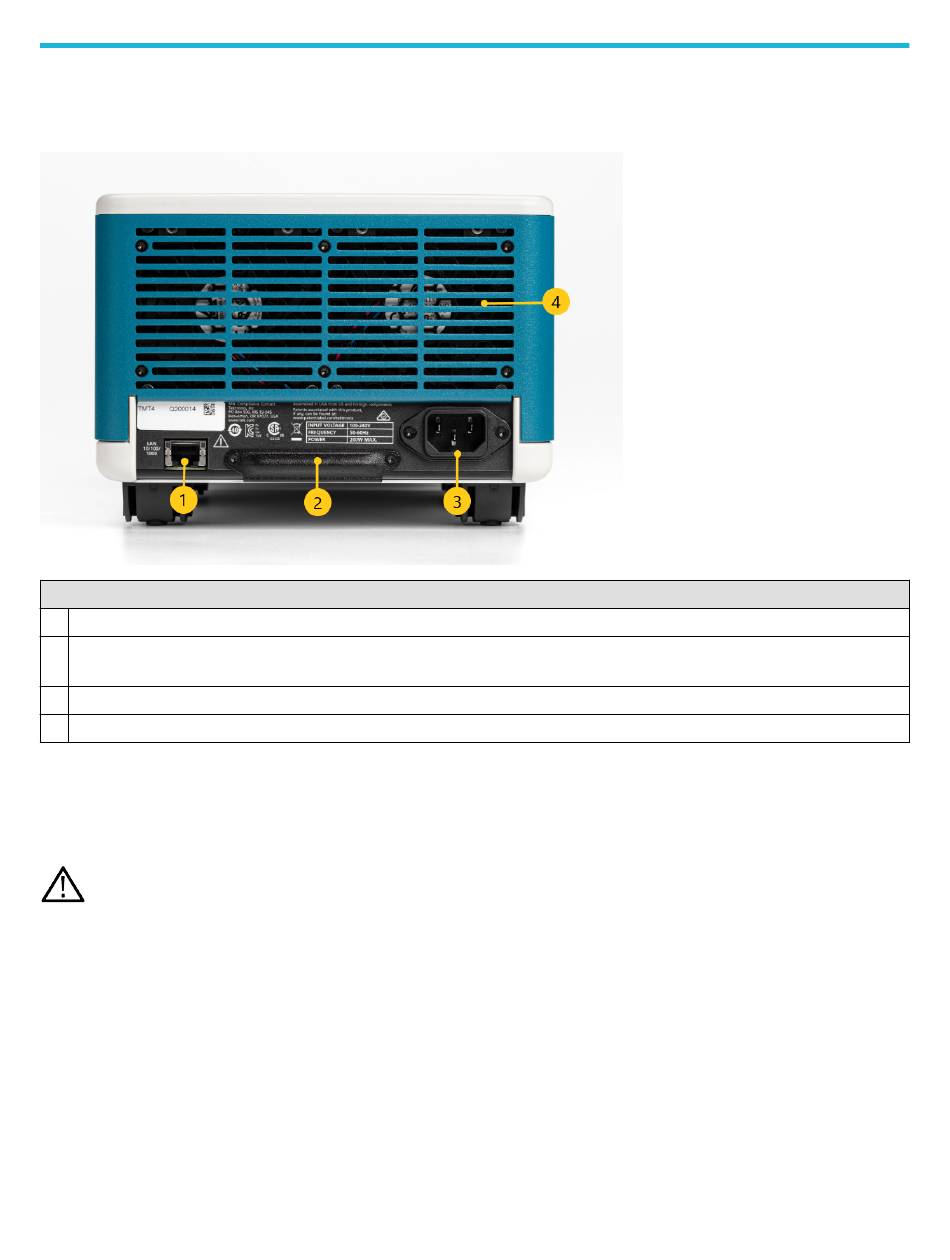

Rear panel connectors

The rear panel connectors provide access to power and LAN.
Description
1 LAN. 10/100/1000 Base-T Ethernet port for remote connection to a PC.
2 SD memory card slot. This slot will be used for core storage needs. Removable for sensitive purposes related to declassification as
needed. Remove screws to access card.
3 Power connector. 100-240V, 50-60Hz, 200 W maximum
4 Fan vents.

Setup and installation

Connect and turn on
CAUTION: Do not disconnect a device under test when the instrument is powered on. If a disconnection occurs when power is
on, the instrument must be powered off, and then powered back on after DUT connectivity is restored.
Follow these steps after you unpack the instrument to turn it on, connect, and get started. This requires an Ethernet connection.
1. Plug in an Ethernet cable to the LAN connector on the rear panel of the instrument and then directly to the host PC or to an Ethernet
network.
2. Plug in the supplied power cord to the power connector on the rear of the instrument and to an appropriate power source.
3. Push the Power button on the front panel to turn on the instrument. The Power button LED color indicates the power mode of the
instrument. Amber is Standby. Blue is On. No light means the instrument is unplugged and Off.
4. When you are turning on the instrument for the first time, the following screen should appear. Write down the IP address shown on the
screen of your instrument.
