  • Page 1: Instruction Manual

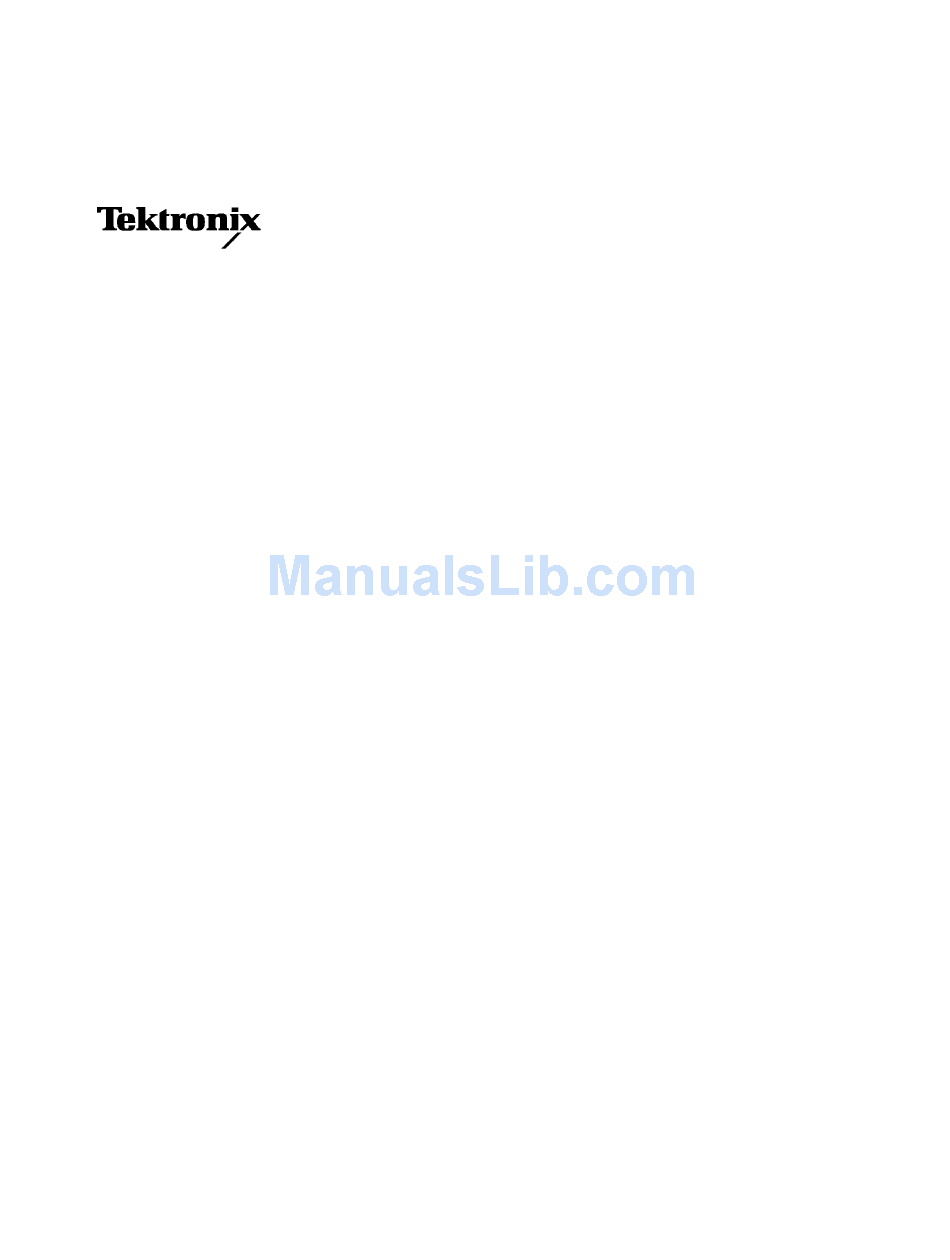

    Instruction Manual TMS 540 PowerPC 60X Microprocessor Support 070-9829-00 There are no current European directives that apply to this product. This product provides cable and test lead connections to a test object of electronic measuring and test equipment. Warning The servicing instructions are for use by qualified personnel only.
  • Page 2 Copyright Tektronix, Inc. All rights reserved. Licensed software products are owned by Tektronix or its suppliers and are protected by United States copyright laws and international treaty provisions. Use, duplication, or disclosure by the Government is subject to restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013, or subparagraphs (c)(1) and (2) of the...
  • Page 3 In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period. If Tektronix is unable to provide a replacement that is free from defects in materials and workmanship within a reasonable time thereafter, Customer may terminate the license for this software product and return this software product and any associated materials for credit or refund.
  • Page 4 Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations.

  • Page 5: Table Of Contents

    ..........3–14 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 6 Using the Replaceable Mechanical Parts List ......6–1 Index TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 7 ..........1–16 Table 1–6: PowerPC 60X connections for the clock channels ..1–18 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 8 ....3–16 Table 3–17: PGA socket pin numbers to PPC60X signal names ..3–16 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 9: General Safety Summary

    Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 10 CAUTION indicates a hazard to property including the product. Symbols on the Product. The following symbols may appear on the product: WARNING Protective Ground CAUTION Double High Voltage (Earth) Terminal Refer to Manual Insulated TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 11: Service Safety Summary

    Use Care When Servicing With Power On. Dangerous voltages or currents may exist in this product. Disconnect power, remove battery (if applicable), and disconnect test leads before removing protective panels, soldering, or replacing components. To avoid electric shock, do not touch exposed connections. TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 12: Preface: Microprocessor Support Documentation

    Tektronix logic analyzers. If you are familiar with operating microprocessor support packages on the logic analyzer for which the TMS 540 PowerPC 60X support was purchased, you will probably only need this instruction manual to set up and run the support.

  • Page 13: Logic Analyzer Documentation

    Preface: Microprocessor Support Documentation The term logic analyzer refers to the Tektronix logic analyzer for which this product was purchased. The term module refers to a 136-channel or a 192-channel module. PPC60X refers to all supported variations of the PowerPC 60X microproces- sor unless otherwise noted.

  • Page 14: Getting Started

    Refer to information on basic operations to determine how many modules and probes your logic analyzer needs to meet the minimum channel requirements for the TMS 540 microprocessor support. Table 1–1 shows the microprocessors and packages from which the TMS 540 support can acquire and disassemble data. Table 1–1: Supported microprocessors...

  • Page 15: Logic Analyzer Software Compatibility

    Logic Analyzer Configuration To use the PowerPC 60X support, the Tektronix logic analyzer must be equipped with either a 136-channel module, or a 192-channel module at a minimum. The module must be equipped with enough probes to acquire channel and clock data from signals in your PowerPC 60X-based system.

  • Page 16: Configuring The Probe Adapter

    PowerPC 60X support requirements and restrictions. System Clock Rate. The TMS 540 support can acquire data from the PowerPC 60X microprocessor at speeds of up to 66 MHz SUT Power. Whenever the SUT is powered off, be sure to remove power from the probe adapter.

  • Page 17: Connecting To A System Under Test

    The pins are cleanly soldered to the board without excess solder or deformity. b. The bends of the pins are uniform (consistent and even). 5. Apply contact lubricant to the pins of the converter clip to improve the connection to the microprocessor. 1–4 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 18: Figure 1-1: Adjusting The Friction Of The O-Ring In The Converter Clip

    7. Pull up the heat sink on the converter clip to allow vertical clearance for the microprocessor. 8. Apply a small amount of thermal joint compound to the end of the heat sink that faces the microprocessor (the end that will contact the microprocessor). 1–5 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 19: Figure 1-2: Placing The Pga-To-Qfp Converter Clip Onto The Microprocessor

    SUT. Figure 1–3 shows the placement of the tie-down holes on the MPC601 or PPC601 clips. Figure 1–4 shows the placement of the tie-down holes on the MPC603 or PPC603 clips. 1–6 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 20: Figure 1-3: Tie-Down Hole Placement On The Mpc601 Or Ppc601 Converter Clips

    14. If you cannot secure the clip through tie-down holes and screws, you can use a nonconductive retention device around the clip and SUT circuit board to make sure the clip is secure. Figure 1–5 shows an example of this method. 1–7 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 21: Figure 1-5: Using An Alternate Method To Secure The Pga-To-Qfp Converter Clip

    16. Line up the pin E1 indicator on the probe adapter with the pin E1 indicator on the PGA-to-QFP clip. 17. Place the probe adapter onto the PGA-to-QFP clip as shown in Figure 1–6. 1–8 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 22: Figure 1-6: Placing The Probe Adapter Onto The Pga-To-Qfp Converter Clip

    Table 1–2. Table 1–2: High-density probe exceptions for the 136-channel module Section Connect to high-density probe pins E3, E2, E1, E0 HI_A3, HI_A2, HI_A1, HI_A0 C1, C0 HI_C3, HI_C2 1–9 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 23: Figure 1-7: Connecting Probes To A High-Density Probe

    20. Align pin 1 on the HI cable connector, the end on the narrowest cable strip of the cable, with pin 1 on the HI connector on the high-density probe. Connect the cable to the connector as shown in Figure 1–8. 1–10 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 24: Without A Probe Adapter

    To connect the probes to PowerPC 60X signals in the SUT using a test clip, follow these steps: 1. Turn off power to your SUT. It is not necessary to turn off power to the logic analyzer. 1–11 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 25: Table 1-3: 136-Channel: Powerpc 60X Connections For Channel Probes

    D3:4 A3:3 D3:3 A3:2 D3:2 A3:1 D3:1 A3:0 D3:0 A2:7 D2:7 A2:6 D2:6 A2:5 D2:5 DL10 A2:4 D2:4 DL11 A2:3 D2:3 DL12 A2:2 D2:2 DL13 A2:1 D2:1 DL14 A2:0 D2:0 DL15 1–12 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 26 TSIZ0 E2:5 DH10 C2:5 DBB* E2:4 DH11 C2:4 ABB* E2:3 DH12 C2:3 XATS* E2:2 DH13 C2:2 E2:1 DH14 C2:1 AACK* E2:0 DH15 C2:0 ARTRY_ERLY* E1:7 DH16 C1:7 E1:6 DH17 C1:6 ARTRY* 1–13 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 27: Table 1-4: 192-Channel: Powerpc 60X Connections For The Hi Module

    Table 1–4: 192-channel: PowerPC 60X connections for the HI module Section: Section: channel Connect to PPC60X signal channel Connect to PPC60X signal A3:7 D3:7 DPE* A3:6 D3:6 1–14 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 28 CSE0 (601 and 604) A0:3 DH28 D0:3 BSCAN_EN* (601) A0:2 DH29 D0:2 PCLK_EN* (601) A0:1 DH30 D0:1 RESUME (601) A0:0 DH31 D0:0 ESP_EN* (601) C3:7 C1:7 RTC (601) C3:6 ARTRY* C1:6 SYS_QUIESC* (601) 1–15 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 29: Table 1-5: 192-Channel: Powerpc 60X Connections For The Lo Module

    Table 1–5: 192-channel: PowerPC 60X connections for the LO module Section: Section: channel channel Connect to PPC60X signal Connect to PPC60X signal A3:7 D3:7 A3:6 D3:6 A3:5 D3:5 A3:4 D3:4 1–16 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 30 A0:1 D0:1 DL30 A0:0 D0:0 DL31 C3:7 C1:7 TRST* (603 and 604) C3:6 C1:6 TMS (603 and 604) C3:5 TEA* C1:5 TDO (603 and 604) C3:4 C1:4 TDI (603 and 604) 1–17 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 31: Table 1-6: Powerpc 60X Connections For The Clock Channels

    In a 601 SUT, connect the SYSCLK= signal to a 1X clock (such as the BCLK_EN* signal). Refer to Requirements and Restrictions in the Getting Started chapter for more detailed information on this clock. 1–18 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 32: Applying And Removing Power

    If you detect a short, determine the source and repair the problem before applying power. CAUTION. Failure to use the +5 V power supply provided by Tektronix might permanently damage the probe adapter and PowerPC 60X microprocessor. Do not mistake another power supply that looks similar for the +5 V power supply.

  • Page 33: Figure 1-9: Location Of The Power Jack

    CAUTION. Failure to power down your SUT before removing the power from the probe adapter might permanently damage the PowerPC 60X microprocessor and SUT. 1. Power off the SUT. 2. Unplug the power supply for the probe adapter from the electrical outlet. 1–20 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 34: Setting Up The Support

    Symbol table files Remember that the information in this section is specific to the operations and functions of the TMS 540 PowerPC 60X support on any Tektronix logic analyzer for which it can be purchased. Information on basic operations describes general tasks and functions.

  • Page 35: Drtry Cycles

    Setting Up the Support A description of how cycles are sampled by the module using the TMS 540 support and probe adapter is found in the Specifications chapter. Disassembly will not be correct with the Internal or External clocking modes.
  • Page 36 MPC0’s DSA packet 0 and MPC1’s Data M0P1_M1D MPC0’s DSA packet 1 and MPC1’s Data M1A_M0D MPC1’s Address and MPC0’s Data M1P0_M0D MPC1’s DSA packet 0 and MPC0’s Data M1P1_M0D MPC1’s DSA packet 1 and MPC0’s Data 2–3 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 37 Table 2–2: Transfer group symbol table definitions Transfer group value Symbol Meaning GBL* FETCH Instruction Fetch cycle READ Data Read cycle WRITE Data Write cycle ADDR_ONLY Address only cycle UNKNOWN Unknown cycle 2–4 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 38 One byte transfer UNKNOWN Unknown transfer size Information on basic operations describes how to use symbolic values for triggering and for displaying other channel groups symbolically, such as the Address channel group. 2–5 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 39: Acquiring And Viewing Disassembled Data

    The disassembler displays special characters and strings in the instruction mnemonics to indicate significant events. Table 2–4 shows these special characters and strings, and gives a definition of what they represent. 2–7 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 40: Hardware Display Format

    Address cycle with selected PPC60X master ( 60X_ART_ADDRS ) Selected PPC60X Address retried ( ALT_ADDRS ) Alternate masters address ( INCOM_ADDRS ) Invalid selected PPC60X Address which is not associated with its data 2–8 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 41: Table 2–6: Cycle Type Labels For Direct Store Access Sequences And Definitions

    Alternate masters data ( 60X_DRT_DATA ) Selected PPC60X Data retried ( INCOM_DATA ) Invalid selected PPC60X Data which is not associated with its address ( 60X_DSA_DATA ) Selected PPC60X Direct Storage Access Data 2–9 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 42: Table 2–8: Cycle Type Labels For Artry, Drtry, And Data Error Cycles

    ( WWF-ATOMIC ) Write-with-Flush-Atomic operation issued by the microprocessor ( EXT CTR WD WRT ) External Control Word Write transaction ( TLB INVAL ) TLB invalidate transaction issued by the microprocessor 2–10 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 43: Figure 2-1: Disassembled Data In The Hardware Display Format

    Figure 2–1 shows an example of disassembled PPC60X data in the Hardware display format. Figure 2–1: Disassembled data in the Hardware display format Sample Column. Lists the memory locations for the acquired data. 2–11 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 44: Software Display Format

    Instructions that generate a subroutine call or a return in the PowerPC 60X microprocessor are as follows: Instructions that might generate a subroutine call or a return in the PowerPC 60X microprocessor are as follows: 2–12 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 45: Changing How Data Is Displayed

    HRESET* is deasserted after you start the system. You should select the bus configuration that matches the one in your PPC60X- based system: 64-bit Data bus, or 32-Bit Data bus. 2–13 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 46 NOTE. If an address is in the Exception processing region and in the range selected for the alternate byte ordering, the disassembler uses the byte ordering selected for the Exception processing. 2–14 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 47: Marking Cycles

    Mark selections available on sequences with both data and address cycles (if the data cyle is associated with a fetch cycle) and the PPC60X microprocessor is operating in 64-bit mode are as follows: 2–15 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 48: Table 2–10: Mark Selections And Definitions

    HI_Data and LO_Data are not disassembled and labeled as Address is invalidated HI_Data and LO_Data are disassembled; the address is invalidated HI_Data and LO_Data are not disassembled and labeled as ; the address is invalidated 2–16 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 49: Displaying Exception Labels

    0x00100 ( SYSTEM RESET ) 0x00200 ( MACHINE CHECK ) 0x00300 ( DSI ) 0x00400 ( ISI ) 0x00500 ( EXTERNAL INTERRUPT ) 0x00600 ( ALIGNMENT ) 0x00700 ( PROGRAM ) 2–17 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 50: Viewing An Example Of Disassembled Data

    SUT. Information on basic operations describes how to view the file. 2–18 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 51: Specifications

    Specifications These specifications are for a probe adapter connected between a compatible Tektronix logic analyzer and a SUT. Table 3–1 shows the electrical requirements the SUT must produce for the support to acquire correct data. Table 3–2 shows the environmental specifications. Table 3–3 shows the certifications and compliances that apply to the probe adapter.

  • Page 52: Table 3–1: Electrical Specifications

    There are no current European Directives that apply to this product. Figure 3–1 shows the dimensions of the probe adapter. The figure also shows the minimum vertical clearance of the high-density probe cable. 3–2 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 53: Figure 3-1: Dimensions Of The Probe Adapter And Converter Clips

    (1.400 in) 21 mm 13 mm (.850 in) (.520 in) 6 mm (.240 in) 36.3 mm (1.430 in) 43 mm (1.700 in) Figure 3–1: Dimensions of the probe adapter and converter clips 3–3 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 54: Channel Assignments

    LO module. Table 3–4 shows the probe section and channel assignments for the Address group, and the microprocessor signal to which each channel connects. The default display radix is HEX. 3–4 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 55: Table 3–4: Address Group Channel Assignments

    LO_A1:7 A1:6 LO_A1:6 A1:5 LO_A1:5 A1:4 LO_A1:4 A1:3 LO_A1:3 A1:2 LO_A1:2 A1:1 LO_A1:1 A1:0 LO_A1:0 A0:7 LO_A0:7 A0:6 LO_A0:6 A0:5 LO_A0:5 A0:4 LO_A0:4 A0:3 LO_A0:3 A0:2 LO_A0:2 A0:1 LO_A0:1 A0:0 LO_A0:0 3–5 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 56: Table 3–5: Hi_Data Group Channel Assignments

    DH21 E1:1 HI_A1:1 DH22 E1:0 HI_A1:0 DH23 E0:7 HI_A0:7 DH24 E0:6 HI_A0:6 DH25 E0:5 HI_A0:5 DH26 E0:4 HI_A0:4 DH27 E0:3 HI_A0:3 DH28 E0:2 HI_A0:2 DH29 E0:1 HI_A0:1 DH30 E0:0 HI_A0:0 DH31 3–6 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 57: Table 3–6: Lo_Data Group Channel Assignments

    DL21 D1:1 LO_D1:1 DL22 D1:0 LO_D1:0 DL23 D0:7 LO_D0:7 DL24 D0:6 LO_D0:6 DL25 D0:5 LO_D0:5 DL26 D0:4 LO_D0:4 DL27 D0:3 LO_D0:3 DL28 D0:2 LO_D0:2 DL29 D0:1 LO_D0:1 DL30 D0:0 LO_D0:0 DL31 3–7 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 58: Table 3–7: Control Group Channel Assignments

    DBB* Table 3–8 shows the probe section and channel assignments for the Transfer group, and the microprocessor signal to which each channel connects. By default, this channel group is displayed symbolically. 3–8 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 59: Table 3–8: Transfer Group Channel Assignments

    PowerPC 60X signal name C1:1 HI_C3:1 HRESET* C1:3 HI_C3:3 SYSCLK C1:5 HI_C3:5 BR_SHD* Signal not required for disassembly. BR* signal on the PPC603 microprocessor; SHD* signal on the PPC601 microproces- sor. 3–9 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 60: Table 3–11: 192-Channel: Com_60X Group Channel Assignments

    Signal not required for disassembly. Table 3–12 shows the probe section and channel assignments for the PPC601_4 group, and the microprocessor signal to which each channel connects. By default, this channel group is not visible. 3–10 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 61: Table 3–12: 192-Channel: Ppc601_4 Group Channel Assignments

    Table 3–13: 192-channel: PPC603_4 group channel assignments order Section & probe PowerPC 60X signal name HI_C0:7 DBDIS* HI_C0:6 TLBISYNC* HI_C0:5 TBEN HI_C0:4 QACK* HI_C0:3 QREQ* HI_C0:2 3–11 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 62: Table 3–14: 192-Channel: Ppc604 Group Channel Assignments

    Signal not required for disassembly. Table 3–15 shows the probe section and channel assignments for the clock probes (not part of any group), and the PowerPC 60X signal to which each channel connects. 3–12 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 63: How Data Is Acquired

    How Data is Acquired This section explains how the module acquires PowerPC 60X signals using the TMS 540 probe adapter and application. This part also provides additional information on microprocessor signals accessible on or not accessible on the probe adapter, and on extra acquisition channels available for you to use for additional connections.

  • Page 64: Clocking Options

    A31-A0 signals. Clocking Options The clocking algorithm for the PowerPC 60X microprocessor support has two variations: DRTRY Cycles Included or DRTRY Cycles Excluded. 3–14 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 65: Alternate Microprocessor Connections

    Table 3–16 lists extra sections and channels that are left after you have connected all the probes used by the support. You can use these extra channels to make alternate SUT connections. 3–15 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 66: Module

    Specifications Channels not defined in a channel group by the TMS 540 software are logged in with the Master sample point. Table 3–16: Extra module sections and channels Module Section: channels 136-channels Qual:3-0 192-channels None These channels are not defined in any channel group and data acquired from them is not displayed.
  • Page 67 Microprocessor pin number PPC60X signal PGA pin no. MPC601/PPC601 MPC603/PPC603 MPC604 AACK* ABB* APE* ARRAY_WR* - - - - - - ARTRY* - - - BSCAN_EN* - - - - - - 3–17 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 68 - - - CSE0 - - - CSE1 - - - CSE2 - - - - - - DBB* DBDIS* - - - DBG* DBWO* DH10 DH11 DH12 DH13 DH14 DH15 DH16 3–18 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 69 Microprocessor pin number PPC60X signal PGA pin no. MPC601/PPC601 MPC603/PPC603 MPC604 DH17 DH18 DH19 DH20 DH21 DH22 DH23 DH24 DH25 DH26 DH27 DH28 DH29 DH30 DH31 DL10 DL11 DL12 DL13 DL14 DL15 3–19 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 70 DL26 DL27 DL28 DL29 DL30 DL31 DPE* DRTRY* ESP_EN* - - - - - - GBL* HALTED - - - - - - HP_SNP_REQ* - - - - - - HRESET* 3–20 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 71 - - - - - - SMI* - - - SRESET* SYS_QUIESC* - - - - - - SYSCLK TBEN - - - TBST* - - - - - - - - - 3–21 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 72 TSIZ1 TSIZ2 XATS* Pin information included for general purpose probing. Figure 3–3 shows the PGA socket on the probe adapter with the grid row and column labels for the pin numbers. 3–22 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 73: Figure 3-3: Grid Row And Column Labels For The Pin Numbers On The Pga Socket

    1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Figure 3–3: Grid row and column labels for the pin numbers on the PGA socket 3–23 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 74: Replacing The Fuse

    If the fuse on the PowerPC 60X probe adapter opens (burns out), you can replace it with a 5 A, 125 V fuse. Figure 4–1 shows the location of the fuse on the probe adapter. 4–1 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 75: Figure 4-1: Location Of The Fuse

    Maintenance Fuse Figure 4–1: Location of the fuse 4–2 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 76: Parts Ordering Information

    Replaceable Electrical Parts This chapter contains a list of the replaceable electrical components for the TMS 540 PowerPC 60X microprocessor support. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available through your local Tektronix field office or representative.
  • Page 77 Chassis-mounted parts have no assembly number prefix, and they are located at the end of the electrical parts list. Tektronix part number Use this part number when ordering replacement parts from Tektronix. 3 and 4 Serial number Column three indicates the serial number at which the part was first effective. Column four indicates the serial number at which the part was discontinued.
  • Page 78 SOCKET PGA:PCB,321 POS 21 X 21 SHORT PINS (SEE RMPL) A1F610 159–0059–00 FUSE,WIRE LEAD:5A,125V, 61857 SPI–5A (F610) A1U120 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED A1U130 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED 5–3 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 79 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED A1U530 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED A1U540 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED A1U550 156–6982–00 IC,DIGITAL:FCTCMOS,BUFFER;16–BIT,RESISTOR TERMINATED 61772 SCD5439 OUTPUTS,3–STATE,SPECIALLY TESTED 5–4 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...

  • Page 80: Using The Replaceable Mechanical Parts List

    Replaceable Mechanical Parts This chapter contains a list of the replaceable mechanical components for the TMS 540 PowerPC 60X microprocessor support. Use this list to identify and order replacement parts. Parts Ordering Information Replacement parts are available through your local Tektronix field office or representative.
  • Page 81 Items in this section are referenced by figure and index numbers to the exploded view illustrations that follow. Tektronix part number Use this part number when ordering replacement parts from Tektronix. 3 and 4 Serial number Column three indicates the serial number at which the part was first effective. Column four indicates the serial number at which the part was discontinued.
  • Page 82 MANUAL, TECH:TLA 700 SERIES MICRO SUPPORT 80009 070–9803–00 INSTALLATION 119–5061–01 POWER SUPPLY:25W,5V 5A,CONCENTRIC 14310 SW106KA002F01 2MM,90–265V,47–63HZ (NOT SHOWN) 161–0104–00 CA ASSY,PWR:3,18 AWG,98 L,250V/10AMP,98 INCH, S3109 ORDER BY DE- RTANG,IEC320,RCPT X STR,NEMA 15–5P,W/CORD GRIP SCRIPTION 6–3 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 83 CA ASSY,PWR:3,1.0MM SQ,250V/10AMP,2.5 METER, S3109 ORDER BY DE- RTANG,IEC320,RCPT, AUSTRALIA,SAFETY CONTROLLED SCRIPTION (OPT A3) 161–0167–00 CA ASSY,PWR:3,0.75MM SQ,250V/10AMP,2.5 METER, S3109 ORDER BY DE- RTANG,IEC320,RCPT, SWISS,NO CORD GRIP, SAFETY SCRIPTION CONTROLLED (OPT A5) 6–4 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 84 Replaceable Mechanical Parts Figure 1: PowerPC 60X probe adapter exploded view 6–5 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 85 CONN,HDR CPCB,;MALE,STR,1 X 2,0.1 CTR,0.235 MLF X 53387 131491700 0.110 TAIL,20 BOLD, TUBE, HIGH TEMP (J300,J340J400,J440,J500,J640,J600) –8 131–5267–00 CONN,HDR CPCB,;MALE,STR,2 X 40.O.1 CTR,0.234 MLG X 53387 131526700 0.110 TAIL, 30 GOLD (J310,J320,J330,J340,J350,J360,J370,J410,J420,J430,J450,J46 0,J470,J510,J520,J530,J550,J560,J570,J610,J620,J630,J650,J6 60,J670) 6–6 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 86 Replaceable Mechanical Parts Figure 2: 192-Channel High-Density Probe exploded view 6–7 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 87 Control Flow, 2–12 Control group, 3–8 Hardware, 2–8 Hi_Data group, 3–6 Software, 2–12 Lo_Data group, 3–7 Subroutine, 2–12 Misc group, 3–9 how it is acquired, 3–13 Transfer group, 3–8 data display, changing, 2–13 Index–1 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 88 3–23 general cycle type definitions, 2–10 microprocessor signal names, 3–16 Hi_Data group pipelining address, 1–3 channel assignments, 3–6 display column, 2–12 high-density probe, connecting channels to, 1–9 Index–2 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
  • Page 89 2–4 Transfer Size group, symbol table, 2–5 Tsiz group, channel assignments, 3–9 reference memory, 2–18 restrictions, 1–2 without a probe adapter, 1–11 viewing disassembled data, 2–7 Separated Address and Data, 2–2 Index–3 TMS 540 PowerPC 60X Microprocessor Support Instruction Manual...
