Up/Down

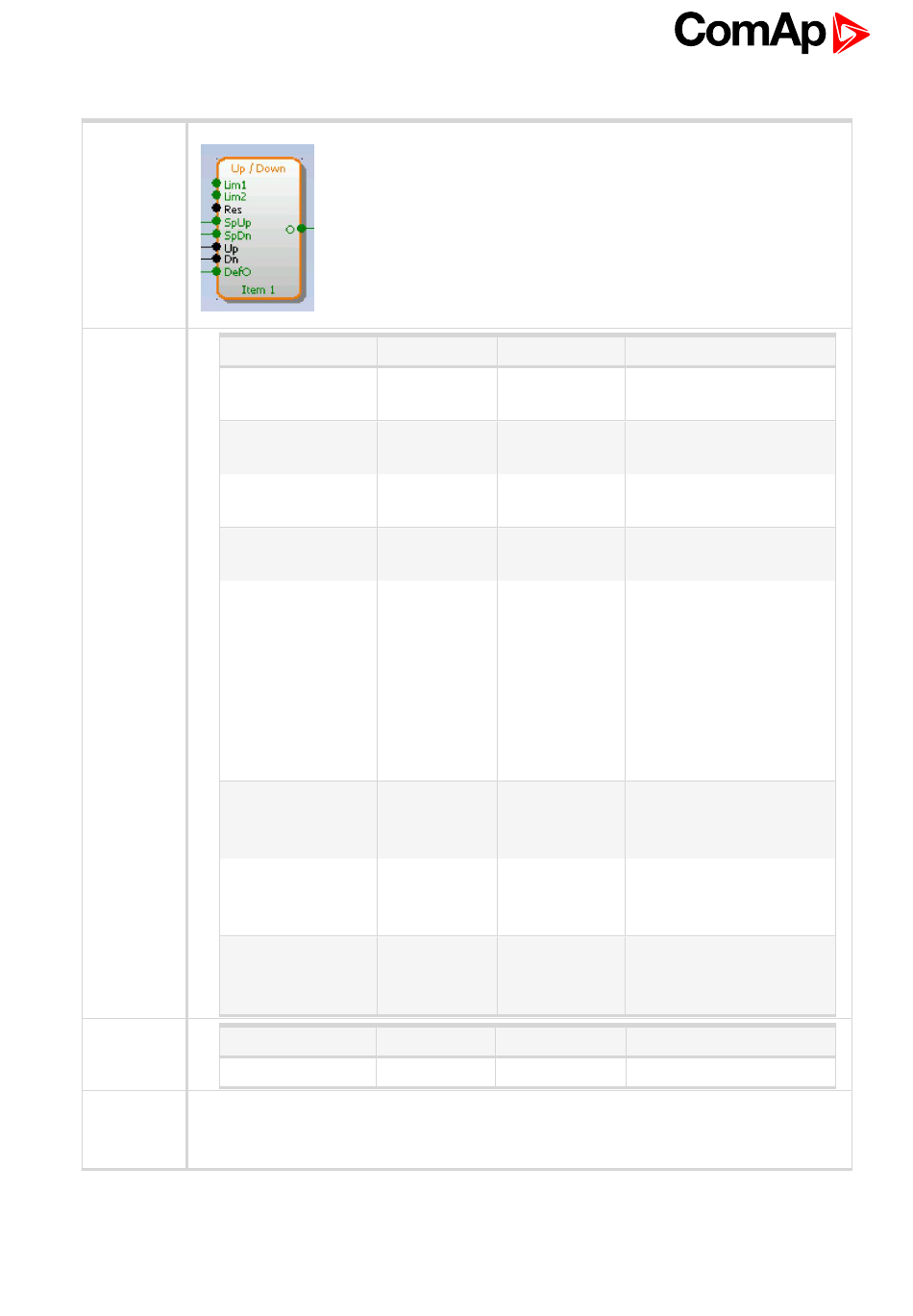

Symbol
Lim 1
Lim 2
Speed up
Speed down
Inputs
Default output value A
Up
Down
Reset
Outputs
Output
This block works as an analog ramp controlled by binary inputs "up" and "down". The ramp
Description rates and output limits are adjustable as well as bias value. The output can be reset to bias
value by the reset input.
ID-Mobile Global Guide
Input Type
A
A
A
A
B
B
B
Output Type
A
Range[DIM]
-32768..32767 Lower limit of the analog
[-] output
-32768..32767 Upper limit of the analog
[-] output
-32768..32767 Rising rate of the analog
[-] output per second
-32768..32767 Lowering rate of the analog
[-] output per second
Bias value of the output.
The output is initialized to
this value when the
-32768..32767 controller is switched on,
[-] when the reset input is
activated or when both
Speed up and Speed down
inputs are active.
The output is raising it's
N/A value with the adjusted rate
while this input is active.
The output is lowering it's
N/A value with the adjusted rate
while this input is active.
The output is set and held
N/A at bias value while this
input is active.
Range[DIM]
Lim1..Lim2 [-] Output value
Function
Function
