- Page 1 MedizinTechnik ... for a better life English ATMOS C 161 Battery 313.0400.B OM.01...
-
Page 2: Table Of Contents
Hose rinsing ..............8 11.1 Accessories ..............19 11.2 Consumables ............... 19 Operation ATMOS C 161 Battery / DDS ...... 9 11.3 Spare parts ..............20 DDS container and DDS bacterial fi lter ......9 Insertion of the DDS container ........9 12.0... -
Page 3: Introduction
These operating instructions must always be kept available near the device. Care and safety inspections in conjunction with professional execution provide for operational safety and readiness for use of your ATMOS C 161 Battery and are therefore a must besides regular clea- ning. -
Page 4: Function

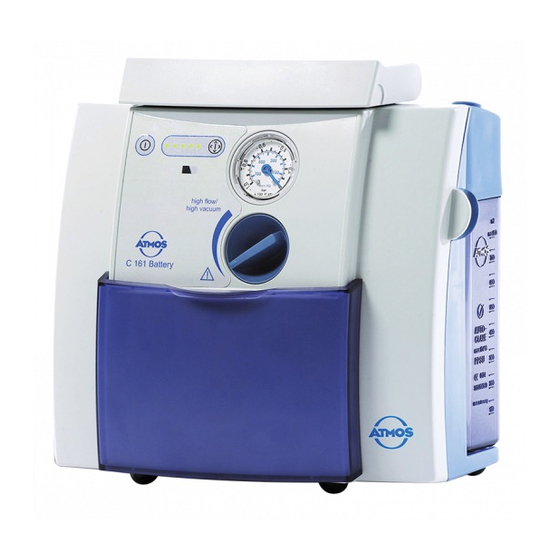

Function The ATMOS C 161 Battery is a very handy small suction unit. It is driven by an electromotive, maintenance-free diaphragm-type pump. During operation, the pump generates a vacuum within the hose system and the collection jar, thus sucking off secretions or fl uids (e.g. -
Page 5: Scope Of Supply
Scope of supply ● Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). In addition to the basic device, the scope of delivery comprises the following parts:... -
Page 6: Safety Advice
For your safety ● Prior to starting up the ATMOS C 161 Battery, read these operating instructions ● No warranty rights shall exist in the event of carefully. damage or failure caused by the use of non- ● ATMOS cannot guarantee perfect... -
Page 7: Setting Up And Starting Up
Battery capacity approx. 35 min. this might damage its diaphragms. Fig 4. ● ATMOS C 161 Battery / DDS: Always hold ready at least C 161 Battery one DDS bacterial filter, as the device cannot be operated without one! Fig 5. -
Page 8: General Operation Atmos C 161 Battery
General operation ATMOS C 161 Battery Prior to these notes please read the foregoing chapter of your respective version of the ATMOS C 161 Battery! ● Check the vacuum readout regularly! ● Attention: Suction procedures in the respi- ratory tract may only be implemented after appropriate instruction by hospital or special ●... -
Page 9: Operation Atmos C 161 Battery / Dds
Operation ATMOS C 161 Battery / DDS ● The DDS bacterial fi lter / oversuction stop ● The device cannot be operated without DDS bacterial fi lter / oversuction stop! is disposable. Therefore always hold ready a replace- Therefore the DDS bacterial fi lter must be ment DDS bacterial fi... -
Page 10: Operation Atmos C 161 Battery / R
Operation ATMOS C 161 Battery / R Holder for Receptal secretion ® container Plug the screw thread of the holder from the top into the borehole at the bottom side of the device. Screw it together with the provided screw nut. -
Page 11: Operation Atmos C 161 Battery / M
Operation ATMOS C 161 Battery / M Holder for MediVac secretion container Plug the screw thread of the holder from the top into the borehole at the bottom side of the device. Screw it together with the provided screw nut. -
Page 12: Notes On Cleaning
Cleaning Basic information For ATMOS C 161 Battery DDS: ● Change the bacterial fi lter! when being used by just one patient: The fi lter must be exchanged at least every two weeks. (see chapter 8, enclosed cleaning and servicing plan) - when being used by more than one patient: Change fi... -
Page 13: Cleaning The Unit's Surfaces
● The surfaces of the ATMOS C 161 Battery are resistant against all the surface disinfectants. Nevertheless after any length of time discolourations could possibly deve- lop. -
Page 14: Recommended Disinfectants For Instruments
Cleaning Recommended disinfectants for instruments Disinfectant Contents (in 100 g) Manufacturer GIGASEPT FF Succindialdehyde 11.0 g Schülke & Mayr, Norderstedt Dimethoxytetrahydrofurane 3.0 g (Application concentrate) Corrosion inhibitors Non-ionic tensides and fragrances Sekusept PLUS Glucoprotamine 25.0 g Ecolab, Düsseldorf / not for rinsing container Non-ionic tensides (Application concentrate) Solvents, complexing agents... -
Page 15: Cleaning And Servicing Plan
Cleaning and servicing plan for ATMOS C 161 Battery start date: name of the item: serial number: cleaning cleaning/exchange performed cleaning cleaning exchange of secretion exchange of exchange container of the suction hose, containe- bacterial fi lter of fi ngertip... - Page 16 These measures do not replace a reprocessing, performed by the suction hose is open and the vacuum gauge shows a basic vacuum manufacturer or by any certifi ed ATMOS partner before re-using of > -0.3 bar, then the bacterial fi lter must be exchanged immediately.
-
Page 17: Maintenance And Servicing
ATMOS C 161 Battery es or non-ATMOS consumables. every 3 months, even if the device is not used. ● In order to protect the user, the ATMOS C 161 Battery ● Battery-run devices should only be stored when they are fully must be reprocessed prior to passing on. -
Page 18: Trouble-Shooting
10.0 Trouble-shooting Prior to dispatch, the ATMOS C 161 Battery was subjected to an extensive functional test. If, nevertheless, a failure should appear, you may possibly clear it yourself if you follow these notes Problem Possible causes Remedy ● Unit does not start –... -
Page 19: Accessories, Consumables
313.0010.0 ® Rewind system 313.0080.0 Charging device for ATMOS Battery for suction hoses Car connectiong cable (12 V) for ATMOS Battery 313.0436.0 (also for operation) Trolley on four castors, self mounting 320.0070.2 Carrying bag with practical storage pockets for consumables 313.0011.0... -
Page 20: Spare Parts
11.0 Accessories, consumables and spare parts 11.3 Spare parts Hider 313.0022.0 Self-adhesive elastic buffer 5J-5017 000.0018.0 Bacterial fi lter/overfl ow protection 340.0054.0 Plug GPN 300 000.0824.0 Ball for overfl ow protection 000.0839.0 Power supply cord 008.0866.0... -
Page 21: Technical Specifi Cations
12.0 Technical specifi cations Air fl ow rate of pump 20 ± 2 l/min Max. vacuum -76 kPa* ( -760 mbar; -570 mmHg) ±3kPa Vacuum readout -1...0 bar (± 25 mbar) (mm Hg; kPa)* Additional air regulation mechanical regulating valve Collection jar 1l DDS secretion container, 1l Receptal container system or... -
Page 22: Checking / Reprocessing / Disposal
A regular check of the condensate controller on the rear side is necessary. Pull out the plastic plug and check the colour at the hose end. In case of discolouration/deposits a maintenance measure must be performed by a certifi ed ATMOS service partner! 13.2 Reprocessing... -
Page 23: Notes On Emc
14.1 Guidelines and Manufacturer´s Declaration - Emissions The ATMOS C 161 Battery is intended for use in the electromagnetic environment specifi ed below. The customer or user of the ATMOS C 161 Battery should ensure that it is used in such an environment. - Page 24 ATMOS C 161 Battery The ATMOS C 161 Battery is intended for use in the electromagnetic environment specifi ed below. The customer or user of the ATMOS C 161 Battery should ensure that it is used in such an environment.
- Page 25 If the measured field strength at the location where the ATMOS C 161 Battery is used exceeds the above compliance level, the ATMOS C 161 Battery is to be observed to verify the intended use. If abnormal performance characteristics are noted, additional measures might be necessary, e. g. a changed arrangement or another location for the device.
- Page 26 ATMOS C 161 Battery The ATMOS C 161 Battery is intended for use in electromagnetic environment in which radiated disturbances are controlled. The customer or user of the ATMOS C 161 Battery can help prevent electromagnetic interference by...
-
Page 27: Declaration Of Conformity
Declaration of conformity... -
Page 28: General Standard Terms And Conditions
In such cases, our liability is also limited - For second-hand equipment, the period of warranty shall ATMOS MedizinTechnik GmbH & Co. KG to damage which is regarded as typical for that case. be reduced to a period of twelve months.
