UM1525
Connecting modules on the prototyping board
Figure 11
illustrates the connections between the STM32F0 Discovery and the DIL24
socket.

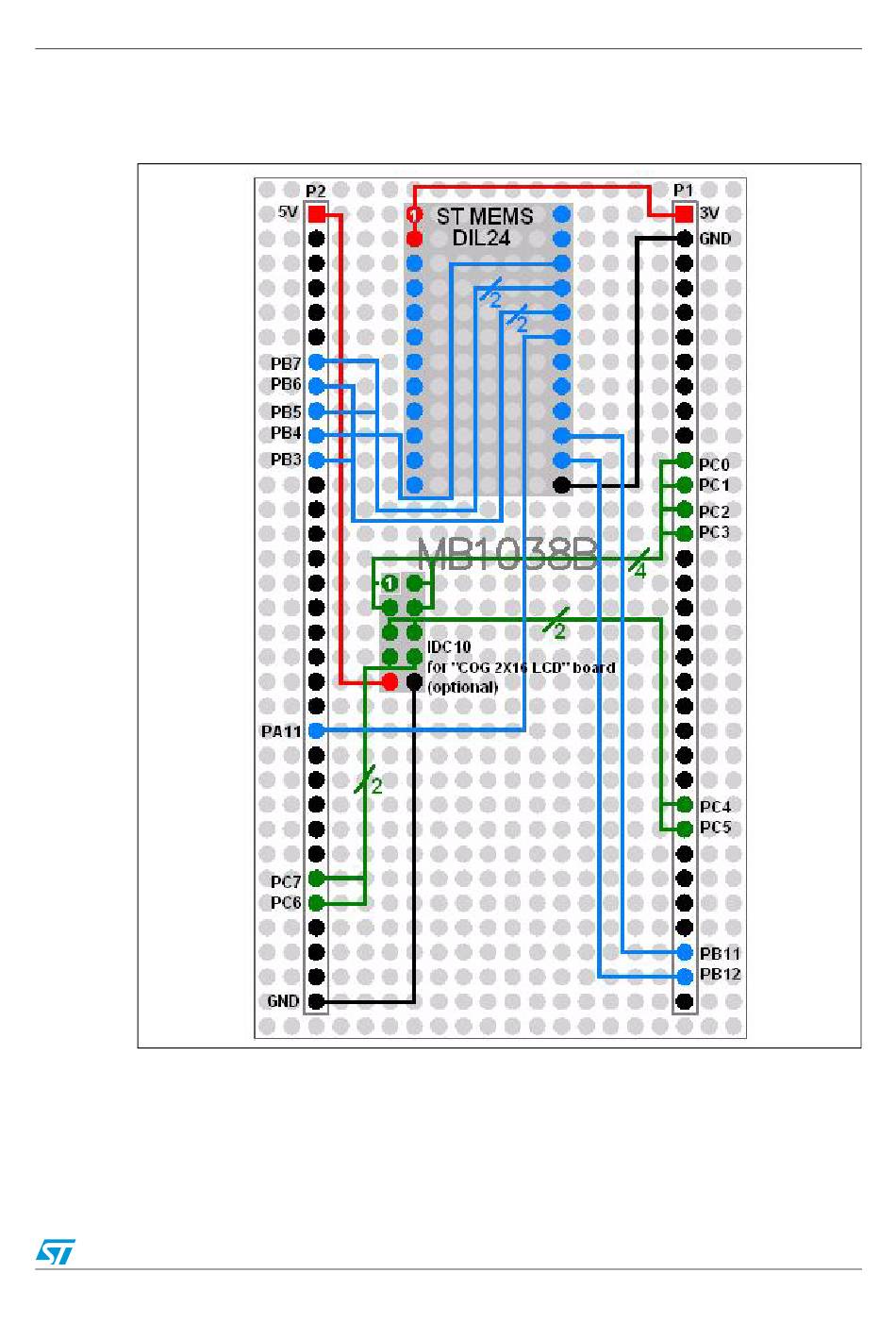

Figure 11. DIL24 socket connections
Doc ID 022910 Rev 2
31/41
