UM1525
4.2.1

Using ST-LINK/V2 to program/debug the STM32 F0 on board

To program the STM32 F0 on board, simply plug in the two jumpers on CN2, as shown in
Figure 8
the STM32F051R8T6 of the STM32F0DISCOVERY.

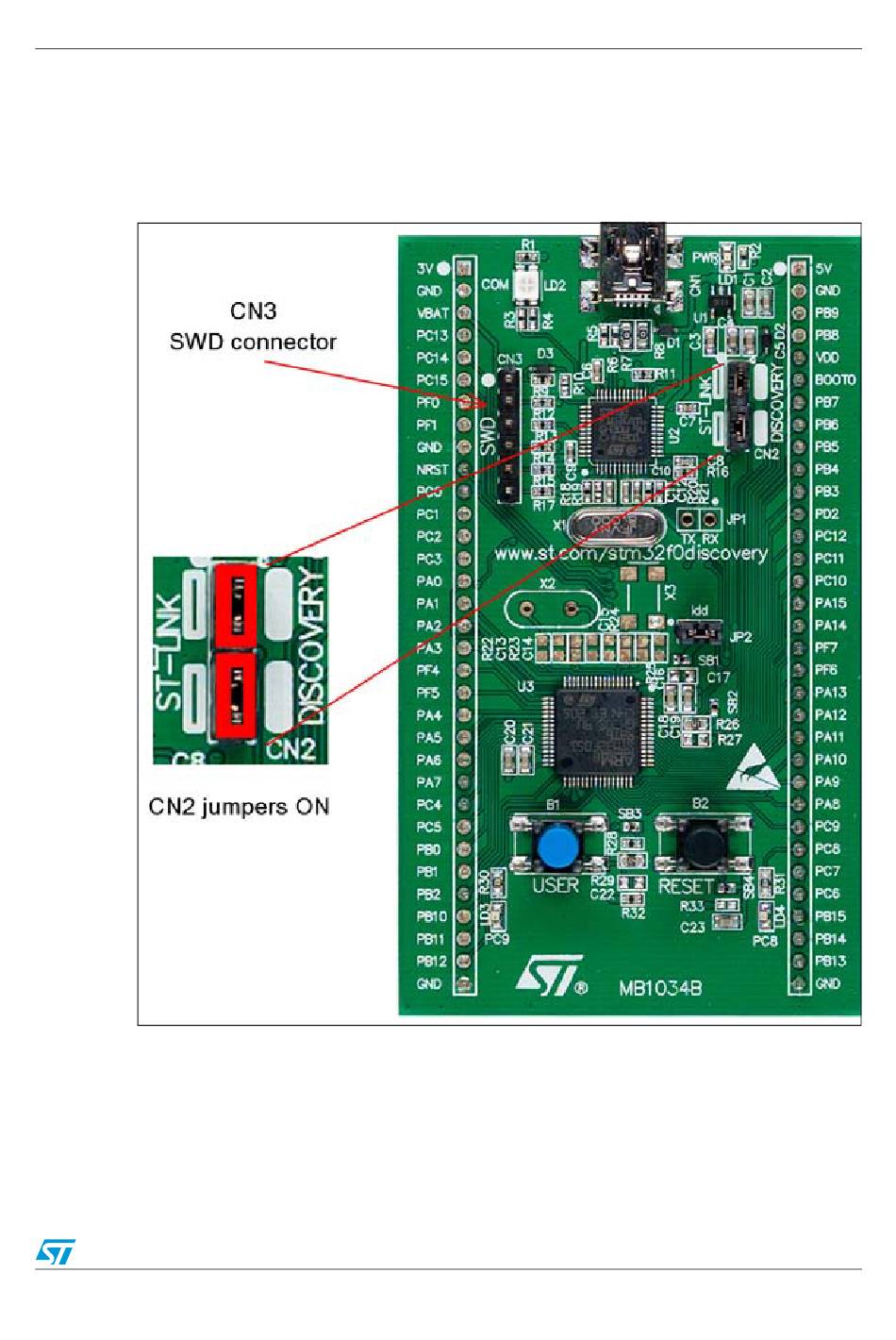

Figure 8.
in red, but do not use the CN3 connector as that could disturb communication with
STM32F0DISCOVERY connections image
Doc ID 022910 Rev 2
Hardware and layout
15/41
