UM1525
Connecting modules on the prototyping board
The
Figure 10

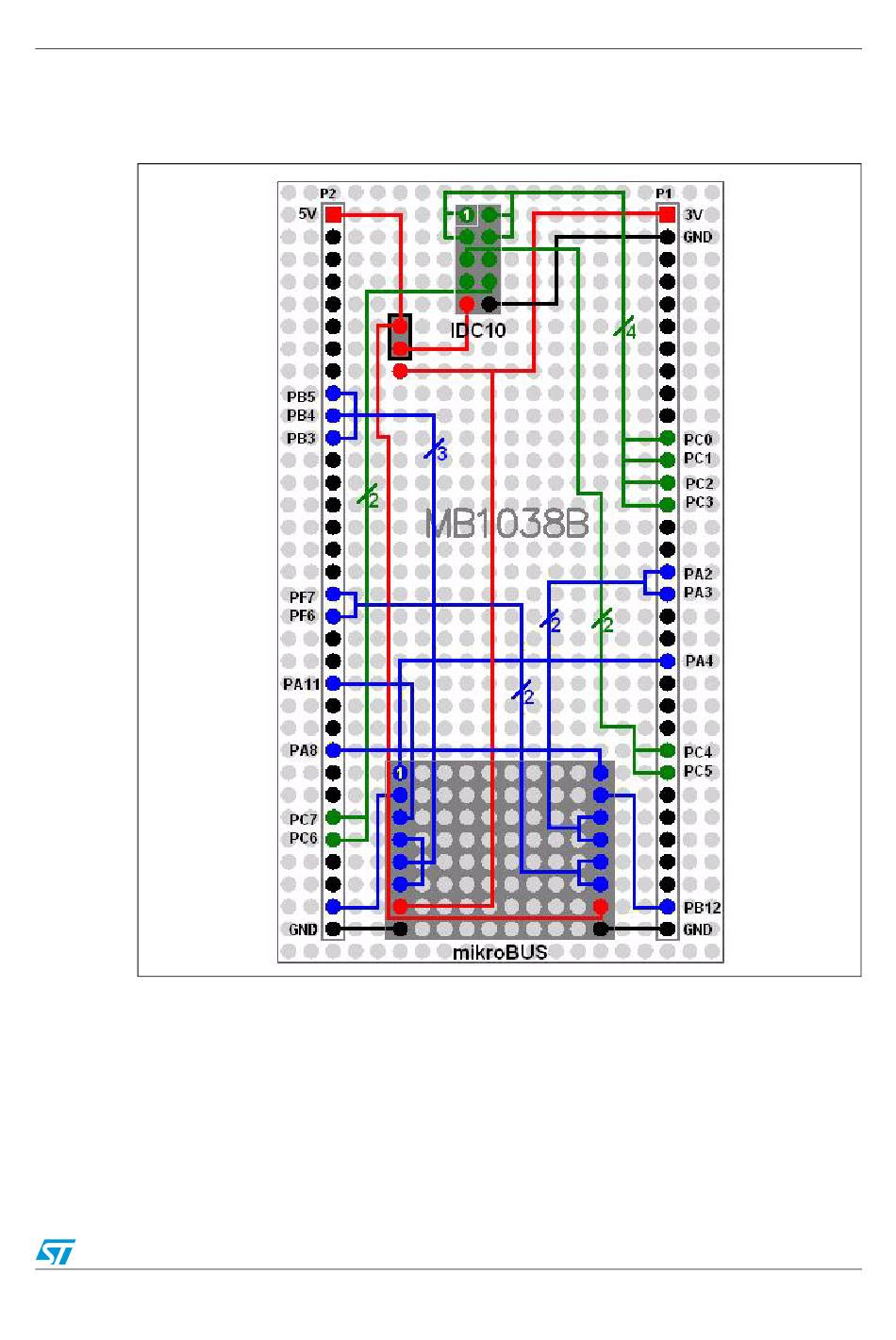

illustrates the connections between the STM32F0 Discovery and the 2
connectors, IDC10 and mikroBUS™.
Figure 10. Using IDC10 and mikroBUS™ connectors
Doc ID 022910 Rev 2
29/41
