UM2661
User manual
SPC58XXADPT100S
Introduction
This document provides guidelines for describing, configuring and using the mini module SPC58XXADPT100S.

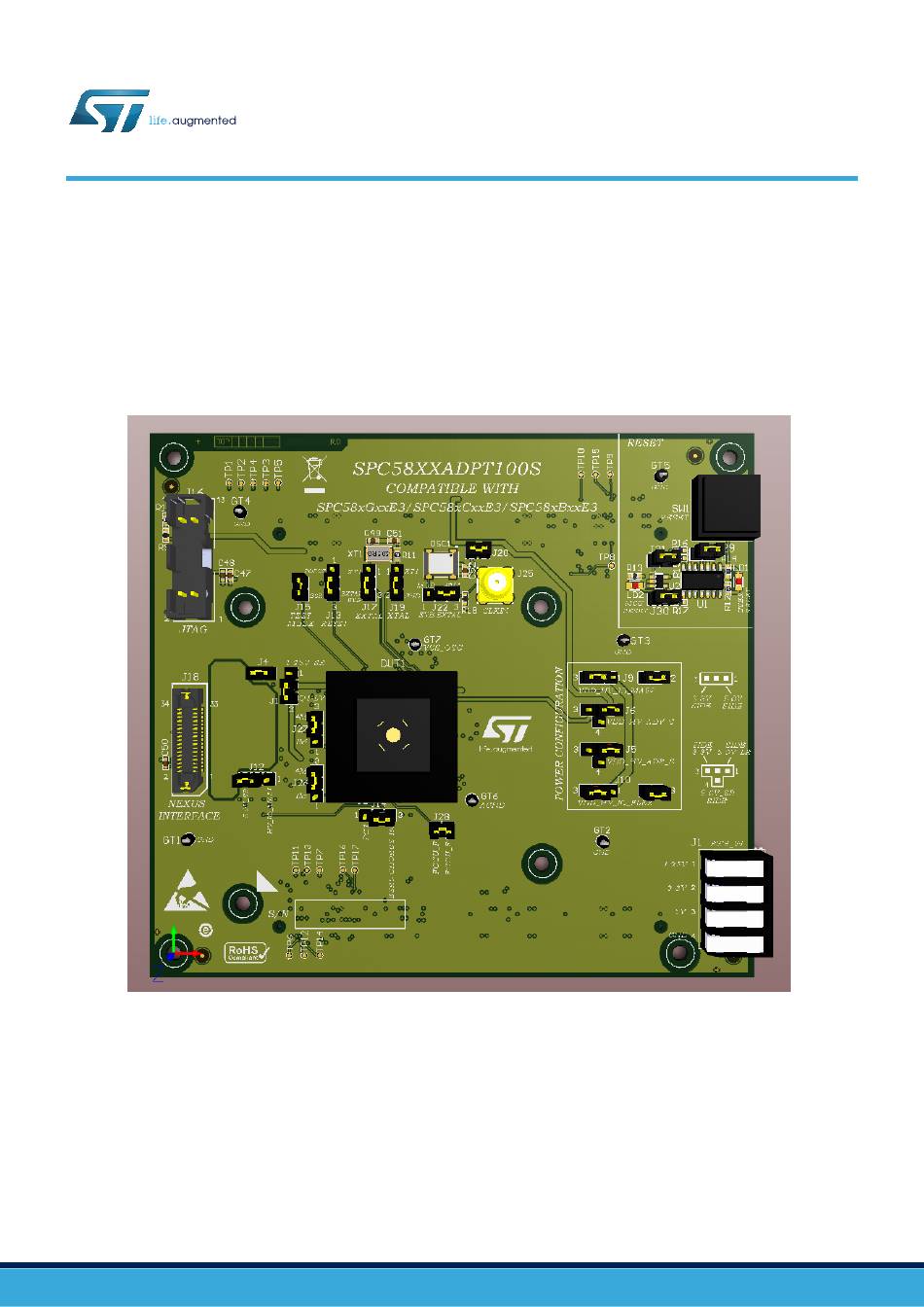

Figure 1.
Overview of SPC58XXADPT100S mini module - top
UM2661 - Rev 1 - January 2020
www.st.com
For further information contact your local STMicroelectronics sales office.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPC58XXADPT100S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST SPC58XXADPT100S

  • Page 1: Figure 1. Overview Of Spc58Xxadpt100S Mini Module - Top

    UM2661 User manual SPC58XXADPT100S Introduction This document provides guidelines for describing, configuring and using the mini module SPC58XXADPT100S. Figure 1. Overview of SPC58XXADPT100S mini module - top UM2661 - Rev 1 - January 2020 www.st.com For further information contact your local STMicroelectronics sales office.
  • Page 2: Overview

    STMicroelectronics SPC58xGxxE3, SPC58xCxxE3, SPC58xBxxE3 microcontrollers in TQFP100 package with exposed pad down. The SPC58XXADPT100S mini module is designed to be connected onto the SPC57xxMB motherboard, offering a mechanism for easy customer evaluation of the supported devices, and facilitating hardware and software development.
  • Page 3: Supported Device

    UM2661 Supported device • Mini CD with user manual Supported device SPC58XXADPT100S mini module supports the following STMicroelectronics family of Microcontrollers in TQFP100 package with exposed pad down: • SPC58xGxxE3 • SPC58xCxxE3 • SPC584BxxE3 • SPC582BxxE3 UM2661 - Rev 1...
  • Page 4: Spc58Xxadpt100S Features

    UM2661 SPC58XXADPT100S features SPC58XXADPT100S features Mini module features SPC58XXADPT100S mini module board has the following features: • Connector for external power supplies input: 5 V, 3.3 V, 1.25 V (for stand-alone mode) • Reset button with driver and led indicator •...
  • Page 5: Figure 3. Spc58Xxadpt100S Top Component View

    UM2661 Hardware dimension and PCB component view Figure 3. SPC58XXADPT100S top component view UM2661 - Rev 1 page 5/23...
  • Page 6: Pin Numbering For Jumpers

    UM2661 Pin numbering for jumpers Figure 4. SPC58XXADPT100S bottom component view Pin numbering for jumpers Close to selection jumper (both 3-pin and 4-pin), are shown in silkscreen the indications of connections. See below some examples. Figure 5. Selection jumper scheme...
  • Page 7: Hardware And Jumper Settings

    When the mini module is plugged into the motherboard, power is supplied directly by the motherboard. In this setup, the external power supply input available on the mini module should NOT be used. When the SPC58XXADPT100S mini module is used as a stand-alone board, external power supplies must be used (5 V, 3.3 V, 1.25 V).
  • Page 8: Microcontrollers Configuration

    UM2661 Microcontrollers configuration Microcontrollers configuration The following jumpers need to configure the board for used STMicroelectronics microcontroller: SPC58xCxxE3 Table 2. Microcontroller SPC58xCxxE3 configuration related jumpers Jumper Description Default VDD_HV_IO_FLEX voltage configuration: (Used only for SPC58xCxxE3) • 1-2 5.0V_SR (5.0V_SR) • 2-3 3.3V_SR Device pin 50 function configuration: •...
  • Page 9: Table 4. Microcontroller Spc58Xgxxe3 Configuration Related Jumpers

    UM2661 Microcontrollers configuration Jumper Description Default Device pin 50 function configuration: • 1-2 PA[15] (Connect pin 50 to PA[15]) • 2-3 VDD_LV RSTIN configuration: • 1-2 PORST (PORST) • 2-3 ESR0 Device pin 95 function configuration: • 1-2 PC[12] (Connect pin 95 to VDD_HV_IO_FLEX) •...
  • Page 10: Port Configuration

    UM2661 Port configuration Jumper Description Default Device pin 68 function configuration: • 1-2 PM[14] (Connect pin 68 to ESR0) • 2-3 ESR0 Device pin 1 function configuration: • 1-2 PD[14] (Connect pin 1 to VDD_LV) • 2-3 VDD_LV Device pin 86 function configuration: •...
  • Page 11: Reset Circuit

    UM2661 Reset circuit Reset circuit The mini module supports different way to reset the microcontroller. To use and perform the reset driving there are different jumper and switch: Table 7. Reset related jumpers Jumper Description Default Reset push button Open Connect the external reset to the reset driver for ESR0 and PORST pins Close Connect the external reset to ESR0 pin...
  • Page 12: Connectors

    UM2661 Connectors Connectors The mini module has the following connectors: Table 9. Connectors Connectors Description 14-pin header connector for JTAG port 34-pin SAMTEC connector for Nexus 2 Fault Collection and Control Unit (FCCU) pin, for failure notification J23, J24 2 X SAMTEC QSH series, 240 way connector to connect mini module to Motherboard External power supplies input (5V, 3.3V, 1.25V) SMA Connector for External Clock Input UM2661 - Rev 1...
  • Page 13: Bom And Schematics

    UM2661 BOM and schematics BOM and schematics Table 10. Bill of material Designator Part Number EI Comment Part Description C1, C7, C25, C42, Mult. Cer. cap. 16V 0805 - Automotive 2.2µF C43, C46, C53 Series - NOT MOUNTED !!! C2, C5, C8, C11, C13, C15, C20, C22, C26, CCERSMD104-0603M 100nF...
  • Page 14 UM2661 Designator Part Number EI Comment Part Description Male Strip 3 poles See Mech Part (Close J26, J27 STRIP3PM STRIP3PM pin 2 and 3) STRIP2PM STRIP2PM Male Strip 2 poles Jumper SMD - CLOSE!!! - With a solder drop !!! Jumper SMD - Close with a solder drop JP2, JP3, JP5, JP7 (Close pin 1 and 2)
  • Page 15: Schematics

    Schematics Figure 6. Power and decoupling Po w e r a n d De c ou p l i n g 5.0V_LR 3.3V_SR 5.0V_SR 1.25V_SR 1.25V_SR 3.3V_SR 5.0V_SR VDD_HV_ADR_S 5.0V_SR 1/10W DEFAULT 2.2uF 100nF 10nF 0805 1-2 CLOSED TYCO-1437671-6 0805 0603 0603 N.M.
  • Page 16: Figure 7. Signals

    Figure 7. Signals S ig n a ls TP2 TP3 TP4 PD[0..15] DUT1B PD[0..15] TCK / PA[6] PD[0] TMS/Txp TMS / PA[7] TDI/Txn TDI / PA[8] PA[0..15] PA[0..15] PD[4] TDO/Rxp TDO / PA[9] PD[5] JCOMP/Rxn JCOMP / PA[5] PD[6] PD[7] Jumper setting PA[0] PD[8]...
  • Page 17: Figure 8. Jtag, Nexus Interface, Reset And Crystal Oscillator

    Figure 8. JTAG, Nexus interface, Reset and crystal oscillator Jtag interface VDD_HV_IO_MAIN VDD_HV_IO_MAIN JTAG Connector J TAG, Ne x u s In t e r fa c e , Re s e t a n d Cr ys t a l Os c i l l a t or TDI/Txn 10K DNP NOT MOUNTED...
  • Page 18: Figure 9. Daughter Card To Motherboard Connectors

    Figure 9. Daughter card to motherboard connectors DAUGHTE R CARD TO MOTHE RBOARD CONNE CTORS PortA PortB PortC PortD PortF PortG PortH PortI PortM PortE PA[0..15] PB[0..15] PC[0..15] PD[0..15] PE[0..15] PF[0..15] PG[0..15] PH[0..15] PI[0..15] PM[0..15] PA[0..15] PB[0..15] PC[0..15] PD[0..15] PE[0..15] PF[0..15] PG[0..15] PH[0..15]...
  • Page 19: Revision History

    UM2661 Revision history Table 11. Document revision history Date Version Changes 08-Jan-2020 Initial release. UM2661 - Rev 1 page 19/23...
