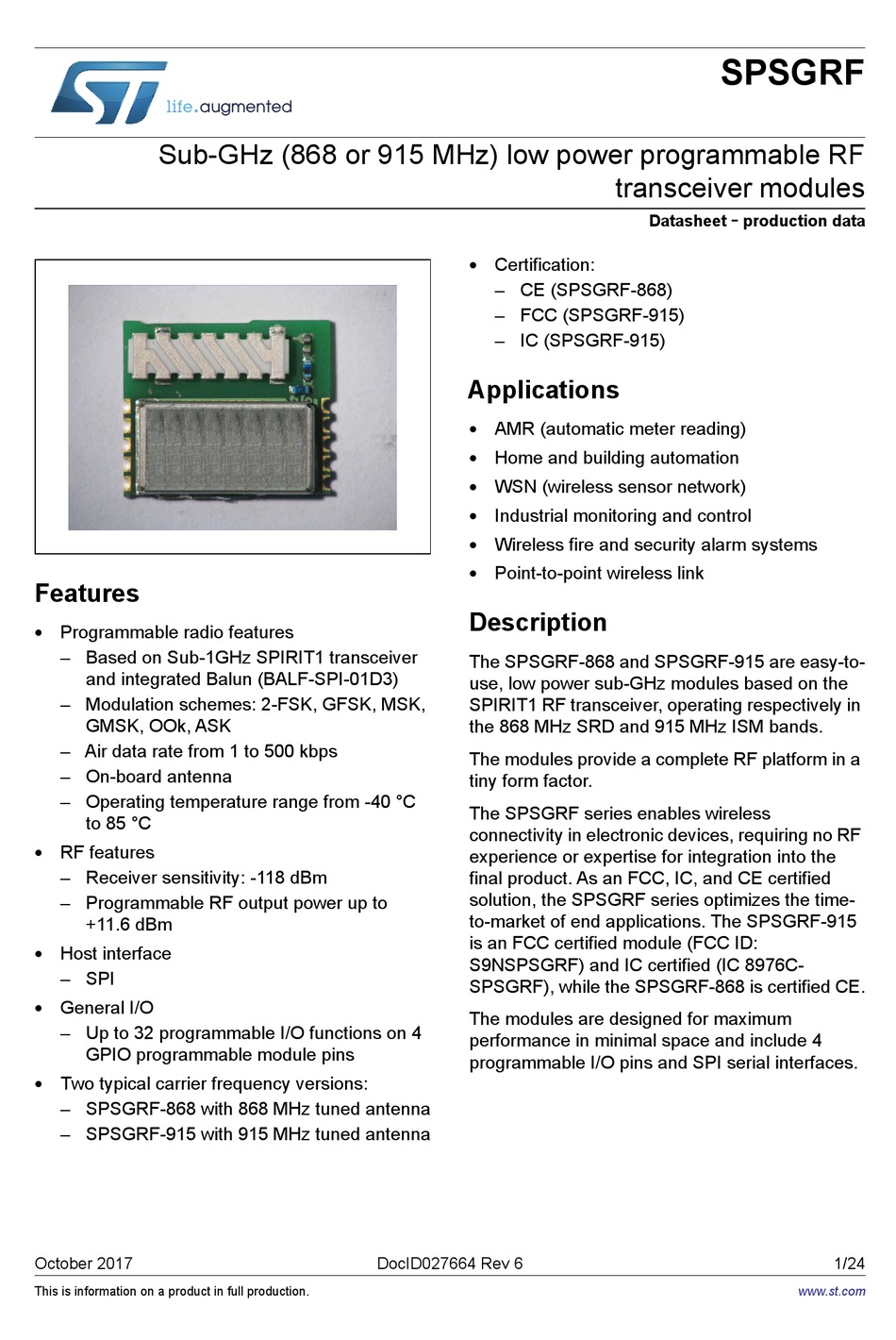

ST SPSGRF Datasheet

Sub-GHz (868 or 915 MHz) low power programmable RF
Features
 Programmable radio features
– Based on Sub-1GHz SPIRIT1 transceiver
and integrated Balun (BALF-SPI-01D3)
– Modulation schemes: 2-FSK, GFSK, MSK,
GMSK, OOk, ASK
– Air data rate from 1 to 500 kbps
– On-board antenna
– Operating temperature range from -40 °C
to 85 °C
 RF features
– Receiver sensitivity: -118 dBm
– Programmable RF output power up to
+11.6 dBm
 Host interface
– SPI
 General I/O
– Up to 32 programmable I/O functions on 4
GPIO programmable module pins
 Two typical carrier frequency versions:
– SPSGRF-868 with 868 MHz tuned antenna
– SPSGRF-915 with 915 MHz tuned antenna
October 2017
This is information on a product in full production.
 Certification:
– CE (SPSGRF-868)
– FCC (SPSGRF-915)
– IC (SPSGRF-915)
Applications
 AMR (automatic meter reading)
 Home and building automation
 WSN (wireless sensor network)
 Industrial monitoring and control
 Wireless fire and security alarm systems
 Point-to-point wireless link
Description
The SPSGRF-868 and SPSGRF-915 are easy-to-
use, low power sub-GHz modules based on the
SPIRIT1 RF transceiver, operating respectively in
the 868 MHz SRD and 915 MHz ISM bands.
The modules provide a complete RF platform in a
tiny form factor.
The SPSGRF series enables wireless
connectivity in electronic devices, requiring no RF
experience or expertise for integration into the
final product. As an FCC, IC, and CE certified
solution, the SPSGRF series optimizes the time-
to-market of end applications. The SPSGRF-915
is an FCC certified module (FCC ID:
S9NSPSGRF) and IC certified (IC 8976C-
SPSGRF), while the SPSGRF-868 is certified CE.
The modules are designed for maximum
performance in minimal space and include 4
programmable I/O pins and SPI serial interfaces.
DocID027664 Rev 6
SPSGRF
transceiver modules
-
Datasheet production data
1/24
www.st.com
