Hardware and layout
4.2

Embedded ST-LINK/V2

The ST-LINK/V2 programming and debugging tool is integrated on the
STM32F0DISCOVERY. The embedded ST-LINK/V2 can be used in 2 different ways
according to the jumper states (see
Program/debug the MCU on board,
Program/debug an MCU in an external application board using a cable connected to
SWD connector CN3.
The embedded ST-LINK/V2 supports only SWD for STM32 devices. For information about
debugging and programming features refer to user manual UM1075 (ST-LINK/V2 in-circuit
debugger/programmer for STM8 and STM32) which describes in detail all the ST-LINK/V2
features.

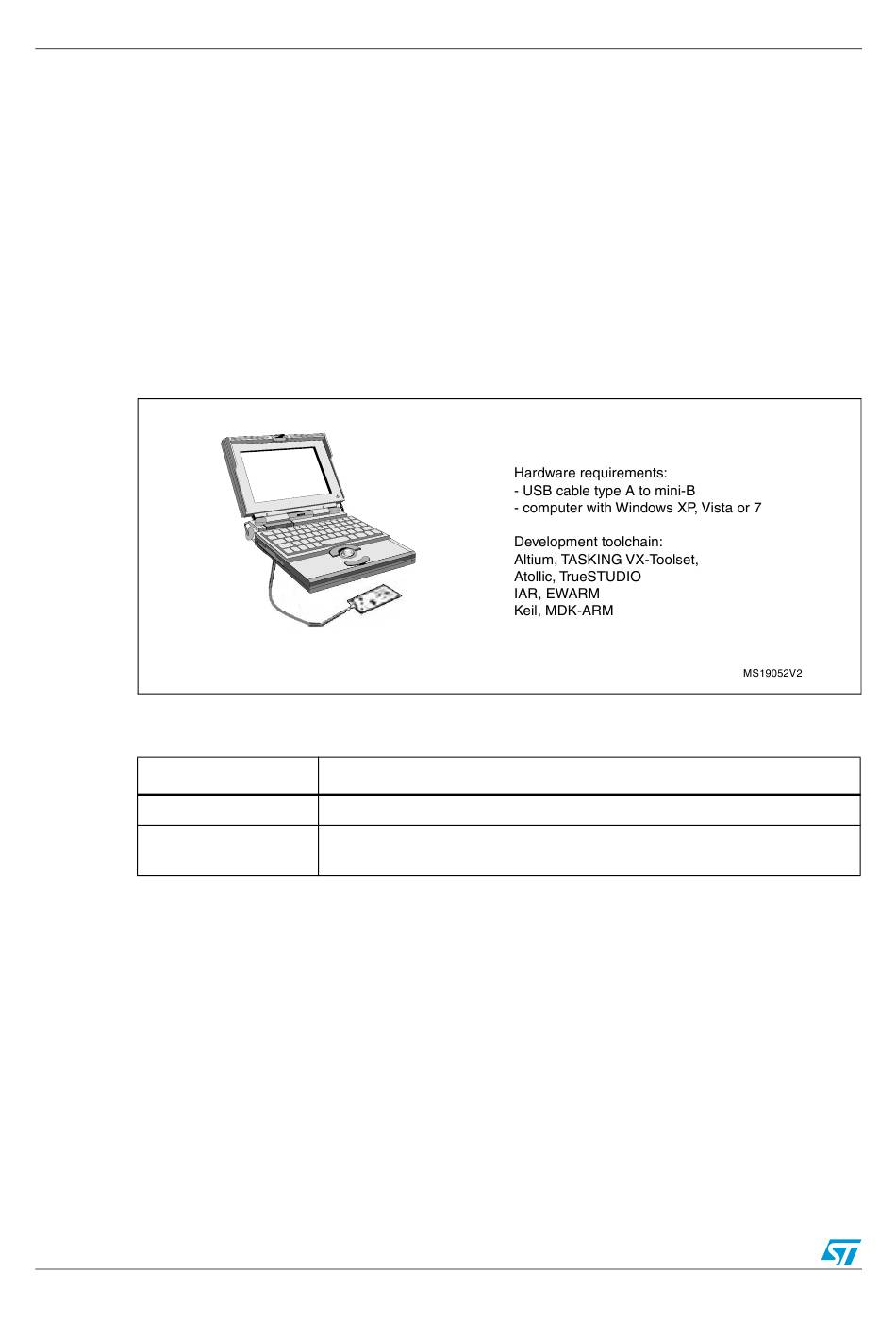

Figure 7.
Table 3.
Jumper state
Both CN2 jumpers ON
Both CN2 jumpers OFF
14/41
Typical configuration
Jumper states
ST-LINK/V2 functions enabled for on board programming (default)
ST-LINK/V2 functions enabled for application through external CN3
connector (SWD supported)
Doc ID 022910 Rev 2
Table
3):
Description
UM1525
