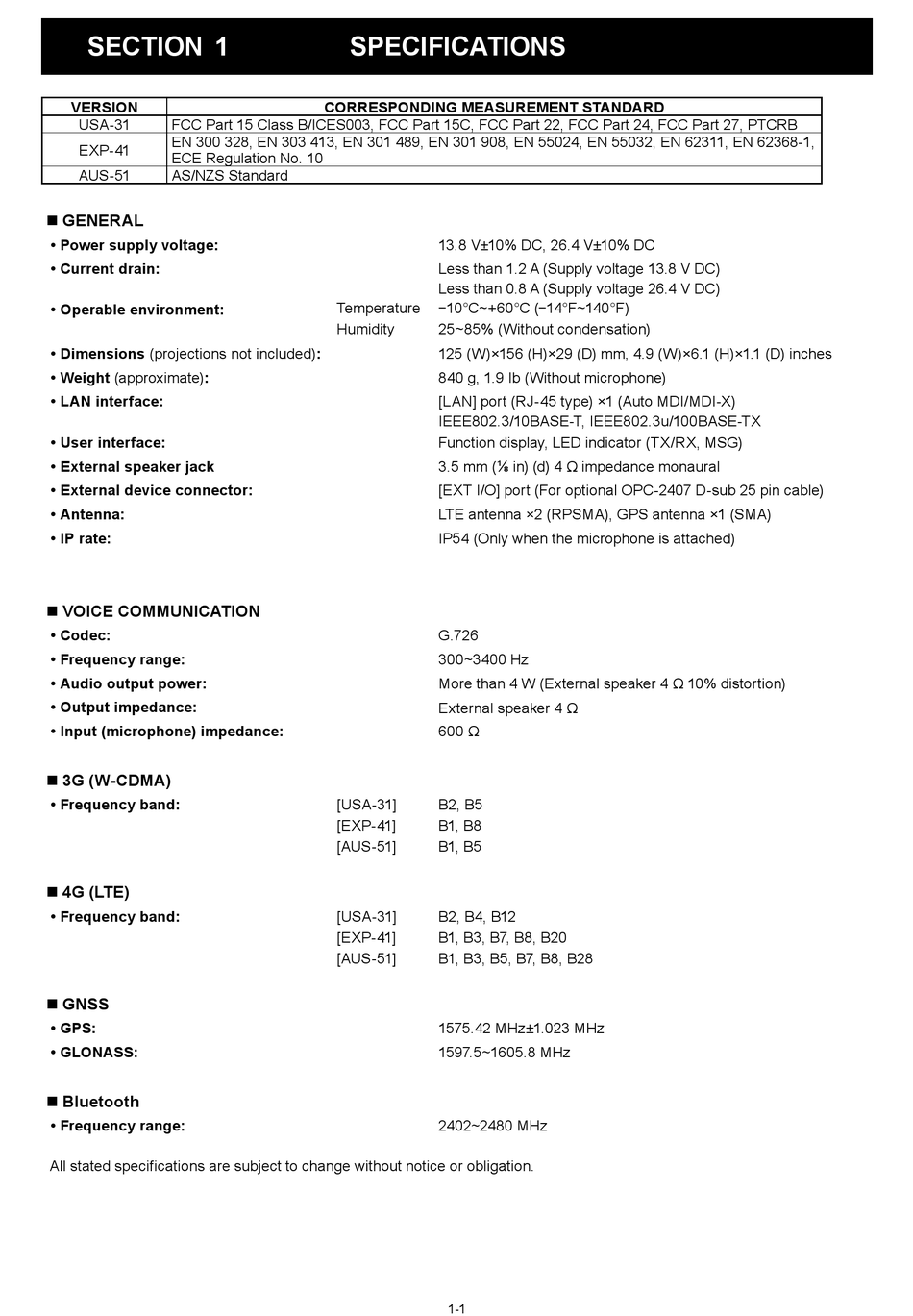

SECTION 1
VERSION
USA-31 FCC Part 15 Class B/ICES003, FCC Part 15C, FCC Part 22, FCC Part 24, FCC Part 27, PTCRB
EN 300 328, EN 303 413, EN 301 489, EN 301 908, EN 55024, EN 55032, EN 62311, EN 62368-1,
EXP-41
ECE Regulation No. 10
AUS-51 AS/NZS Standard
 GENERAL
• Power supply voltage:
• Current drain:
• Operable environment:
• Dimensions (projections not included):
• Weight (approximate):
• LAN interface:
• User interface:
• External speaker jack
• External device connector:
• Antenna:
• IP rate:
 VOICE COMMUNICATION
• Codec:
• Frequency range:
• Audio output power:
• Output impedance:
• Input (microphone) impedance:
 3G (W-CDMA)
• Frequency band:
 4G (LTE)
• Frequency band:
 GNSS
• GPS:
• GLONASS:
 Bluetooth
• Frequency range:
All stated specifications are subject to change without notice or obligation.

SPECIFICATIONS

CORRESPONDING MEASUREMENT STANDARD
13.8 V±10% DC, 26.4 V±10% DC
Less than 1.2 A (Supply voltage 13.8 V DC)
Less than 0.8 A (Supply voltage 26.4 V DC)
Temperature −10°C~+60°C (−14°F~140°F)
Humidity 25~85% (Without condensation)
125 (W)×156 (H)×29 (D) mm, 4.9 (W)×6.1 (H)×1.1 (D) inches
840 g, 1.9 Ib (Without microphone)
[LAN] port (RJ-45 type) ×1 (Auto MDI/MDI-X)
IEEE802.3/10BASE-T, IEEE802.3u/100BASE-TX
Function display, LED indicator (TX/RX, MSG)
3.5 mm (⅛ in) (d) 4 Ω impedance monaural
[EXT I/O] port (For optional OPC-2407 D-sub 25 pin cable)
LTE antenna ×2 (RPSMA), GPS antenna ×1 (SMA)
IP54 (Only when the microphone is attached)
G.726
300~3400 Hz
More than 4 W (External speaker 4 Ω 10% distortion)
External speaker 4 Ω
600 Ω
[USA-31] B2, B5
[EXP-41] B1, B8
[AUS-51] B1, B5
[USA-31] B2, B4, B12
[EXP-41] B1, B3, B7, B8, B20
[AUS-51] B1, B3, B5, B7, B8, B28
1575.42 MHz±1.023 MHz
1597.5~1605.8 MHz
2402~2480 MHz
1-1
