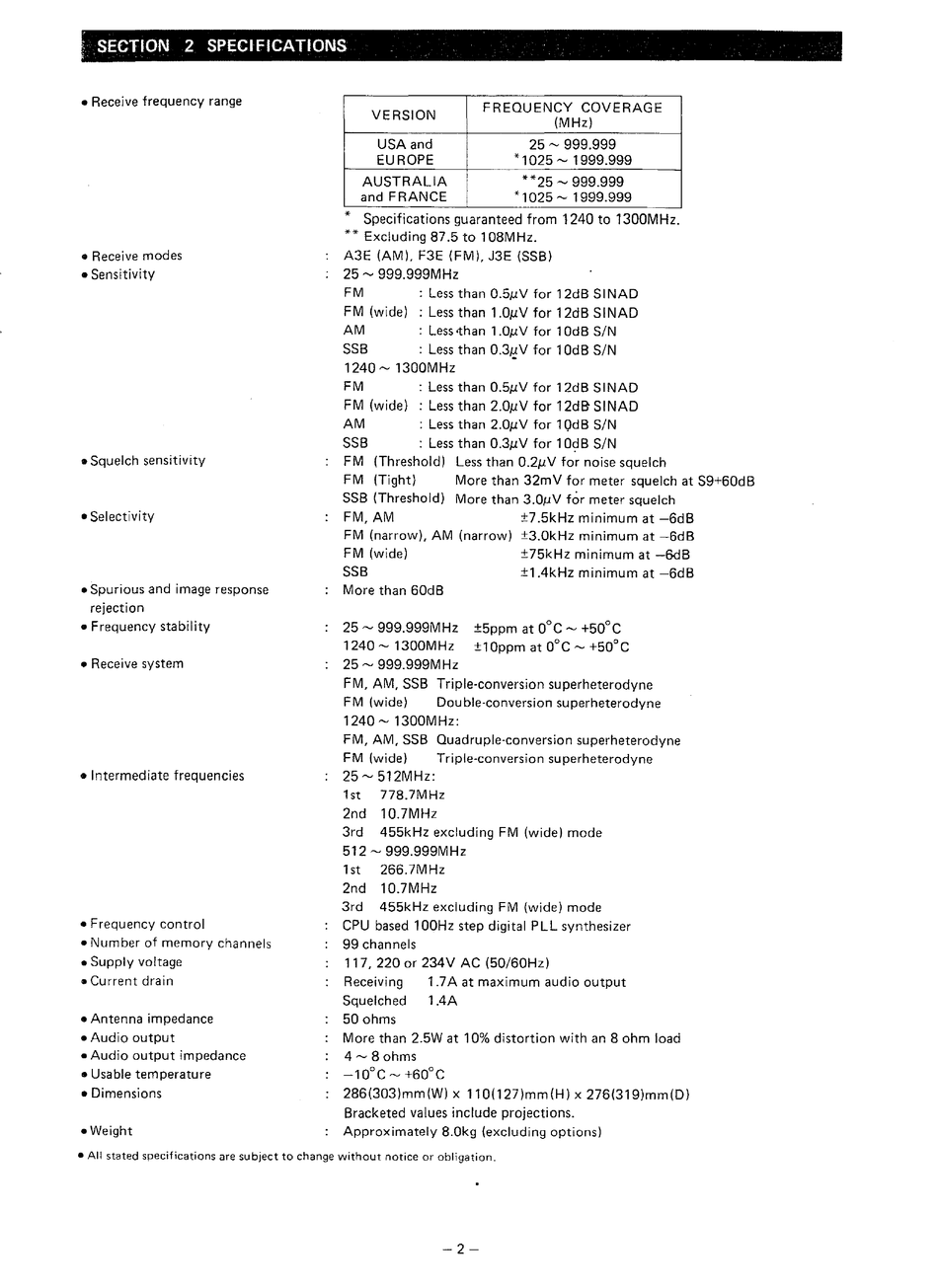

. _SECTION 2 SPECIFICATIONS _
• Receive frequency range
• Receive modes
• Sensitivity
• Squelch sensitivity
• Selectivity
• Spurious and image response
rejection
• Frequency stability
• Receive system
• Intermediate frequencies
• Frequency control
• Number of memory channels
• Supply voltage
• Current drain
• Antenna impedance
• Audio output
• Audio output impedance
• Usable temperature
• Dimensions
•Weight
VERSION
FREQUENCY COVERAGE
(MHz)
USA and 25
~
999.999
EUROPE * 1025
~
1999.999
AUSTRALIA
**25
~
999.999
and FRANCE
* 1 025 - 1999.999
* Specifications guaranteed from 1240 to 1300MHz.
**Excluding 87.5 to 108MHz.
A3E (AM), F3E (FM), J3E (SSB)
25
~
999.999MHz
FM : Less than 0.5/..tV for 12dB Sl NAD
FM (wide) : Less than 1.0J1V for 12dB SINAD
AM : Less •than 1.0J1V for 1 OdB S/N
SSB : Less than 0.3J!Y for 1 OdB S/N
1240 ~ 1300MHz
FM :Less than 0.5J1V for 12dB SINAD
FM (wide) : Less than 2.0J1V for 12dB- SINAD
AM : Less than 2.0J1V for 1 QdB S/N
SSB : Less than 0.3J1V for 1
O~B
S/N
FM (Threshold) Less than 0.2J1V for noise squelch
FM (Tight) More than 32mV for meter squelch at S9+60dB
SSB (Threshold) More than 3.0J1V for meter squelch
FM, AM ±7.5kHz minimum at -6dB
FM (narrow), AM (narrow) ±3.0kHz minimum at -6dB
FM (wide) ±75kHz minimum at -6dB
SSB ±1.4kHz minimum at -6dB
More than 60dB
25 ~ 999.999MHz
1240 ~ 1300MHz
25
~
999.999MHz
±5ppm at 0° C ~ +50° C
±10ppm at 0°C- +50°C
FM, AM, SSB Triple-conversion superheterodyne
FM (wide) Double-conversion superheterodyne
1240~
1300MHz:
FM, AM, SSB Quadruple-conversion superheterodyne
FM (wide) Triple-conversion superheterodyne
25~
512MHz:
1st 778.7M Hz
2nd 10.7MHz
3rd 455kHz excluding FM (wide) mode
512 ~ 999.999MHz
1st 266.7MHz
2nd 10.7MHz
3rd 455kHz excluding FM (wide) mode
CPU based 100Hz step digital PLL synthesizer
99 channels
117, 220 or 234 V AC (50/60Hz)
Receiving
Squelched
50 ohms
1.7 A at maximum audio output
1.4A
More than 2.5W at 10% distortion with an 8 ohm load
4 ~ 8 ohms
-10°C
~
+60°C
286(303)mm(W) x 110(127)mm(H) x 276(319)mm(D)
Bracketed values include projections.
Approximately 8.0kg (excluding options)
• All stated specifications are subject to change without notice or obligation.
