SECTION 3

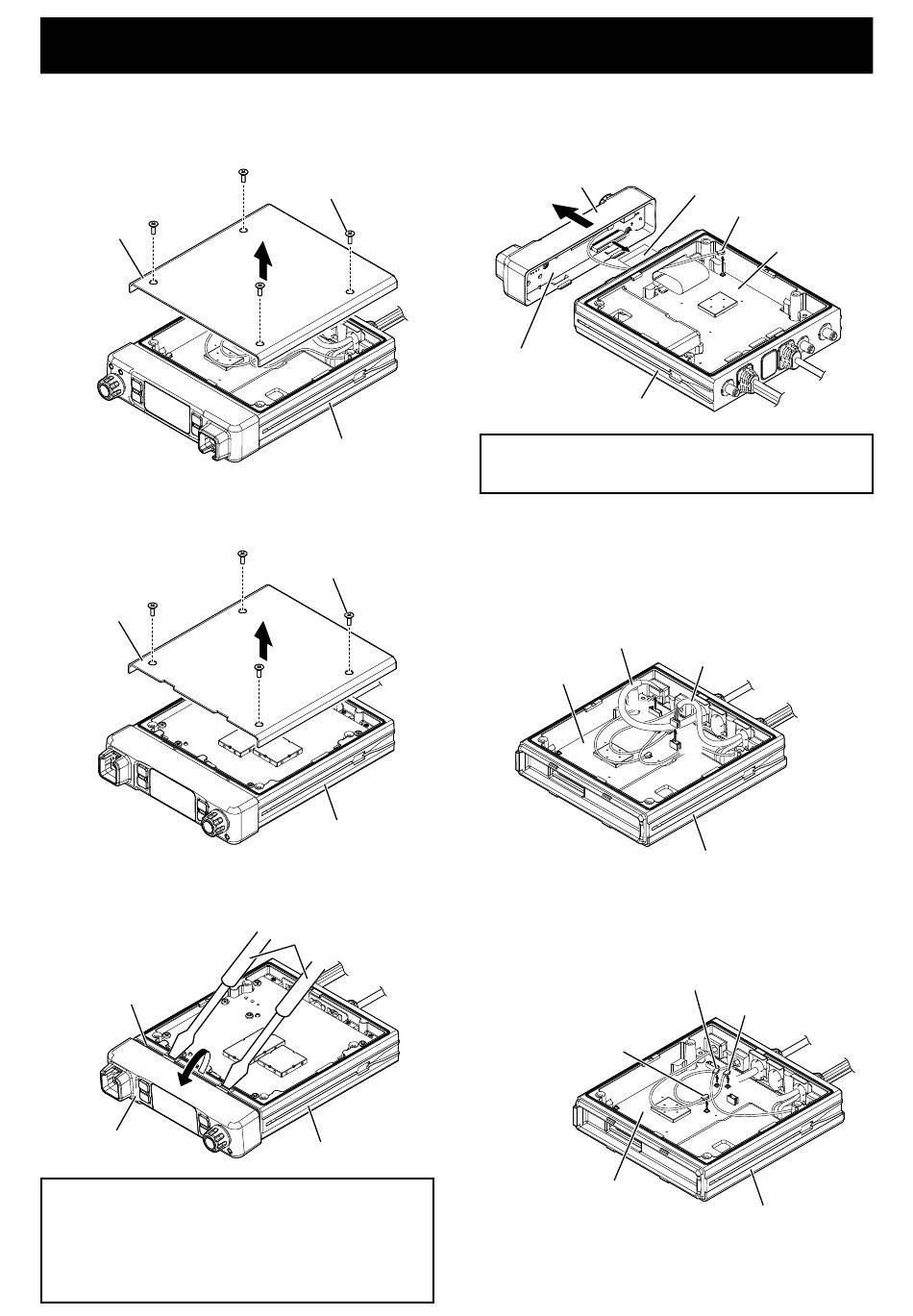

1. REMOVING THE FRONT PANEL
1) Remove the 4 screws, and then the top cover from the
chassis.
Top cover
2) Remove the 4 screws, and then the bottom cover from
the chassis.
Bottom cover
3) Lift both tabs using flat screwdrivers and pull forward on
the front panel as shown in the illustration below.
Front seal
Front panel
WARNING: NEVER use your fingernail to lift the tabs.
Otherwise, you may cause injury.
BE CAREFUL: The front seal is attached between the
front panel and the chassis. If the front seal is damaged,
replace it to a new one to maintain the dustproof/
waterproof performance.

DISASSEMBLY INSTRUCTIONS

Screws ×4
Chassis
Screws ×4
Chassis
Flat screwdrivers
Chassis
4) Disconnect the Bluetooth cable from the MAIN-A UNIT,
and the flat cable from the FRONT-D UNIT, and then
remove the front panel from the chassis.
Front panel
FRONT-D UNIT
Chassis
BE CAREFUL when you disconnect the Bluetooth
cable from the MAIN-A UNIT, and the flat cable from the
FRONT-D UNIT. To keep from damaging them.
2. REMOVING THE MAIN-A UNIT
1) Disconnect the LAN and external speaker cables from
the MAIN-A UNIT.
LAN cable
MAIN-A UNIT
2) Disconnect the main antenna, sub antenna, and GPS
antenna cables from the MAIN-A UNIT.
Main antenna cable
MAIN-A UNIT
3-1
Flat cable
Bluetooth cable
J2 J2
MAIN-A UNIT
J604 J604
Extanal speaker cable
J951 J951
J503 J503
Chassis
Sub antenna cable
GPS antenna cable
J202 J202
J201 J201
J203 J203
Chassis
