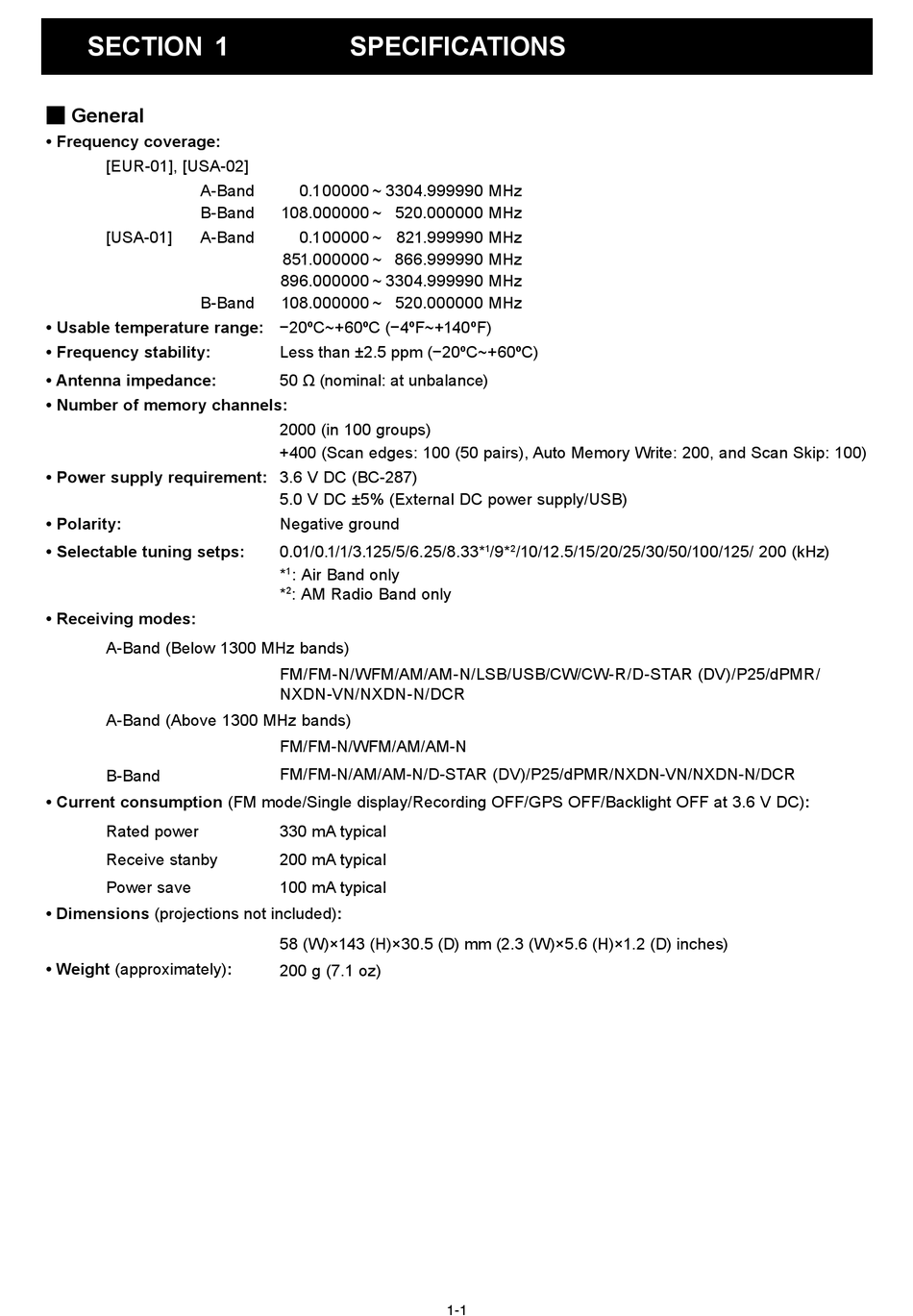

SECTION 1
M General
• Frequency coverage:
[EUR-01], [USA-02]
A-Band
B-Band
[USA-01] A-Band
B-Band
• Usable temperature range: −20ºC~+60ºC (−4ºF~+140ºF)
• Frequency stability:
• Antenna impedance:
• Number of memory channels:
• Power supply requirement: 3.6 V DC (BC-287)
• Polarity:
• Selectable tuning setps:
• Receiving modes:
A-Band (Below 1300 MHz bands)
A-Band (Above 1300 MHz bands)
B-Band
• Current consumption (FM mode/Single display/Recording OFF/GPS OFF/Backlight OFF at 3.6 V DC):
Rated power
Receive stanby
Power save
• Dimensions (projections not included):
• Weight (approximately):

SPECIFICATIONS

0.100000 ~ 3304.999990 MHz
108.000000 ~ 520.000000 MHz
0.100000 ~ 821.999990 MHz
851.000000 ~ 866.999990 MHz
896.000000 ~ 3304.999990 MHz
108.000000 ~ 520.000000 MHz
Less than ±2.5 ppm (−20ºC~+60ºC)
50 Ω (nominal: at unbalance)
2000 (in 100 groups)
+400 ( Scan edges: 100 (50 pairs), Auto Memory Write: 200, and Scan Skip: 100)
5.0 V DC ±5% (External DC power supply/USB)
Negative ground
0.01/0.1/1/3.125/5/6.25/8.33*
* : Air Band only
1
* : AM Radio Band only
2
FM/FM-N/WFM/AM/AM-N/LSB/USB/CW/CW-R/D-STAR (DV)/P25/dPMR/
NXDN-VN/NXDN-N/DCR
FM/FM-N/WFM/AM/AM-N
FM/FM-N/AM/AM-N/D-STAR (DV)/P25/dPMR/NXDN-VN/NXDN-N/DCR
330 mA typical
200 mA typical
100 mA typical
58 (W)×143 (H)×30.5 (D) mm (2.3 (W)×5.6 (H)×1.2 (D) inches)
200 g (7.1 oz)
1-1
/9* /10/12.5/15/20/25/30/50/100/125/ 200 (kHz)
1 2
