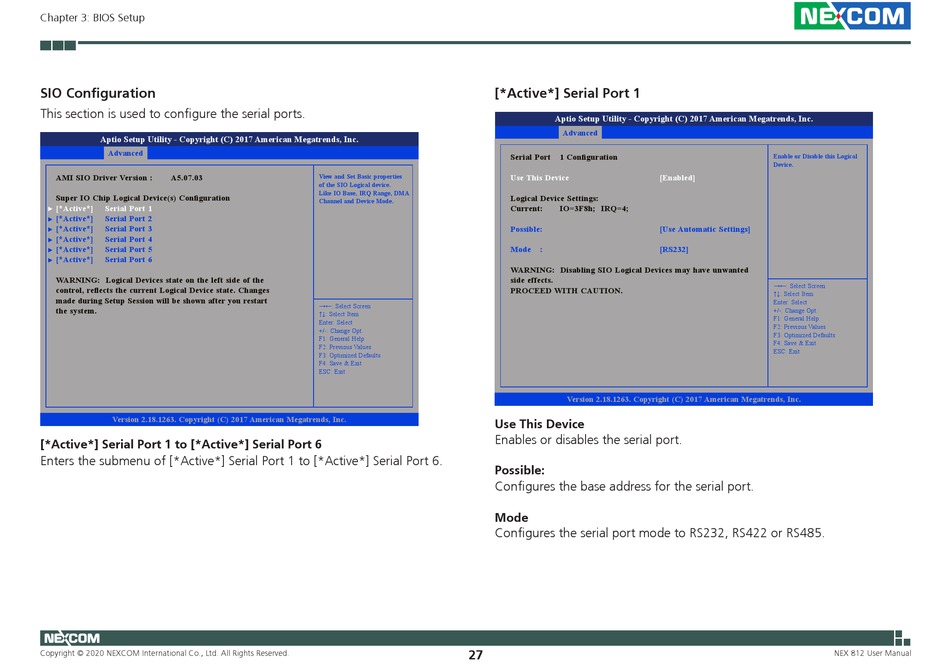

Chapter 3: BIOS Setup
SIO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
AMI SIO Driver Version : A5.07.03
Super IO Chip Logical Device(s) Configuration
[*Active*] Serial Port 1

[*Active*] Serial Port 2

[*Active*] Serial Port 3

[*Active*] Serial Port 4

[*Active*] Serial Port 5

[*Active*] Serial Port 6

WARNING: Logical Devices state on the left side of the
control, reflects the current Logical Device state. Changes
made during Setup Session will be shown after you restart
the system.
Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc.
[*Active*] Serial Port 1 to [*Active*] Serial Port 6
Enters the submenu of [*Active*] Serial Port 1 to [*Active*] Serial Port 6.
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
[*Active*] Serial Port 1
View and Set Basic properties
of the SIO Logical device.
Like IO Base, IRQ Range, DMA
Channel and Device Mode.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Use This Device
Enables or disables the serial port.
Possible:
Configures the base address for the serial port.
Mode
Configures the serial port mode to RS232, RS422 or RS485.
27
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
Serial Port 1 Configuration
Use This Device [Enabled]
Logical Device Settings:
Current: IO=3F8h; IRQ=4;
Possible: [Use Automatic Settings]
Mode : [RS232]
WARNING: Disabling SIO Logical Devices may have unwanted
side effects.
PROCEED WITH CAUTION.
Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc.
Enable or Disable this Logical
Device.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
