Chapter 2: Jumpers and Connectors

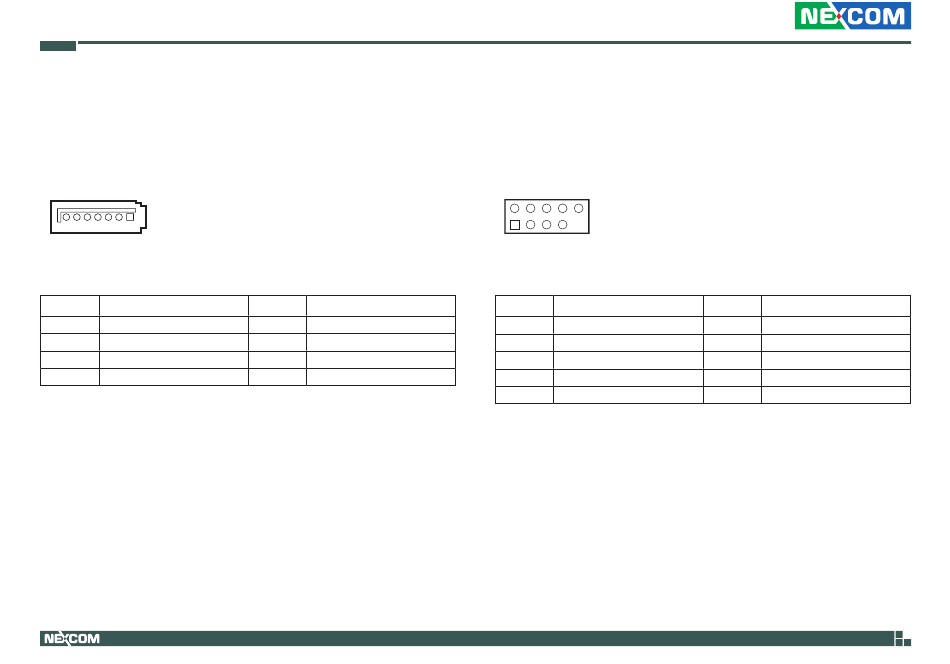

Serial ATA 6.0Gb/s Connector 6

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA6G_6
7 1
Pin Definition
1 GND
3 RSATA_TXN6
5 RSATA_RXN6
7 GND
Copyright © 2020 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 RSATA_TXP6
4 GND
6 RSATA_RXP6

USB 2.0 Connector

Connector type: 2x5 10-pin header
Connector location: USB1112
2 10
1
Pin Definition
1 USB+5V
3 USB_P11-
5 USB_P11+
7 GND
9
17
Pin Definition
2 USB+5V
4 USB_P12-
6 USB_P12+
8 GND
10 NC
