Installation and Operation Guide
ED-DT318B
Drive Train Systems with Traction Control, Inverter/Controller, and Motor with 2 Speed Transmission

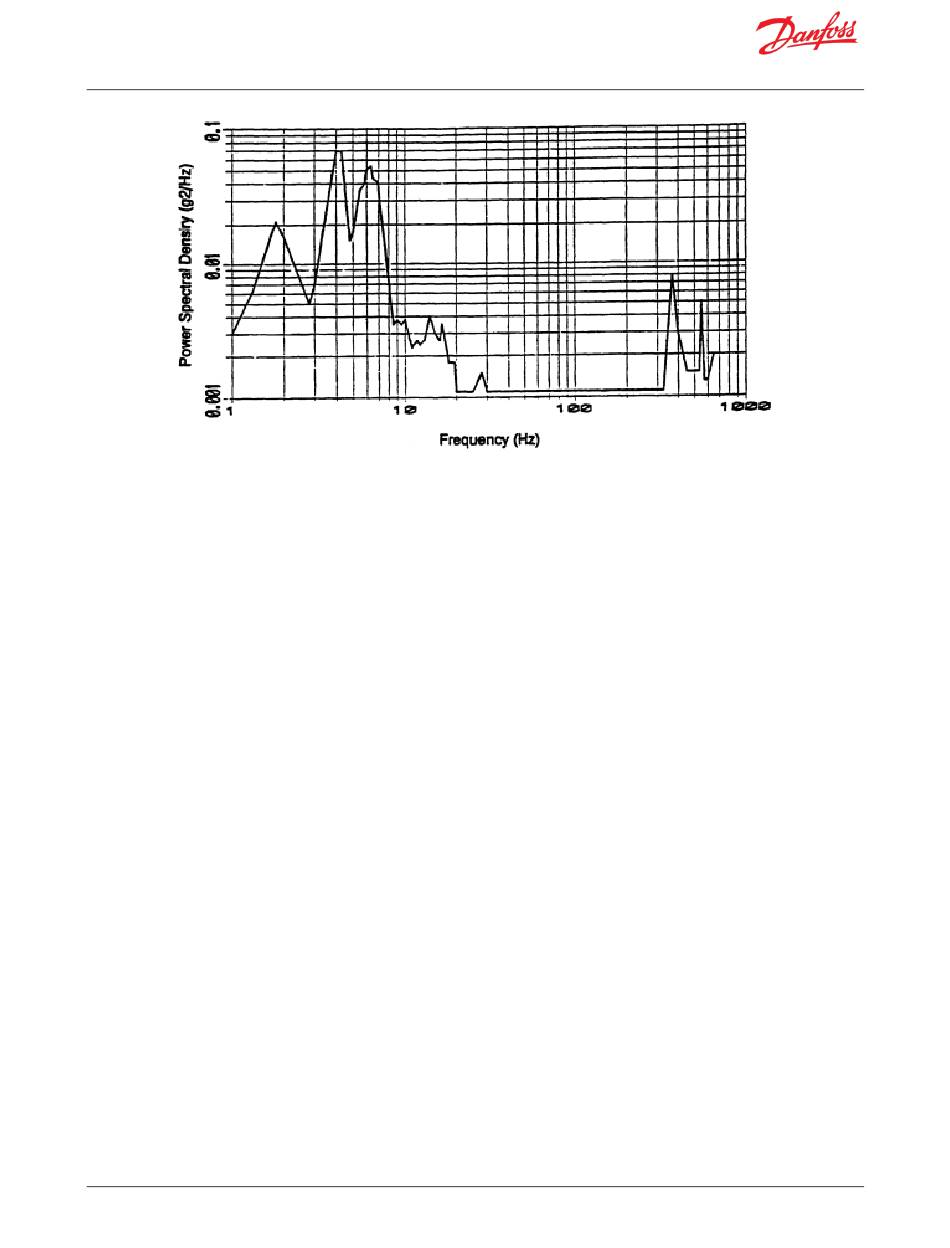

Figure 9.2: SAE J1455 PSD Bobtail vertical Mid frame, Heavy-duty Truck Profile

The order of testing Axes shall be:
1. Z axis (mounted with terminal cover and coolant ports on top)
2. Y axis
3. X axis
The unit shall be outfitted with the following:
•
Phase cable
•
DC cable
• Position feedback cable
•
Coolant ports and hoses
All covers in place, sealed and screws torqued to manufacturing specifications.
9.1.1.1 Acceptance Criteria
After each axis test, the unit will be returned to Danfoss Power Solutions for end-of-line (EOL) test and
inspection. Upon successful completion of the three axis' testing and inspection, the unit shall pass a
Dynamometer screen test, specified by Danfoss Power Solutions.
9.1.2 GB/T 18488.1-2015 Vibration Test
The controller shall be mounted to the vibration fixture using the four corner mounting holes, with no vibration
isolators. The electrical test equipment will be located next to the vibration table. The testing details are shown
below.
