Installation guide
EKE

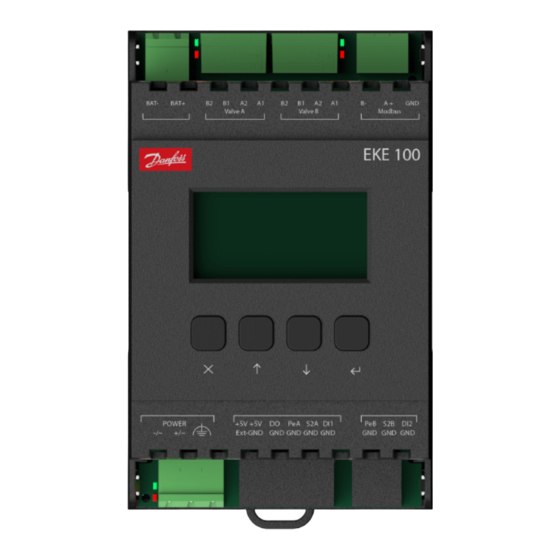

Type EKE 100
Introduction
Superheat controller EKE 100 is for use where superheat must be accurately controlled or as driver for
stepper motor valves typically in air conditioning, heat pumps, commercial refrigeration, food retailing
and industrial application.
Compatible valves: ETS 6, ETS 8M(Bipolar)/ETS C/KVS C/ ETS L/ETS 500-800P/ CCMT L/CCMT/CCM/CTR

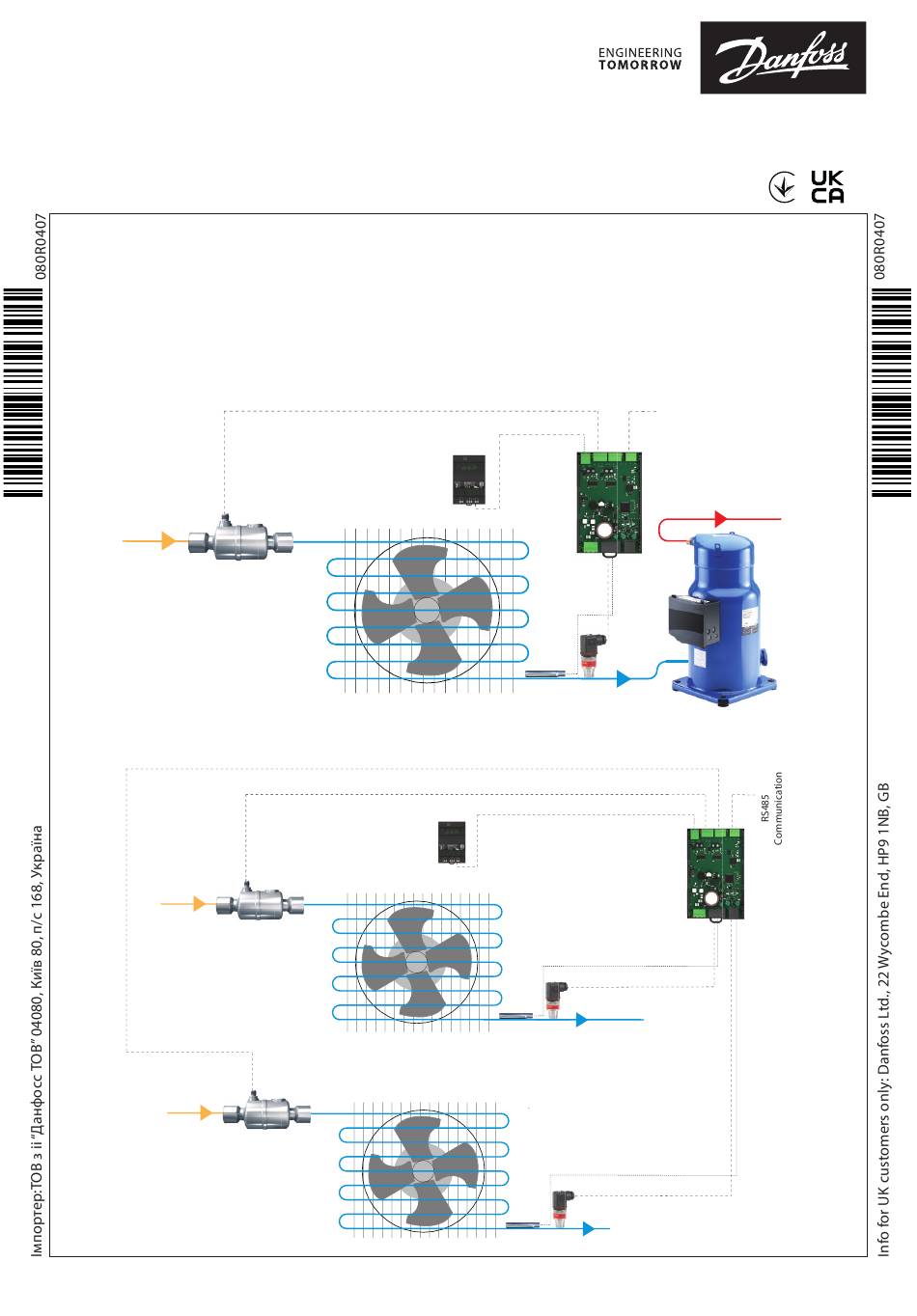

Basic application
ETS Colibri®
© Danfoss | Climate solutions | 2023.07
EKE 100 1V SH control
EKE 100 2V SH control
ETS Colibri®
ETS Colibri®
Valve A
EKE 2U
S2
Pe
A
A
EKE 2U
S2
A
Pe
A
S2
Pe
A
A
089
RS485
Communication
Danfoss
Danfoss
R64-3033.10
R64-3033.10
Valve B
Valve A
AN433741508202en-000203 | 1
Advertisement
Table of Contents
Related Manuals for Danfoss EKE
Summary of Contents for Danfoss EKE
- Page 1 Installation guide Type EKE 100 Introduction Superheat controller EKE 100 is for use where superheat must be accurately controlled or as driver for stepper motor valves typically in air conditioning, heat pumps, commercial refrigeration, food retailing and industrial application. Compatible valves: ETS 6, ETS 8M(Bipolar)/ETS C/KVS C/ ETS L/ETS 500-800P/ CCMT L/CCMT/CCM/CTR...
- Page 2 G ND G ND G ND GND GND GND G ND G ND G ND G ND G ND G ND G ND Height : 49.5 mm Height : 49 mm © Danfoss | Climate solutions | 2023.07 AN433741508202en-000203 | 2...
-
Page 3: Technical Specification
10 mA PC suite KoolProg KoolProg EKA 200 + EKE 100 service Service Tools EKA 200 + EKE 100 service cable cable Mounting (DIN rail) 35 mm DIN rail 35 mm DIN rail Storage temperature -30 – 80 °C / -22 – 176 °F -30 –... -
Page 4: Connection Overview
MODBUS (B-, A+, GND) Modbus port Note: * DI is software configurable, If not using with external signal, then short circuit it or configure it as not used in software. © Danfoss | Climate solutions | 2023.07 AN433741508202en-000203 | 4... - Page 5 The unit can be mounted onto a 35 mm DIN rail simply by snapping it into place and securing it with a stopper to prevent sliding. It is demounted by gently pulling the stirrup located in the base of the housing. Mounting : “Click” © Danfoss | Climate solutions | 2023.07 AN433741508202en-000203 | 5...
- Page 6 Danfoss 84N403.10 the sensor. • For precise measurements, mount the sensor max. 5 cm from the outlet of the evaporator. Close to the Close to the Evaporator evaporator evaporator © Danfoss | Climate solutions | 2023.07 AN433741508202en-000203 | 6...
-
Page 7: Modbus Installation
• Terminal resistors 120 Ω for terminal devices are recommended at both ends. • The EKE communication frequency (baud rate) can be one of the following: 9600, 19200 or 38400 baud, default 19200 8E1. • The default unit address is 1. - Page 8 • The stepper motor is connected to the “Stepper Valve” terminals (see terminal assign ment) with a standard M12 connection cable. • To configure stepper motor valves other than Danfoss stepper motor valves, the correct valve parameters must be set as described in the Valve configuration section by selecting user defined valve.
-
Page 9: Display Structure
General features and warning Plastic housing features • DIN rail mounting complying with EN 60715 • Self-extinguishing V0 according to IEC 60695-11-10 and glowing/hot wire test at 960 °C according to IEC 60695-2-12 © Danfoss | Climate solutions | 2023.07 AN433741508202en-000203 | 9... - Page 10 • Overvoltage category III (Rated impulse voltage 800V) General warnings • Every use that is not described in the manuals of EKE 100 is considered incorrect and is not authorized by the manufacturer • Verify that the installation and operating conditions of the device respect those specified in the manuals, especially concerning the supply voltage and environmental conditions •...
- Page 11 ETS 8M (Bipolar), CCMT L, ETS L EKA 200 Koolkey EKE 100 service cable EKA 200 is used as a service/copy key for EKE 100 service cable is used to EKE 100 controller connect EKE 100 controller to EKA 200 Koolkey ©...
