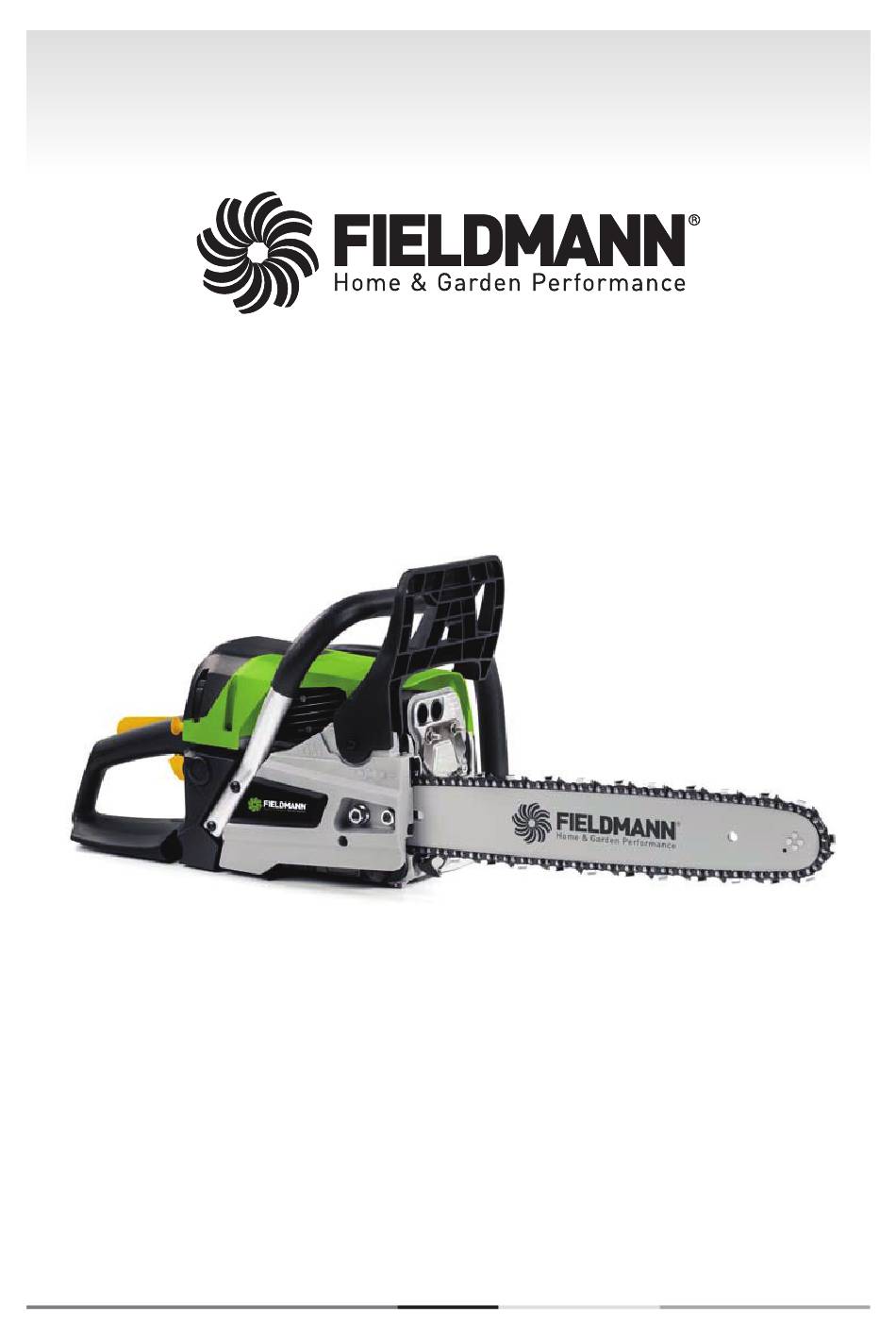

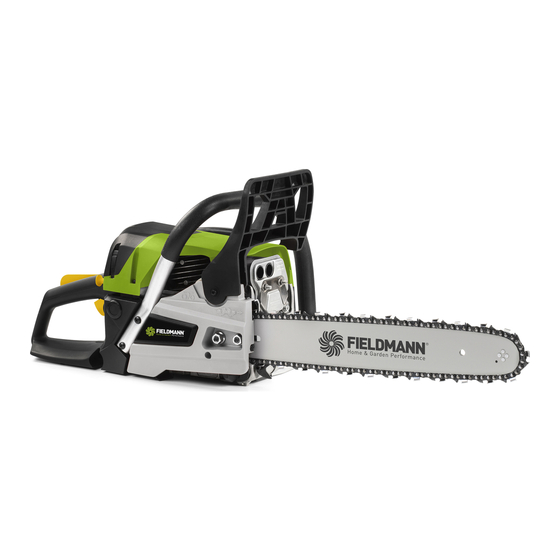

- Page 1 FZP 45016-B...
- Page 2 English ....................................3–29 Čeština .....................................30–56 Slovenčina ..................................57–83 Magyarul ..................................84–110 Polski ....................................111–137 FZP 45016-B...
-
Page 3: Table Of Contents
Table of Contents Chain saw USER'S MANUAL Thank you for purchasing this chain saw. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety notice ............................5 Packaging .................................. - Page 4 Equipment necessary for sharpening a saw chain ................23 Sharpening the teeth on the chain .........................23 Filing the depth gauge ............................24 12. REPLACING THE SAW CHAIN ..........................25 13. MAINTENANCE TABLE .............................26 14. TROUBLESHOOTING ..............................27 15. TECHNICAL PARAMETERS .............................28 16. DISPOSAL ..................................28 17. DECLARATION OF CONFORMITY ........................29 FZP 45016-B...
-
Page 5: General Safety Instructions
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. -
Page 6: Explanation Of Instruction Labels On The Machine
When operating the power tool, wear protective aids such as safety glasses, earmuffs, etc. Always use two hands when operating the chain saw. While working use protective gloves. Use solid insulating work footwear. Attention! Danger of kickback Warning! Attention! FZP 45016-B... -
Page 7: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! The safety instructions in this user’s manual are marked with the symbol containing critical points, which one needs to pay attention to when operating the power tool to prevent serious or fatal injuries. Please carefully study the instructions and adhere to them. ATTENTION! This symbol indicates instructions that must be adhered to in order to prevent accidents that could result in serious or fatal injuries. - Page 8 A stable stance must be maintained at all times when cutting, do not cut above shoulder height. Adhere to the instructions of the manufacturer for lubricating and sharpening the chain. Only use spare chains and guide bars specifi ed by the manufacturer or their equivalents. FZP 45016-B...
-
Page 9: Instructions For Handling Fuel
Safety Instructions Instructions for handling fuel The engine of the power tool is designed to use a highly fl ammable fuel mix. Never store fuel containers or refi ll fuel in the vicinity of an open fl ame, wood stove, electrical lines, welding work or other sources of heat or fl ame, which could lead to ignition. -
Page 10: Machine Description And Included Contents
3. Chain tensioner screw 13. Throttle lock 17. Air fi lter cover lock 4. Chain brake 14. Primer 18. Air fl ap lever FZP 45016-B Fig. 2 (see Fig. 2) 1. Gasoline chain saw 4. Saw chain 8. User manual with warranty (machine and cover) 5. -
Page 11: Drive Bar And Saw Chain Assemble
Drive bar and saw chain assemble 5. DRIVE BAR AND SAW CHAIN ASSEMBLE WARNING! Always wear protective gloves when working with the chain. 1. Make sure that the device is turned off. Place the saw on a fl at surface. 2. -
Page 12: Chain Tension Adjustment
WARNING! The chain brake reduces the chance of injury from chain saw bounce, but does not provide protection if the unit is operated carelessly. Check that the chain brake is in good working order before starting work and periodically while working with the chainsaw. FZP 45016-B... - Page 13 Drive bar and saw chain assemble The chain brake has two positions: 1. The brake is off (the chain can move) when the brake shield is pulled back (A) (fi g. 11). 2. The brake is on (the chain cannot move) with the brake shield pointing forward (B). In this case, the chain should not move on the bar (fi...
-
Page 14: Filling The Oil Tank And Fuel Tank
Clean up the spill and fi ll the machine in another location Never fi ll the fuel tank to the fl ange; there is a risk of overfl ow. Do not refuel in a closed and unventilated area. FZP 45016-B... - Page 15 Filling the oil tank and fuel tank The fuel used for this tool is a mixture of unleaded gasoline and registered engine lubricant. When mixing gasoline with oil, use only gasoline that does not contain ethanol or methanol. Unleaded gasoline is a quality gasoline type. This will help to avoid damaging the fuel lines of the engine and other engine parts.
-
Page 16: Operation
While using the trigger to keep the chain in operation, push the brake lever down with the back of the left hand. When the brake is running and the chain is stopped, remove the hand from the throttle. Loosen the brake. FZP 45016-B... -
Page 17: Release Of The Chain Brake
Operation RELEASE OF THE CHAIN BRAKE To use the chain saw again, the chain brake must be released. This must be done machine off and cooled. Pull the shield until it returns to its original position. CHECKING THE LUBRICATION OF THE CHAIN Before checking the oil, make sure that the bar and the chain are in place. - Page 18 Observe fi rst the direction of fl exion of the branch. Make a fi rst notch on the side in fl exion and fi nish the cut on the opposite side. d. Pruning a tree Begin pruning by nicking the tree from below and then fi nish at the top. FZP 45016-B...
-
Page 19: Adjusting The Chain Tension
Adjusting the chain tension | Cutting 8. ADJUSTING THE CHAIN TENSION ATTENTION! Due to the effect of higher temperatures, during operation the saw chain has a tendency to lengthen. A longer chain becomes loose and could slide off the guide bar. Loosen the sprocket cover fastening nuts. -
Page 20: Felling Trees
Only carry the chain saw with the engine turned off and the guide bar protected by the protective cover. Log lying on the ground Cut it halfway through, then roll it over and complete the cut from the other side. FZP 45016-B... -
Page 21: Log Above The Ground
Cutting | Cleaning and maintenance Log above the ground In part “A” make a cut from below to a third of the log and then complete the cut from above. In part “B” make a cut from above to a third of the log and then complete the cut from below. -
Page 22: Maintaining The Guide Bar
• it is bent or cracked • its groove is very damaged or worn out NOTE: To replace the guide bar, follow the instruction contained in this user's manual. You will fi nd the correct guide bar type in the technical specifi cations. FZP 45016-B... -
Page 23: Sharpening The Saw Chain
Sharpening the saw chain 11. SHARPENING THE SAW CHAIN Keep the saw chain sharp. Cutting will be signifi cantly faster and most importantly safer. A blunt saw chain increases wear on the sprocket, guide bar, chain and engine. If you need to push on the saw and only sawdust with a few splinters are produced then this means that the chain is blunt. -
Page 24: Filing The Depth Gauge
NOTE: After the chain has been sharpened by hand several times, have the saw chain sharpened at an authorised service centre or sharpen it on a special sharpening machine. This will renew the even sharpness of all teeth. FZP 45016-B... -
Page 25: Replacing The Saw Chain
Replacing the saw chain 12. REPLACING THE SAW CHAIN ATTENTION! When replacing the saw chain, do not clamp the chain saw or the guide bar in a vice. Always replace the chain if the teeth are excessively worn out and they cannot be sharpened or if the chain snaps. -
Page 26: Maintenance Table
Pull cord Check for: damage and wear Replace Carburettor Check idling speed (the chain must not turn at idling speed) Spark plug Check the distance of the electrodes Replace Every 6 months Anti-vibration system Check for: damage and wear FZP 45016-B... -
Page 27: Troubleshooting
Troubleshooting 14. TROUBLESHOOTING CAUTION: always turn off the unit and disconnect the spark plug before carrying out the checks recommended in the table, except for the cases where the unit needs to be running. When all possible causes have been checked and the problem remains unsolved, please contact an authorised service centre. -
Page 28: Technical Parameters
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. User s manual in the original language. FZP 45016-B... -
Page 29: Declaration Of Conformity
Declaration of conformity 17. DECLARATION OF CONFORMITY CHAIN SAW USER'S MANUAL... - Page 32 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 33 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
