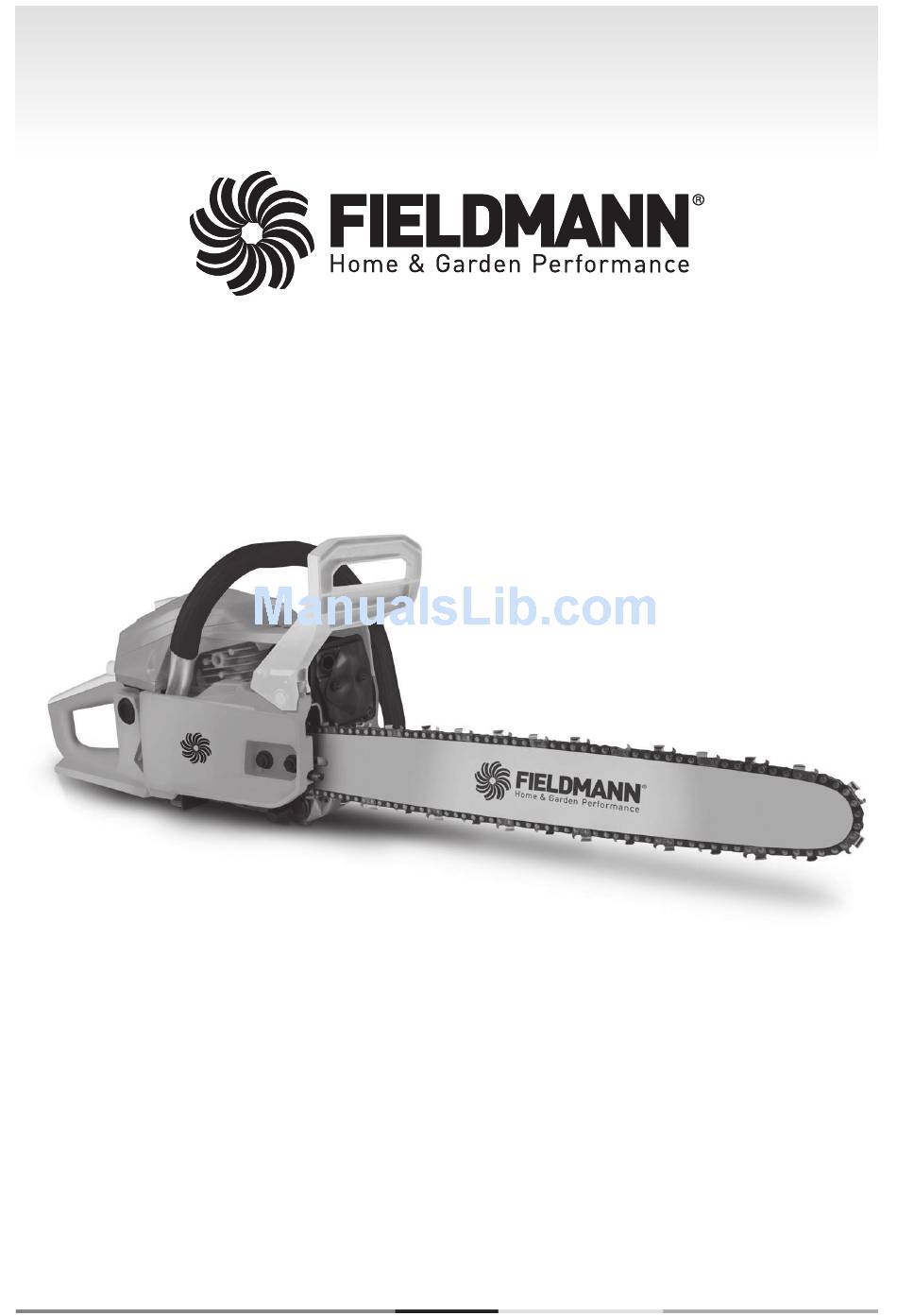

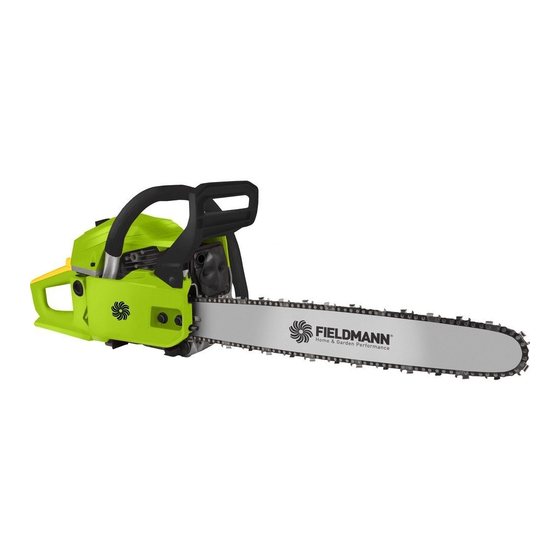

- Page 1 FZP 4516 B...
-
Page 2: Table Of Contents
Table of Contents Chain saw USER'S MANUAL Thank you for purchasing this chain saw. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety information ..........................5 Packaging .................................. - Page 3 Equipment necessary for sharpening a saw chain ................20 Sharpening the teeth on the chain .........................20 Filing the depth gauge ............................21 13. REPLACING THE SAW CHAIN ..........................22 14. TECHNICAL SPECIFICATIONS ..........................23 15. DISPOSAL ..................................24 16. DECLARATION OF CONFORMITY ........................25 FZP 4516 B...
-
Page 4: General Safety Instructions
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. -
Page 5: Explanation Of Instruction Labels On The Machine
When operating the power tool, wear protective aids such as safety glasses, earmuffs, etc. Always use two hands when operating the chain saw. While working use protective gloves. Use solid insulating work footwear. Attention! Danger of kickback Warning! Attention! FZP 4516 B... -
Page 6: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! The safety instructions in this user’s manual are marked with the symbol containing critical points, which one needs to pay attention to when operating the power tool to prevent serious or fatal injuries. Please carefully study the instructions and adhere to them. ATTENTION! This symbol indicates instructions that must be adhered to in order to prevent accidents that could result in serious or fatal injuries. - Page 7 A stable stance must be maintained at all times when cutting, do not cut above shoulder height. Adhere to the instructions of the manufacturer for lubricating and sharpening the chain. Only use spare chains and guide bars specifi ed by the manufacturer or their equivalents. FZP 4516 B...
-
Page 8: Instructions For Handling Fuel
Safety Instructions Instructions for handling fuel The engine of the power tool is designed to use a highly fl ammable fuel mix. Never store fuel containers or refi ll fuel in the vicinity of an open fl ame, wood stove, electrical lines, welding work or other sources of heat or fl ame, which could lead to ignition. -
Page 9: Description Of The Power Tool And Included Contents
12. Choke lever 6. Front handle 13. Throttle trigger lock Included contents: Petrol chain saw, 405 mm guide bar, Oregon chain, plastic guide bar cover, calibrated fuel mixing container, spare spark plug, tool set with fi le. FZP 4516 B... -
Page 10: Installing The Bumper Spikes, Guide Bar And Chain
Installing the bumper spikes, guide bar and chain 5. INSTALLING THE BUMPER SPIKES, GUIDE BAR AND CHAIN ATTENTION! Always wear protective gloves when installing and inspecting the chain to prevent injury from the sharp cutting edges on the chain. Installing the bumper spikes Using the included hex key and screws, attach the bumper spikes, see picture (Fig. -
Page 11: Fuel And Chain Lubricating Oil
We recommend the use of the calibrated container supplied with the chain saw for mixing the fuel mix. DO NOT MIX THE PETROL AND OIL DIRECTLY IN THE FUEL TANK. Screw off the fuel tank cap (Fig. 6, point 2) and pour in the fuel. Then screw the cap back on. FZP 4516 B... -
Page 12: Storing Fuel
Fuel and chain lubricating oil | Preparing for operation Storing fuel Only store fuel in a clean, safe and approved canister. Inform yourself about and adhere to local directives related to the type and storage of canisters fi lled with fuel. -
Page 13: Chain Brake (Fig. 1, Point 9)
(the engine will show signs of attempting to start) (Fig. 8). 4. At this point, push the choke lever back in (Fig. 7, point 2) and start the engine by repeatedly pulling on the starting cord. FZP 4516 B... -
Page 14: Starting A Warm Engine
Turning the chain saw on and off ATTENTION! Spinning the engine for too long Fig. 7 with the choke lever pulled out will result in fl ooding of the engine and problems with starting it up. 5. Prior to starting work, leave the engine to warm up for a few minutes to get up to operating temperature. -
Page 15: Adjusting The Chain Tension
Run the chainsaw at full speed for 1 - 2 seconds and then tilt the front protective cover. The chain must stop immediately even when the engine is running at high speed. If the chain stops slowly or does not stop at all, please contact an authorised service centre. FZP 4516 B... -
Page 16: Felling Trees
Cutting It is extremely important to check the working order of the chain brake and the sharpness of the chain before every use to ensure that the necessary level of safety in the event of a kickback is maintained. Removing safety accessories, incorrect maintenance or when using unsuitable guide bars or chains may, in the event of kickback, result in serious injuries. -
Page 17: Log Above The Ground
Cleaning the body of the chain saw Keep the body of the chain saw clean. When cleaning, use a soft cloth dipped in a soap solution. Use this cloth to meticulously clean the body of the chain saw. FZP 4516 B... -
Page 18: Maintaining The Guide Bar
Cleaning and maintenance Maintaining the guide bar Guide bar Most problems with the guide bar arise due to groove uneven wear. Uneven wear occurs mainly as a result of an incorrectly sharpened chain or an incorrectly set depth gauge. Guide bar When the guide bar is worn out unevenly, the guiding groove is widened (see Picture). -
Page 19: Sharpening The Saw Chain
File the tooth in the direction from inside out (in direction B, see fi gure) until it is sharp. File only in this direction. NOTE: Two to three passes of the fi le should be suffi cient to sharpen the tooth. FZP 4516 B... -
Page 20: Filing The Depth Gauge
Sharpening the saw chain Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. After every second or third sharpening, it is necessary to adjust the depth gauge setting. Place the depth gauge adjustment jig (see fi... -
Page 21: Replacing The Saw Chain
Adjust the tension of the saw chain. Tighten the guide bar bolt. ATTENTION! Check that you have not placed the saw chain on the guide bar in the opposite direction. Otherwise, the chain saw will exhibit excessive vibrations and will not cut. FZP 4516 B... -
Page 22: Technical Specifications
Technical Parameters 14. TECHNICAL PARAMETERS Type......................................FZP 4516 B Engine ......................................45.2 cm Maximum engine power............................1.7 kW /7500 rpm Maximum engine speed with cutting tool ........................10,000 rpm Maximum engine speed when idling ..........................2,800 rpm Guide bar length ................................... 405 mm Chain pitch .................................... -
Page 23: Disposal
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. User s manual in the original language. FZP 4516 B... -
Page 24: Declaration Of Conformity
Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, tel.:323204111, hereby declares, that the Fieldmann FZS 4516 B Petrol Chain Saw (year of manufacture is indicated on the rating label and is followed by the serial number of the machine, meets the directives COUNCIL DIRECTIVE: ES No. - Page 25 Notes FZP 4516 B...
