Summary of Contents for Fieldmann FZP 3714 B

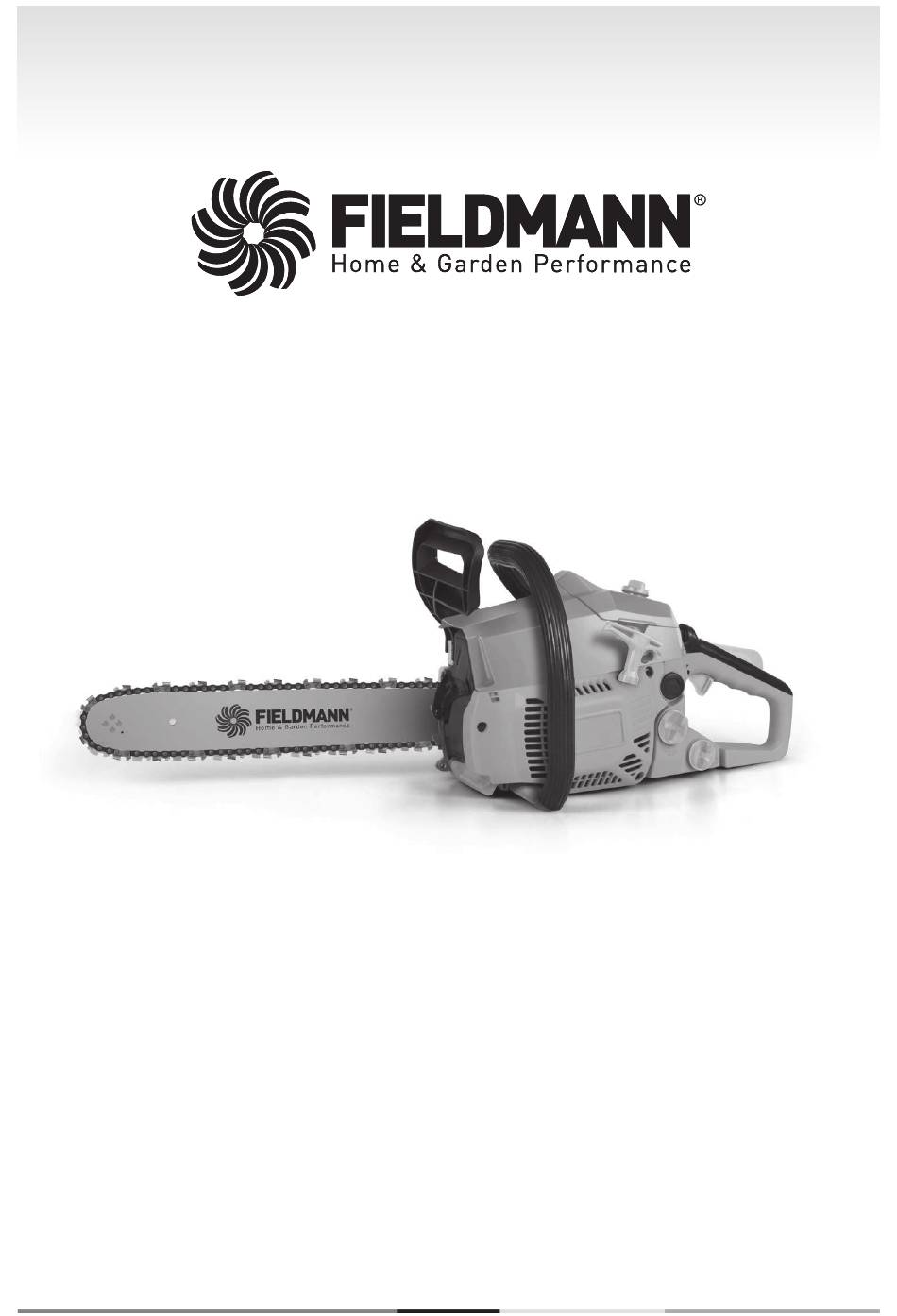

- Page 1 FZP 3714 B...
-
Page 2: Table Of Contents
Table of Contents Chain saw USER'S MANUAL Thank you for purchasing this chain saw. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety information ..........................5 Packaging .................................. - Page 3 Equipment necessary for sharpening a saw chain ................20 Sharpening the teeth on the chain .........................20 Filing the depth gauge ............................21 13. REPLACING THE SAW CHAIN ..........................22 14. TECHNICAL SPECIFICATIONS ..........................23 15. DISPOSAL ..................................24 16. DECLARATION OF CONFORMITY ........................25 FZP 3714 B...
-
Page 4: General Safety Instructions
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. -
Page 5: Explanation Of Instruction Labels On The Machine
When operating the power tool, wear protective aids such as safety glasses, earmuffs, etc. Always use two hands when operating the chain saw. While working use protective gloves. Use solid insulating work footwear. Attention! Danger of kickback Warning! Attention! FZP 3714 B... -
Page 6: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! The safety instructions in this user's manual are marked with the symbol containing critical points, which one needs to pay attention to when operating the power tool to prevent serious or fatal injuries. Please carefully study the instructions and adhere to them. ATTENTION! This symbol indicates instructions that must be adhered to in order to prevent accidents that could result in serious or fatal injuries. - Page 7 A stable stance must be maintained at all times when cutting, do not cut above shoulder height. Adhere to the instructions of the manufacturer for lubricating and sharpening the chain. Only use spare chains and guide bars specifi ed by the manufacturer or their equivalents. FZP 3714 B...
-
Page 8: Instructions For Handling Fuel
Safety Instructions Instructions for handling fuel The engine of the power tool is designed to use a highly fl ammable fuel mix. Never store fuel containers or refi ll fuel in the vicinity of an open fl ame, wood stove, electrical lines, welding work or other sources of heat or fl ame, which could lead to ignition. -
Page 9: Description Of The Power Tool And Included Contents
11. Air fi lter cover screw 6. Starting cord handle 12. Choke lever Included contents: Petrol chain saw, 355 mm guide bar, chain, plastic guide bar cover, calibrated fuel mixing container, spare spark plug, tool set with fi le. FZP 3714 B... -
Page 10: Installing The Bumper Spikes, Guide Bar And Chain
Installing the bumper spikes, guide bar and chain 5. INSTALLING THE BUMPER SPIKES, GUIDE BAR AND CHAIN ATTENTION! Always wear protective gloves when installing and inspecting the chain to prevent injury from the sharp cutting edges on the chain. Installing the bumper spikes (Fig. 2) Using the included hex key and screw, attach the bumper spikes, see fi... -
Page 11: Fuel And Chain Lubricating Oil
When mixing petrol with two-stroke engine oil, use only petrol containing NO ETHANOL or METHANOL (types of alcohols). Use quality petrol with an octane number of 95 or higher. This will help prevent possible damage to the fuel system and other parts of the engine. FZP 3714 B... -
Page 12: Storing Fuel
Fuel and chain lubricating oil | Preparing for operation We recommend the use of the calibrated container Fig. 6 supplied with the chain saw for mixing the fuel mix. DO NOT MIX THE PETROL AND OIL DIRECTLY IN THE FUEL TANK. Screw off the fuel tank cap (Fig. -
Page 13: Chain Brake (Fig. 1, Point 10)
4. Place the chain saw fl at on the ground so that it is stable and pull on the handle of the starting cord until the engine rotates (the engine will show signs of attempting to start) (Fig. 8). FZP 3714 B... -
Page 14: Starting A Warm Engine
Turning the chain saw on and off 5. At this point, push the choke lever (Fig.7, point 3) Fig. 7 downwards to the "ON" position (=air supply turned on, i.e. choke turned off) and start the engine by repeatedly pulling on the starting cord. ATTENTION! Spinning the engine for too long with the choke lever in the OFF position will result in fl... -
Page 15: Adjusting The Chain Tension
Run the chainsaw at full speed for 1 - -2 seconds and then tilt the front protective cover. The chain must stop immediately even when the engine is running at high speed. If the chain stops slowly or does not stop at all, please contact an authorised service centre. FZP 3714 B... -
Page 16: Felling Trees
Cutting It is extremely important to check the working order of the chain brake and the sharpness of the chain before every use to ensure that the necessary level of safety in the event of a kickback is maintained. Removing safety accessories, incorrect maintenance or when using unsuitable guide bars or chains may, in the event of kickback, result in serious injuries. -
Page 17: Log Above The Ground
Check for any oil leaks, loose mounts and damaged main parts, particularly in the location where the handles and the guide bar are mounted. Any identifi ed defects must be repaired before the chain saw is used again. FZP 3714 B... -
Page 18: Cleaning The Body Of The Chain Saw
Cleaning and maintenance Cleaning the body of the chain saw Keep the body of the chain saw clean. When cleaning, use a soft cloth dipped in a soap solution. Use this cloth to meticulously clean the body of the chain saw. Maintaining the guide bar Guide bar Most problems with the guide bar arise due to... -
Page 19: Sharpening The Saw Chain
File the tooth in the direction from inside out (in direction B, see fi gure) until it is sharp. File only in this direction. NOTE: Two to three passes of the fi le should be suffi cient to sharpen the tooth. FZP 3714 B... -
Page 20: Filing The Depth Gauge
Sharpening the saw chain Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. After every second or third sharpening, it is necessary to adjust the depth gauge setting. Place the depth gauge adjustment jig (see fi g., point 1) fi... -
Page 21: Replacing The Saw Chain
Adjust the tension of the saw chain. Tighten the guide bar bolt. ATTENTION! Check that you have not placed the saw chain on the guide bar in the opposite direction. Otherwise, the chain saw will exhibit excessive vibrations and will not cut. FZP 3714 B... -
Page 22: Technical Specifications
Technical Parameters 14. TECHNICAL PARAMETERS Type......................................FZP 3714 B Engine ......................................37.2 cm Maximum engine power............................1.2 kW /7500 rpm Maximum engine speed with chain ..........................10,000 rpm Maximum engine speed when idling ..........................2,600 rpm Guide bar length ................................... 355 mm Chain pitch ....................................0.325 inch Guiding groove width ..................................1.5 mm... -
Page 23: Disposal
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. User s manual in the original language. FZP 3714 B... -
Page 24: Declaration Of Conformity
Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, tel.:323204111, hereby declares, that the Fieldmann FZS 3714 B Petrol Chain Saw (year of manufacture is indicated on the rating label and is followed by the serial number of the machine, meets the directives COUNCIL DIRECTIVE: ES No. - Page 25 Notes FZP 3714 B...
