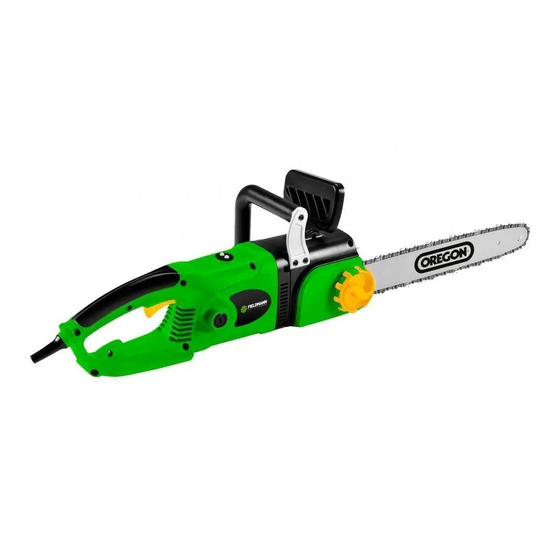

Summary of Contents for Fieldmann FZP 2020-E

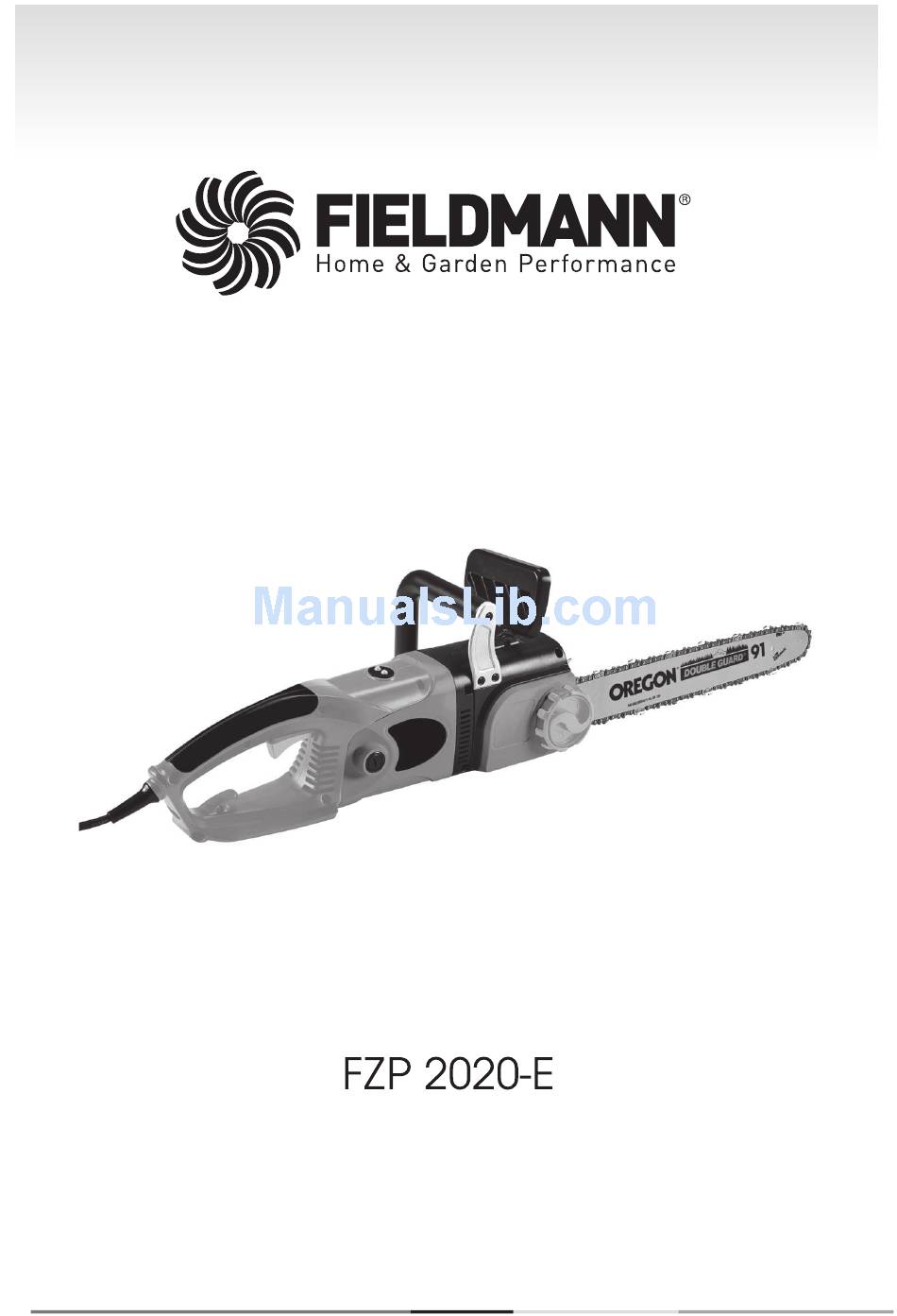

- Page 2 English ....................................3–20 Čeština .................................... 21–38 Slovenčina ..................................39–56 Magyarul ..................................57–74 Polski ....................................75–92 Slovenščina ................................93–112 FZP 2020-E...
-
Page 3: Table Of Contents
Table of Contents Electric Chain Saw USER'S MANUAL TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .......................... 4 2. SYMBOLS ................................... 5 3. SAFETY INSTRUCTIONS ..............................7 4. DESCRIPTION OF THE CHAIN SAW ........................9 5. INSTALLING THE GUIDE BAR AND CHAIN .......................10 6. -
Page 4: General Safety Instructions
Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZP 2020-E... -
Page 5: Symbols
Symbols 2. SYMBOLS Do not expose the power tool to rain. Before using the power tool, carefully read the user's manual. In the event that the power cord is damaged, immediately disconnect it from the power supply. When working, always use a safety helmet, safety glasses and ear protection. - Page 6 DANGER! Do not use the power tool if there are children, other persons or animals in your vicinity. While working use protective gloves. Use solid insulating work footwear. Use hearing protection. Use work gloves. Be careful of falling branches. FZP 2020-E...
-
Page 7: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! Acquaint yourself with all warnings and safety instructions and with operation instructions for the power tool. ATTENTION! Not adhering to warnings or safety instructions may result in injury by electrical shock, a fi re and/or serious injury. - Page 8 Service Have your power tool repaired by a qualifi ed person that will use original spare parts. In this manner, the same level of safety will be ensured as before the repair of the power tool. FZP 2020-E...
-
Page 9: Description Of The Chain Saw
Safety instructions | Description of the chain saw Storage only move or store the power tool with the protective cover attached carefully clean and perform appropriate maintenance before storing the power tool before transporting the power tool, secure it against oil leakage, damage or injury hazard 4. -
Page 10: Installing The Guide Bar And Chain
ATTENTION! Fig. 5 The chain is correctly tensioned if it is possible to lift chain off the guide bar and its height in the horizontal position in the middle of the guide bar is 3 to 4 mm. FZP 2020-E... -
Page 11: Filling The Chain Saw Oil Tank
Filling the chain saw oil tank | Operating the chain saw 6. FILLING THE CHAIN SAW OIL TANK ATTENTION! A new chain requires a certain running-in period, which is usually 5 minutes. The lubrication of the chain is very important during this phase. After this running-in period, check the chain tension and readjust if necessary. -
Page 12: Chain Brake
Check that the chain brake is in order. A correctly functioning chain brake will protect you against potential injury, which could result from kickback. If the brake is not working properly, have it adjusted or repaired at an authorised service centre. FZP 2020-E... -
Page 13: Adjusting The Chain Tension
Adjusting the chain tension | Using the chain saw | cutting 9. ADJUSTING THE CHAIN TENSION ATTENTION! Due to the effect of higher temperatures, during operation the saw chain has a tendency to lengthen. A longer chain becomes loose and could slide off the guide bar. ATTENTION! This chain saw has a chain tensioning system that does not require any tools. -
Page 14: Cutting Logs
Only carry the chain saw with the motor turned off and the guide bar protected by the protective cover. FZP 2020-E... -
Page 15: Cleaning And Maintenance
Cutting | Cleaning and maintenance Log lying on the ground Cut it halfway through, then roll it over and complete the cut from the other side. Log above the ground In part “A” make a cut from below to a third of the log and then complete the cut from above. -
Page 16: Sharpening The Saw Chain
Place the fi le guide at the required angle (mark A, see fi gure). Check that the mark is at 30° on the fi le guide aligned with the centre of the guide bar. This will ensure that you will fi le at an angle of 30°. FZP 2020-E... -
Page 17: Replacing The Saw Chain
Sharpening the saw chain | Replacing the saw chain File the tooth in the direction from inside out (in direction B, see fi gure) until it is sharp. File only in this direction. Note: Two to three passes of the fi le should be suffi cient to sharpen the tooth. Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. -
Page 18: Storage
Wipe the body of the chain saw with a cloth. When cleaning, use a soft cloth dipped in a soap solution. Store the chain saw • In higher shelves or in locked areas out of children’s reach • in a dry location FZP 2020-E... -
Page 19: Technical Specifications
Technical specifications | Disposal 16. TECHNICAL SPECIFICATIONS Power input 2400 W Voltage/frequency 230 V - 240 V / 50 Hz Chain pitch 3/8“ Guiding groove width 1.3 mm Number of chain links 56 links Length of the guide bar 40 cm File diameter 4 mm Cutting speed... - Page 20 Notes FZP 2020-E...
