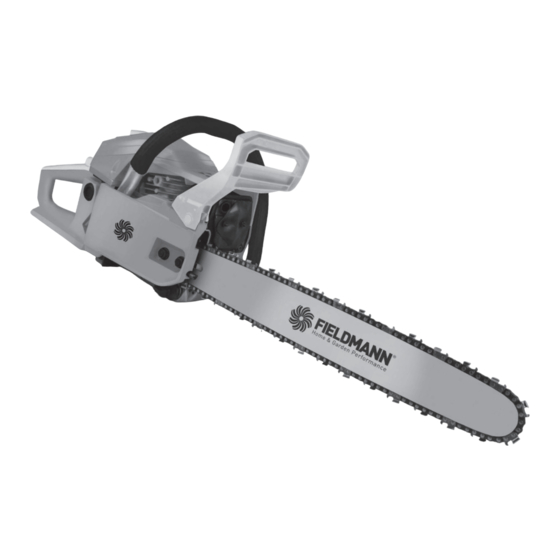

Summary of Contents for Fieldmann FZP 4001-B

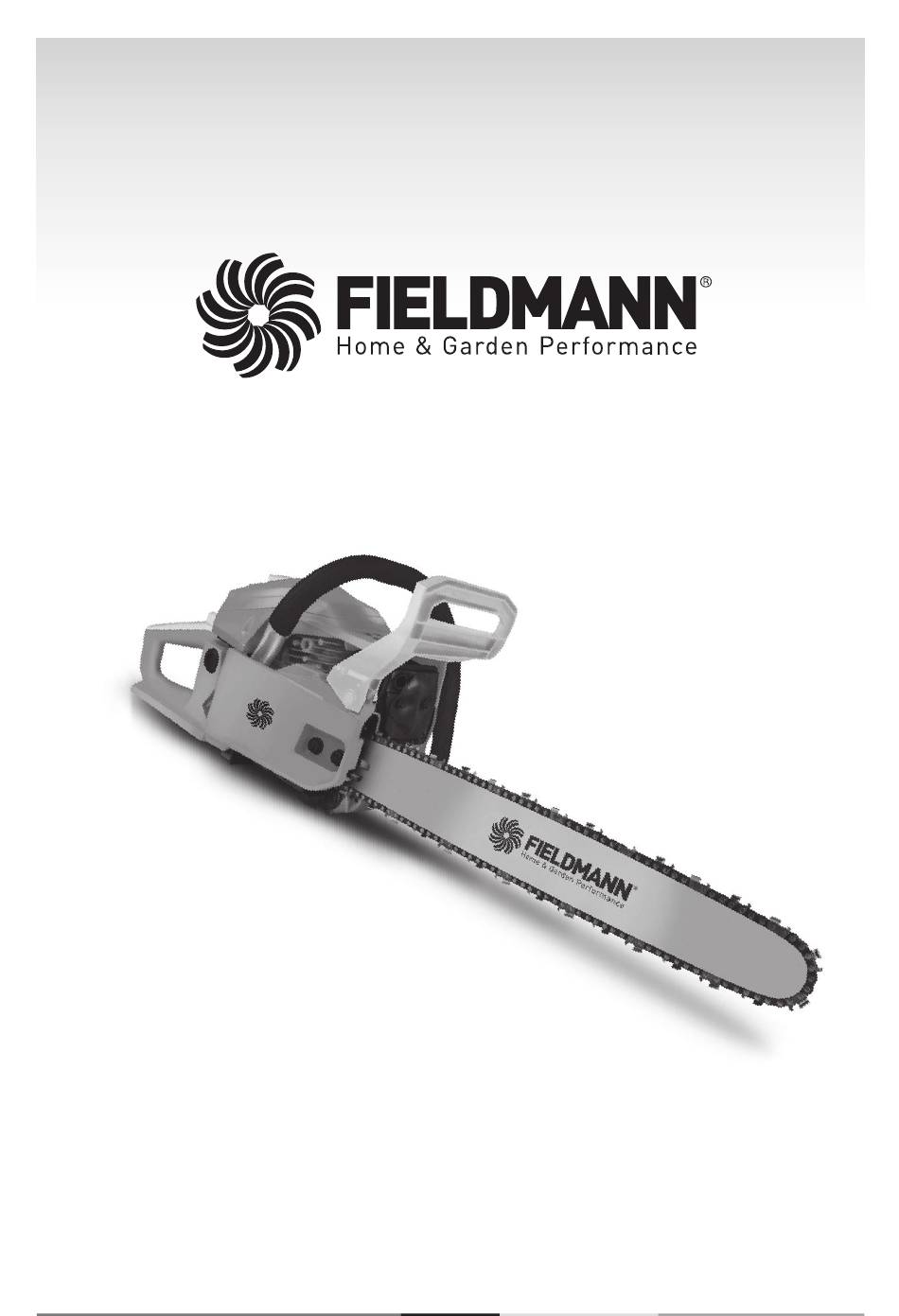

- Page 1 FZP 4001-B...
-
Page 2: Visual Appendix
English ..............................11 - 29 Čeština ..............................31 - 49 Slovenčina ............................51 - 69 Magyarul ............................71 - 90 Polski ..............................91 - 111 Русский ............................119 - 135 FZP 4001-B... - Page 4 FZP 4001-B...
- Page 6 FZP 4001-B...
- Page 8 FZP 4001-B...
- Page 10 FZP 4001-B...
-
Page 11: Table Of Contents
Contents Chainsaw INTSTRUCTIONS FOR USE Thank you for buying this chainsaw. Before use, please be sure to carefully read these instructions and keep them for possible future reference. CONTENTS VISUAL APPENDIX ........................... 2 GENERAL SAFETY GUIDELINES ....................13 Important safety warnings Package Instructions for use EXPLANATION OF INSTRUCTION LABELS ATTACHED TO THE MACHINE ..... - Page 12 MAINTENANCE ..........................26 Maintenance after each use Points of regular maintenance CHAIN AND GUIDE MAINTENANCE ..................27 Chain Chain guide SPECIFICATIONS ..........................28 DECLARATION OF CONFORMITY ..................29 DISPOSAL ............................30 WARRANTY CERTIFICATE ......................136 CONDITION OF GUARANTEE ....................137 FZP 4001-B...
-
Page 13: General Safety Guidelines
General safety instructions 1. . GENERAL SAFETY INSTRUCTIONS Important safety warnings Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product. Keep the product in a dry place out of reach of children. Read all cautions and instructions. -
Page 14: Explanation Of Instruction Labels Attached To The Machine
Choke icon. Pull the choke out half way to close. Position: rear right of the unit Chain lubrication oil injection icon "MIN" direction - oil injection will decrease; "MAX" direction - oil intake will increase. Position: clutch bottom FZP 4001-B... - Page 15 Explanation of instruction labels attached to the machine H position of the screw (used to set high speed) L position of the screw (used to set low speed) The T position is used to set idle speed. Position: rear left of the unit Please read the instructions for use carefully before using the machine.
-
Page 16: Machine Description And Scope Of Delivery
Refrain from using the machine if you are on drugs that may affect and/or limit your judgment abilities to safely operate the machine. Refrain from using the machine in indoor space as the released gases contain hazardous carbon monoxide. FZP 4001-B... -
Page 17: Working Equipment And Clothing
Safety instructions Never use the machine under any of the following conditions: - The work area is slippery or weather conditions do not allow you to keep stable position when operating the machine. - Under dark, strong fog or poor weather conditions that affect the work area visibility. - In rain, storm or strong wind or other conditions that may be pose danger to using the machine. -
Page 18: Operation
When cutting sprung branches, remember they may be flung forward once their tension is released by cutting the wood fibers. Please check and remove any dry branches that might be released from the falling tree. Please make sure the machine is shut down before you put it away. FZP 4001-B... -
Page 19: Maintenance
Operation | Maintenance A kickback notice for the chainsaw user CAUTION! A kickback may occur if the front of the bar comes into contact with the subject or if the chain is clamped by material being cut in the section. Upon contacting the subject, the saw may be flung backward with the bar moving up and back towards the operator. -
Page 20: Guide And Chain Installation
Tensioning device screw (4) (fig. 6). Note: A newly installed chain will slightly extend after some time of use. Please check the chain tensioning frequently as a loose chain may easily come out of the guide groove or cause its fast wear. FZP 4001-B... -
Page 21: Fuel And Chain Lubrication Oil
Fuel and chain lubrication oil | Motor operation 8. FUEL AND CHAIN LUBRICATION OIL Fuel (fig. 7) Mix common petrol (lead or lead-free, alcohol-free) with quality oil used in air-cooled two stroke engines (manufacturer recommended oils). Recommended fuel mixing ratios: When using Petrol: Oil up to 20 hours... -
Page 22: Engine Startup
filter is clean and the fuel is properly mixed. If you make the setup on your own, please follow the procedure below carefully. Note: Do not adjust the carburettor unless the chain is in place. FZP 4001-B... -
Page 23: Carburettor Anti-Freeze Device
Motor operation Stop the engine and turn the H and L screws until they both stop. Do not apply excessive force! Then, turn the screws back within the range below: „H“ screw: 1 & ¼ „L“ screw: 1 & ¼ Start the engine and allow it to worm up by pulling out the throttle lever (i.e. -
Page 24: Engine Shutdown
The escape route must be passable. Please make a wedge notch down to a third of the trunk diameter on the side where the tree is supposed do fall. On the opposite side, please make a separation cut above the wedge notch level. FZP 4001-B... - Page 25 Cutting CAUTION! When felling trees, please warn other persons in the neighborhood of a potential hazard. Wedge notch (1) (fig. 22) Separation cut (2) (fig. 22) Falling direction (3) (fig. 22) Debranching and trunk felling CAUTION! Always keep a stable position. Keep off the chunks. The chunk being cut may roll away.
-
Page 26: Maintenance
0,65 mm. Geared pinion (fig. 33): Check the pinion for flaws and excessive wear caused by the chain. Replace the pinion if the wear is high. Never use a new chain together with a worn pinion or vice versa. FZP 4001-B... -
Page 27: Chain And Guide Maintenance
Maintenance | Chain and guide maintenance Fuel filter: Disassemble the filter and wash in petrol or replace with new if necessary. Oil filter: Disassemble the filter and wash in petrol or replace with new if necessary. 12. CHAIN AND GUIDE MAINTENANCE Chain CAUTION To ensure safe and faultless saw operation, it is required that the chain should be sharp at all times. -
Page 28: Specifications
Sprocket (pinion): ............................7Tx0.325 Chain pitch: ..............................0.325 (in) Chain saw inclination: ............................0.058 Strip dimension: ..........................40cm /16 (in) Oil injection system ..................... Automatic pump with a setter Specified noise level: ......................110 dB(A)Instructions Manual - language version only. FZP 4001-B... -
Page 29: Declaration Of Conformity
Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, phone: 323204111, declares with binding effect, that petrol, chain saw Fieldmann FZP 4001-B (the year of manufacture is indicated on a type label and is followed by a serial number of the machine), complies with the requirements of DIRECTIVE OF THE COUNCIL: No. -
Page 30: Disposal
This product meets all fundamental requirements of EU directives relating to it. Changes of the text, design and technical specifications can be done without prior notice and we reserve the right for the changes. FZP 4001-B...
