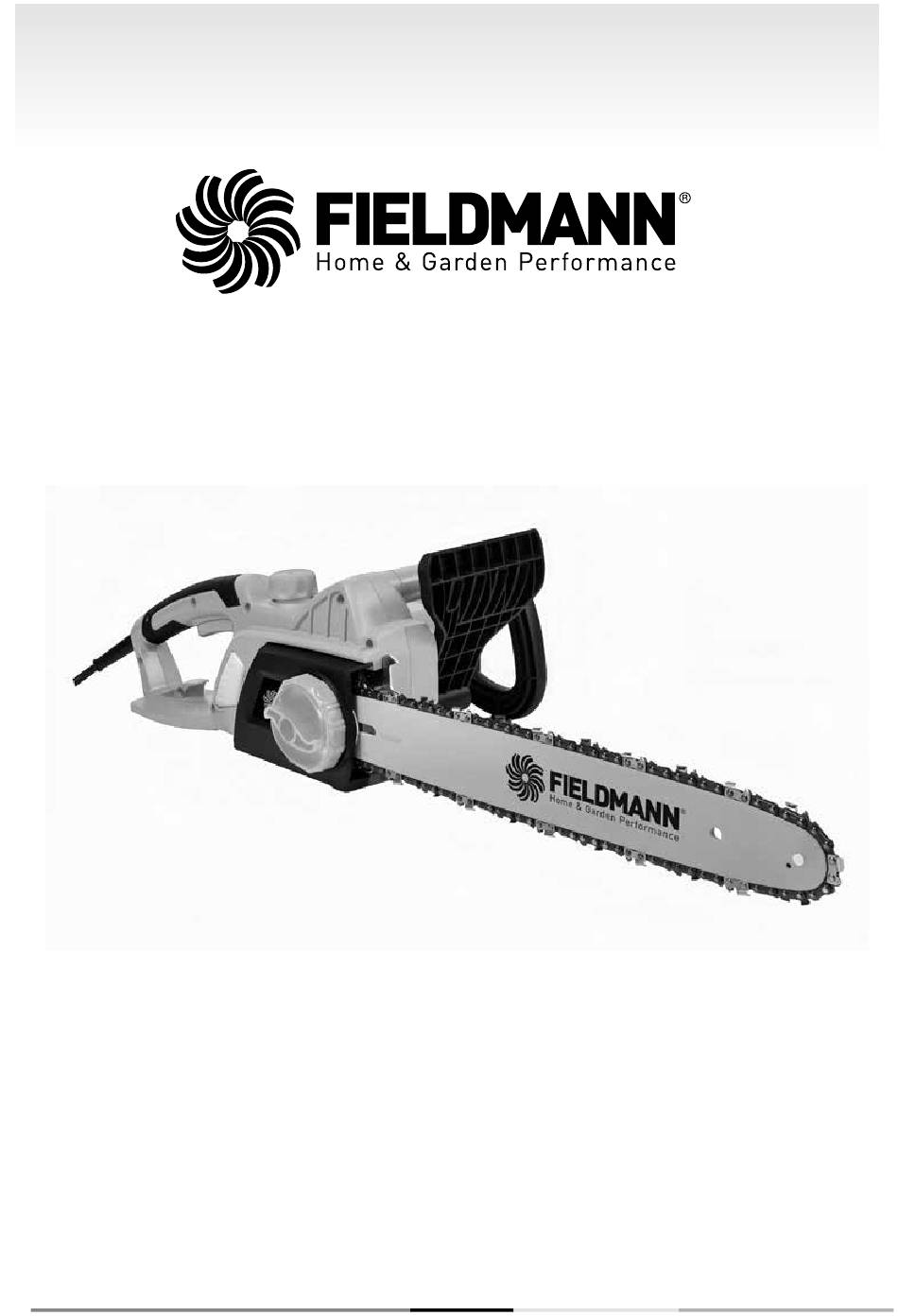

- Page 1 FZP 2110-E...
- Page 2 English ....................................3–20 Čeština .................................... 21–38 Slovenčina ..................................39–56 Magyarul ..................................57–74 Polski ....................................75–92 Slovenščina ................................93–112 FZP 2110-E...
-
Page 3: Table Of Contents
Table of Contents Chain saw USER'S MANUAL TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .......................... 4 2. SYMBOLS ................................... 5 3. SAFETY INSTRUCTIONS ..............................7 4. DESCRIPTION OF THE CHAIN SAW ........................9 5. INSTALLING THE GUIDE BAR AND CHAIN .......................10 6. -
Page 4: General Safety Instructions
Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZP 2110-E... -
Page 5: Symbols
Symbols 2. SYMBOLS Do not expose the power tool to rain. Before using the power tool, carefully read the user's manual. In the event that the power cord is damaged, immediately disconnect it from the power supply. Always wear protective glasses during work. - Page 6 DANGER! Do not use the power tool if there are children, other persons or animals in your vicinity. While working use protective gloves. Use solid insulating work footwear. Use hearing protection. Before any maintenance operation, always unplug the power cord from the mains socket. FZP 2110-E...
-
Page 7: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! Acquaint yourself with all warnings and safety instructions and with operation instructions for the power tool. ATTENTION! Not adhering to warnings or safety instructions may result in injury by electrical shock, a fire and/or serious injury. - Page 8 Using power tools for tasks other than for which they are designed may lead to dangerous situations. FZP 2110-E...
-
Page 9: Description Of The Chain Saw
Safety instructions | Description of the chain saw Service Have your power tool repaired by a qualified person that will use original spare parts. In this manner, the same level of safety will be ensured as before the repair of the power tool. Storage only move or store the power tool with the protective cover attached carefully clean and perform appropriate maintenance before storing the power tool... -
Page 10: Installing The Guide Bar And Chain
6. FILLING THE CHAIN SAW OIL TANK ATTENTION! A new chain requires a certain running-in period, which is usually 5 minutes. The lubrication of the chain is very important during this phase. After this running-in period, check the chain tension and readjust if necessary. FZP 2110-E... -
Page 11: Operating The Chain Saw
Filling the chain saw oil tank | Operating the chain saw The oil tank on the supplied chain saw is empty. Fill this oil tank with oil prior to first use of this chain saw. Only use oil specified for total-loss lubrication Screw off the oil tank cap (fig. -
Page 12: Chain Brake
3 to 4 mm). Firmly tighten the guide bar fastening nut (fig. 1, point 8). ATTENTION! Do not tension the chain excessively. Excessive tension of a warm chain may result in excessively tension when it cools down. FZP 2110-E... -
Page 13: Using The Chain Saw
Using the chain saw | Cutting 10. USING THE CHAIN SAW Before starting any kind of work, thoroughly acquaint yourself with the sections describing the safety instructions for the operation of the chain saw. We recommend that you acquire experience by practising on waste wood. - Page 14 In part "A" make a cut from below to a third of the log and then complete the cut from above. In part "B" make a cut from above to a third of the log and then complete the cut from below. FZP 2110-E...
-
Page 15: Cleaning And Maintenance
Cutting | Cleaning and maintenance Removing a fallen tree First find out to which side the branch is bent. Then make the initial cut from the side of the bend and then complete the cut from the opposite side. ATTENTION! A bent branch may spring up. -
Page 16: Sharpening The Saw Chain
Place the file guide at the required angle (mark A, see figure). Check that the mark is at 30° on the file guide aligned with the centre of the guide bar. This will ensure that you will file at an angle of 30°. FZP 2110-E... -
Page 17: Replacing The Saw Chain
Sharpening the saw chain | Replacing the saw chain File the tooth in the direction from inside out (in direction B, see figure) until it is sharp. File only in this direction. Note: Two to three passes of the file should be sufficient to sharpen the tooth. Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. -
Page 18: Storage
Wipe the body of the chain saw with a cloth. When cleaning, use a soft cloth dipped in a soap solution. Store the chain saw • In higher shelves or in locked areas out of children's reach • in a dry location FZP 2110-E... -
Page 19: Technical Specifications
Technical specifications | Disposal 16. TECHNICAL SPECIFICATIONS Power input 1800 W Voltage/frequency 230 V - 240 V / 50 Hz Chain pitch 3/8“ Guiding groove width 1.3 mm Number of chain links 52 links Length of the guide bar 35 cm File diameter 4 mm Cutting speed... -
Page 20: Declaration Of Conformity
18. EU DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product / brand: Electric Chain Saw / FIELDMANN Type / model: FZP 2110-E as factory model HT7102C14-1 AC 230 – 240 V, 50Hz, 1800W, Class II, IPX0 = 95,2 dB(A), L = 107 dB(A) Manufacturer: FAST ČR, a.s.
