Summary of Contents for Fieldmann FZP 5016 B

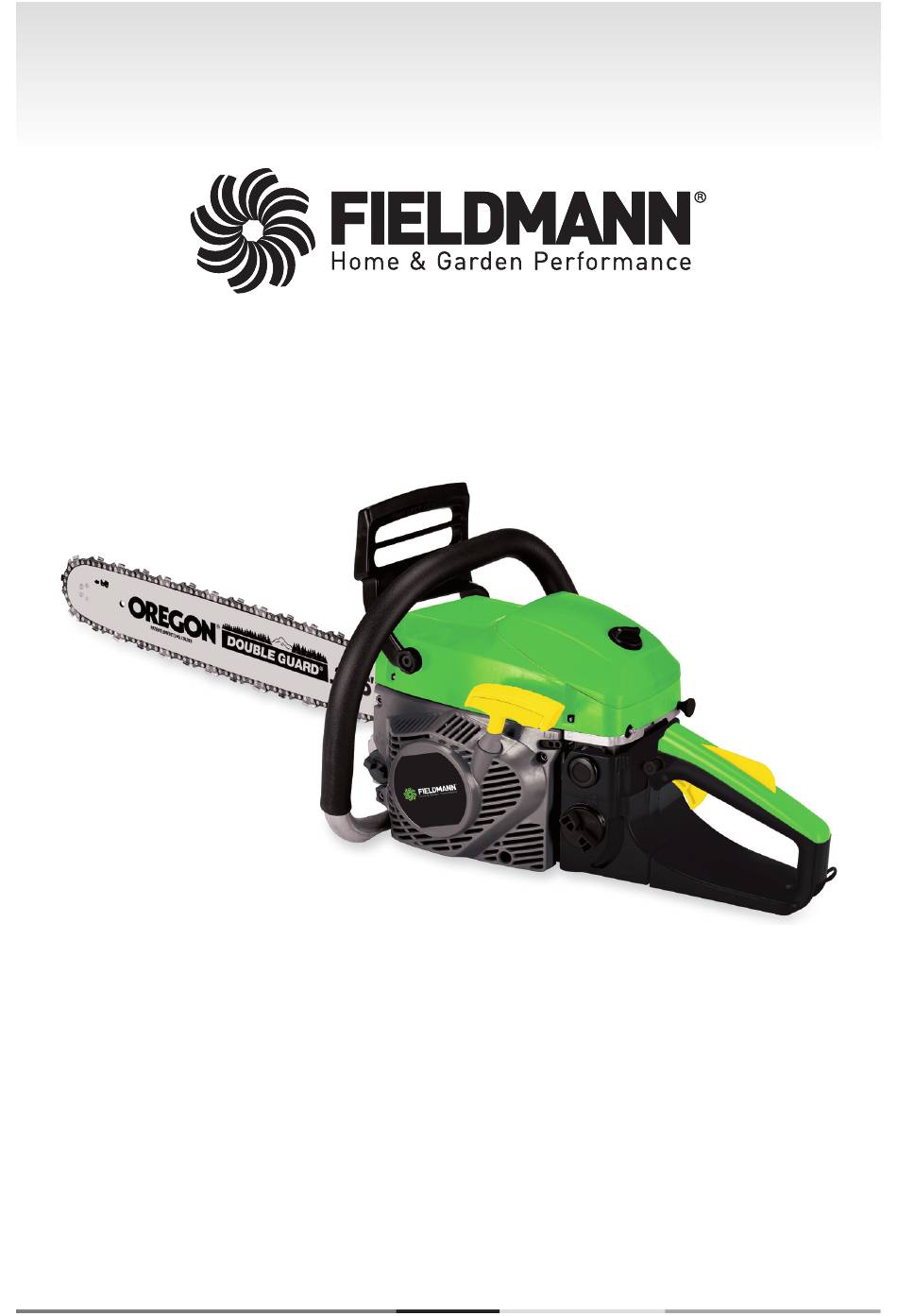

- Page 1 FZP 5016 B...
-
Page 2: Table Of Contents
Table of Contents Chain saw USER'S MANUAL Thank you for purchasing this chain saw. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS 1. GENERAL SAFETY INSTRUCTIONS ........................5 Important safety information ..........................5 Packaging .................................. - Page 3 Sharpening the teeth on the chain .........................20 Filing the depth gauge ............................21 13. REPLACING THE SAW CHAIN ..........................22 14. MAINTENANCE TABLE ..............................23 15. TROUBLESHOOTING ..............................24 16. TECHNICAL SPECIFICATIONS ..........................25 17. DISPOSAL ..................................26 18. DECLARATION OF CONFORMITY ........................27 FZP 5016 B...
-
Page 4: General Safety Instructions
General safety instructions 1. GENERAL SAFETY INSTRUCTIONS Important safety notice Carefully unpack the product and take care not to throw away any part of the packaging before you fi nd all the parts of the product. Store the product in a dry place out of reach of children. Read all warnings and instructions. -
Page 5: Explanation Of Instruction Labels On The Machine
When operating the power tool, wear protective aids such as safety glasses, earmuffs, etc. Always use two hands when operating the chain saw. While working use protective gloves. Use solid insulating work footwear. Attention! Danger of kickback Warning! Attention! FZP 5016 B... -
Page 6: Safety Instructions
Safety Instructions 3. SAFETY INSTRUCTIONS ATTENTION! The safety instructions in this user’s manual are marked with the symbol containing critical points, which one needs to pay attention to when operating the power tool to prevent serious or fatal injuries. Please carefully study the instructions and adhere to them. ATTENTION! This symbol indicates instructions that must be adhered to in order to prevent accidents that could result in serious or fatal injuries. - Page 7 A stable stance must be maintained at all times when cutting, do not cut above shoulder height. Adhere to the instructions of the manufacturer for lubricating and sharpening the chain. Only use spare chains and guide bars specifi ed by the manufacturer or their equivalents. FZP 5016 B...
-
Page 8: Instructions For Handling Fuel
Safety Instructions Instructions for handling fuel The engine of the power tool is designed to use a highly fl ammable fuel mix. Never store fuel containers or refi ll fuel in the vicinity of an open fl ame, wood stove, electrical lines, welding work or other sources of heat or fl ame, which could lead to ignition. -
Page 9: Description Of The Power Tool And Included Contents
5. Oil tank cap 12. Choke lever 6. Front handle 13. Throttle trigger lock Included contents: Petrol chain saw, 405 mm guide bar Oregon, Oregon chain, plastic guide bar cover, calibrated fuel mixing container, tool set with fi le. FZP 5016 B... -
Page 10: Installing The Bumper Spikes, Guide Bar And Chain
Installing the bumper spikes, guide bar and chain 5. INSTALLING THE BUMPER SPIKES, GUIDE BAR AND CHAIN ATTENTION! Always wear protective gloves when installing and inspecting the chain to prevent injury from the sharp cutting edges on the chain. Installing the bumper spikes Using the included hex key and screws, attach the bumper spikes, see picture (Fig. -
Page 11: Fuel And Chain Lubricating Oil
We recommend the use of the calibrated container supplied with the chain saw for mixing the fuel mix. DO NOT MIX THE PETROL AND OIL DIRECTLY IN THE FUEL TANK. Screw off the fuel tank cap (Fig. 6, point 2) and pour in the fuel. Then screw the cap back on. FZP 5016 B... -
Page 12: Storing Fuel
Fuel and chain lubricating oil | Preparing for operation Storing fuel Only store fuel in a clean, safe and approved canister. Inform yourself about and adhere to local directives related to the type and storage of canisters fi lled with fuel. -
Page 13: Chain Brake (Fig. 1, Point 9)
(the engine will show signs of attempting to start) (Fig. 8). 4. At this point, push the choke lever back in (Fig. 7, point 2) and start the engine by repeatedly pulling on the starting cord. FZP 5016 B... -
Page 14: Starting A Warm Engine
Turning the chain saw on and off ATTENTION! Spinning the engine for too long Fig. 7 with the choke lever pulled out will result in fl ooding of the engine and problems with starting it up. 5. Prior to starting work, leave the engine to warm up for a few minutes to get up to operating temperature. -
Page 15: Adjusting The Chain Tension
Run the chainsaw at full speed for 1 - 2 seconds and then tilt the front protective cover. The chain must stop immediately even when the engine is running at high speed. If the chain stops slowly or does not stop at all, please contact an authorised service centre. FZP 5016 B... -
Page 16: Felling Trees
Cutting It is extremely important to check the working order of the chain brake and the sharpness of the chain before every use to ensure that the necessary level of safety in the event of a kickback is maintained. Removing safety accessories, incorrect maintenance or when using unsuitable guide bars or chains may, in the event of kickback, result in serious injuries. -
Page 17: Log Above The Ground
Maintenance after every use Remove the guide bar and use a brush to clean away accumulated sawdust from the entire chain saw. Use a spatula or screwdriver to remove stubborn dirt. FZP 5016 B... -
Page 18: Cleaning The Body Of The Chain Saw
Cleaning and maintenance Air fi lter: Loosen the screw (Fig 1, point 11) and remove the air fi lter cover. Take out the fi lter insert and use a brush to remove the dust. If the fi lter insert is clogged with dust, dismantle into 2 parts and wash it out in petrol. If you are using compressed air, blow from the inside out. -
Page 19: Sharpening The Saw Chain
File the tooth in the direction from inside out (in direction B, see fi gure) until it is sharp. File only in this direction. NOTE: Two to three passes of the fi le should be suffi cient to sharpen the tooth. FZP 5016 B... -
Page 20: Filing The Depth Gauge
Sharpening the saw chain Filing the depth gauge As a result of sharpening the teeth on the chain, the depth gauge tolerance is reduced. After every second or third sharpening, it is necessary to adjust the depth gauge setting. Place the depth gauge adjustment jig (see fi... -
Page 21: Replacing The Saw Chain
Adjust the tension of the saw chain. Tighten the guide bar bolt. ATTENTION! Check that you have not placed the saw chain on the guide bar in the opposite direction. Otherwise, the chain saw will exhibit excessive vibrations and will not cut. FZP 5016 B... -
Page 22: Maintenance Table
Maintenance table 14. MAINTENANCE TABLE Please understand that the following maintenance intervals apply only Before After every Every week When As required to standard work conditions. In the event that your daily work is more every pause damage of demanding than normal, the maintenance intervals for adding defect must be shortened correspondingly. -
Page 23: Troubleshooting
4. See instructions in chapter 11. and 13. touch the chain 3. Guide bar and 5. If necessary, replace it; contact an authorised service chain installation centre 4. Damaged chain and/or guide bar 5. Damaged clutch and/or pinion FZP 5016 B... -
Page 24: Technical Specifications
Technical Parameters 16. TECHNICAL PARAMETERS Type......................................FZP 5016 B Engine ......................................50.4 cm Maximum engine power............................ 2.0 kW / 11.500 rpm Maximum engine speed with cutting tool ........................11.500 rpm Maximum engine speed when idling ..........................3.000 rpm Guide bar length ................................... 405 mm Cutting length .................................... -
Page 25: Disposal
This product meets all the basic requirements of EU directives that apply to it. Changes in the text, design and technical specifi cations may be made without prior notice and we reserve the right to make these changes. User s manual in the original language. FZP 5016 B... -
Page 26: Declaration Of Conformity
Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, phone: 323204111, declares with binding effect, that petrol, chain saw Fieldmann FZP 5016-B (the year of manufacture is indicated on a type label and is followed by a serial number of the machine), complies with the requirements of DIRECTIVE OF THE COUNCIL... - Page 27 Notes FZP 5016 B...
