Security Switch

5.7. Security Switch
When the security switch is in its locked position, the Communicator built-in web interface can not be accessed
and the Communicator can not be configured using the built-in web interface. Network specific parameters,
configured via the PLC is still available.
To Lock and Unlock the Security Switch

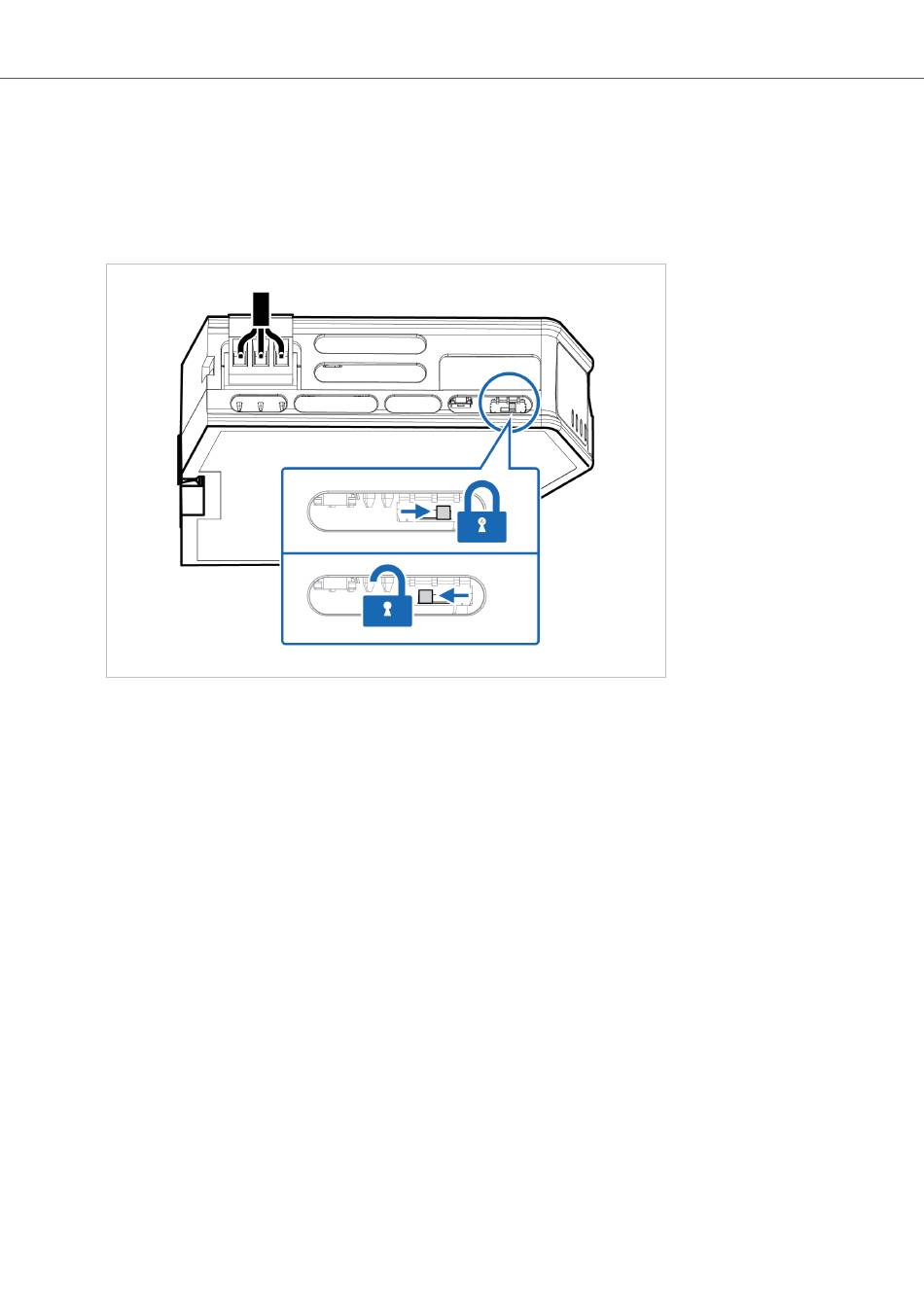

Figure 11. Security switch in locked and unlocked position
Use a pointed object, such as a ballpoint pen.
• To lock the security switch, push the toggle towards the Communicator front.
• To unlock the security switch, push the toggle towards the Communicator back.
Page 18 of 56 SCM-1202-198 Version 1.0
