Summary of Contents for Seaga Victory Series

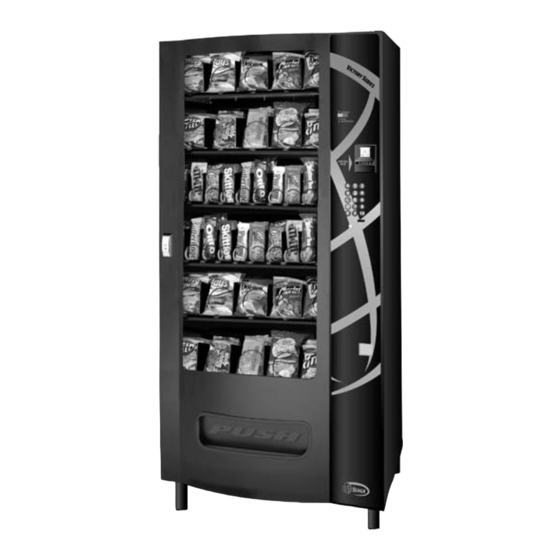

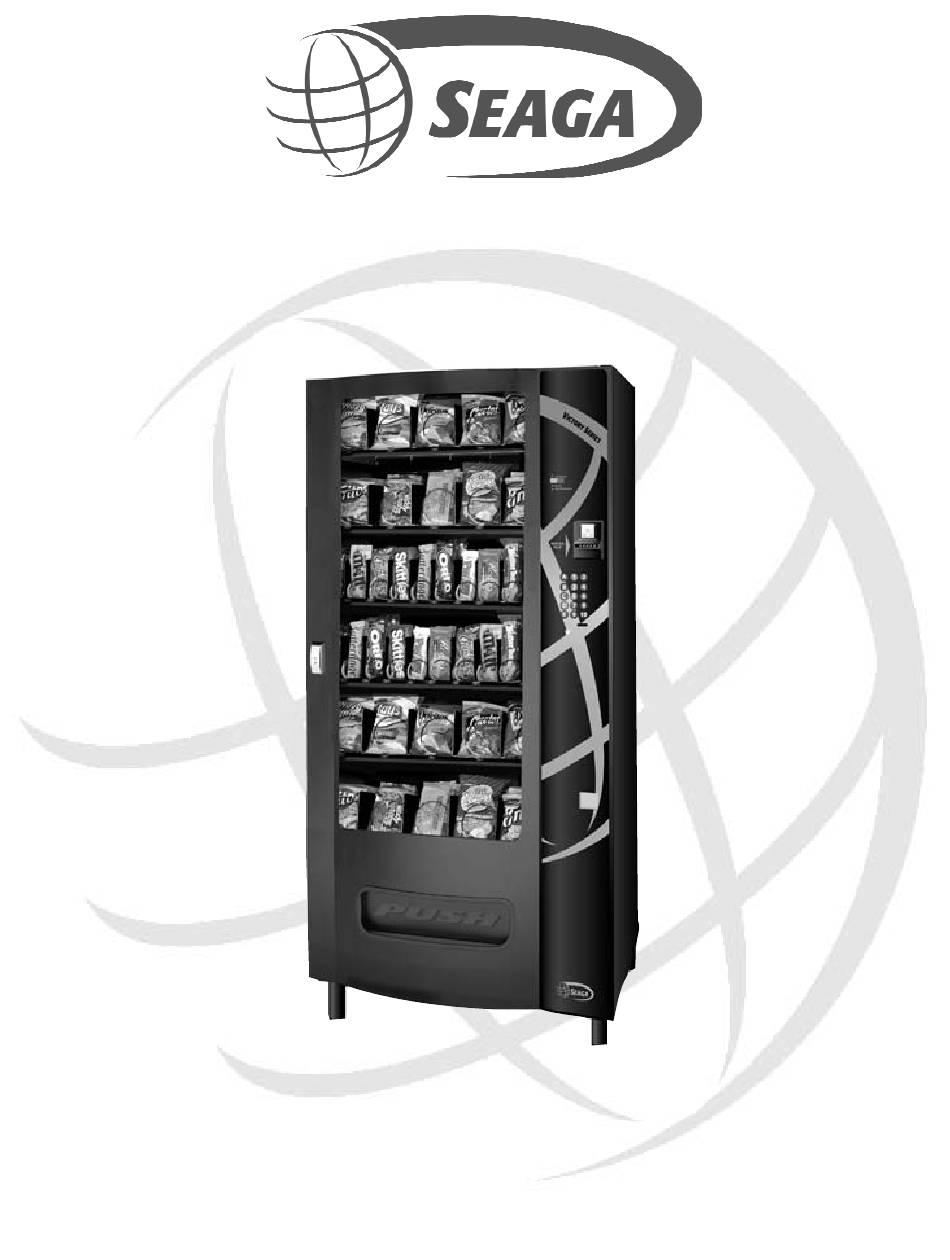

- Page 1 VC6000 Victory Series Snack Vendor Operator’s Manual Seaga Manufacturing, Inc. 700 Seaga Drive Freeport, IL USA 61032 www.seagamfg.com...
- Page 2 Victory Series Snack Vendor VC6000 Display Window LED Display Front Door Bill Validator Keypad Coin Slot Lock Coin Return Button Coin Return Door Product Door...
-
Page 3: Electrical Connection
LOCK Your Victory Series Snack Vendor has one Lock, more commonly known as a "T" handle Lock. To unlock the Front Panel, insert key and turn clockwise ¼ turn. When unlocked the "T" of the Lock will spring out from the vendor. Turn ¼ turn clockwise to open Front Panel. - Page 4 KEYPAD AND LED DISPLAY The Keypad is a touch sensitive operation. Light pressure will be necessary to activate each number or letter. The vendor's Keypad is used by the customer to make their selection, and by the operator to set and test many functions of the vendor. (Fig.
-
Page 5: Delivery System
PRODUCT TRAYS The Victory Series Snack Vendor features lock and release product trays. Below each product tray you will find a Locking Lever on each side. To pull out the Product Tray push up on both Locking Levers, lift the Product Tray slightly, pull out and tilt down. -
Page 6: Loading Product
LOADING PRODUCT To present your product in as an attractive and professional manner as possible, do not load any damaged items, and make sure items are facing forward for easy identification by your customer. Note: The size of the item being vended must be larger than the Helix Coil, but smaller than the Product Chute, to vend correctly. Never force an oversized item into the Helix Coil or Product Chute, nor attempt to vend an item that is smaller than the Helix Coil as this will create problems and deter customers. - Page 7 DRIVER MOTORS Each selection is vended by the action of the Driver Motor. The Driver Motors are clipped to the rear of each Product Tray. In the rare event of a jam a Driver Motor may need to be returned to its home position. The home position is when the shaft of Figure 6 Gray and White Driver Motor Driver Motor Color Wire...
-
Page 8: General Notes
Figure 7 Motor Removal Tilt Press B.) Pull Product Tray fully forward, keeping it level. C.) Lift Product Tray to release from the track. Then can be pulled forward and lifted out. Caution: The Product Tray Wire Harness will need to be unplugged prior to complete removal of the product tray. The Wiring Harness is plugged into the inside right-hand side of the vendor. -
Page 9: Coin Validator
In the event of a power outage, will I have to reprogram my vendor? No. Your selection prices are safely stored. The vendor will not allow me to change prices. Reset the Circuit Board by pressing the Red Service Mode button while unplugging the vendor. -
Page 10: Clearing Jams
Figure 10 Thumb Tabs Tilt Thumb Tabs CLEARING JAMS To clear a jam, remove the Hopper Assembly. 1. To Remove the Hopper Assembly. A.) Unlock and open the Front Door, unplug vendor. B.) Push the Thumb Tabs up, and tilt the Coin Hopper forward. (Fig. 10) C.) Lift and remove. - Page 11 Figure 12 Coin Hopper Removal Mounting Screws (3) Ribbon Cable Coin Hopper The Bill Validator allows your customers to pay for their purchase with paper currency. Your optional Bill Validator is installed at the factory, and is set to validate $1, and $5 bills, but will not accept $5's unless the Coin Chutes are nearly full. The Bill Validator can be set to also accept $10, and $20 bills.
- Page 12 Cleaning with a Cleaning Card, cleaning the Optics, and washing the Lower Housing. 1. Cleaning with a Cleaning Card, will perform a basic clean. The vendor does not need to be opened. Seaga Manufacturing rec- ommends CLEAN TEAM cards that can be obtained online at www.cleanteam.com or by calling 1-800-888-8830.
- Page 13 Figure 15 Lens Cleaning Red Lenses Bill Validator Clear Lenses Lower Housing COMMON QUESTIONS AND ANSWERS Coin Validator will not accept coins. Lenses may be dirty. Coins may be damaged or worn. Wire Harness may not be connected properly. Coin Validator may not have power. Bill Validator will not accept bills.
