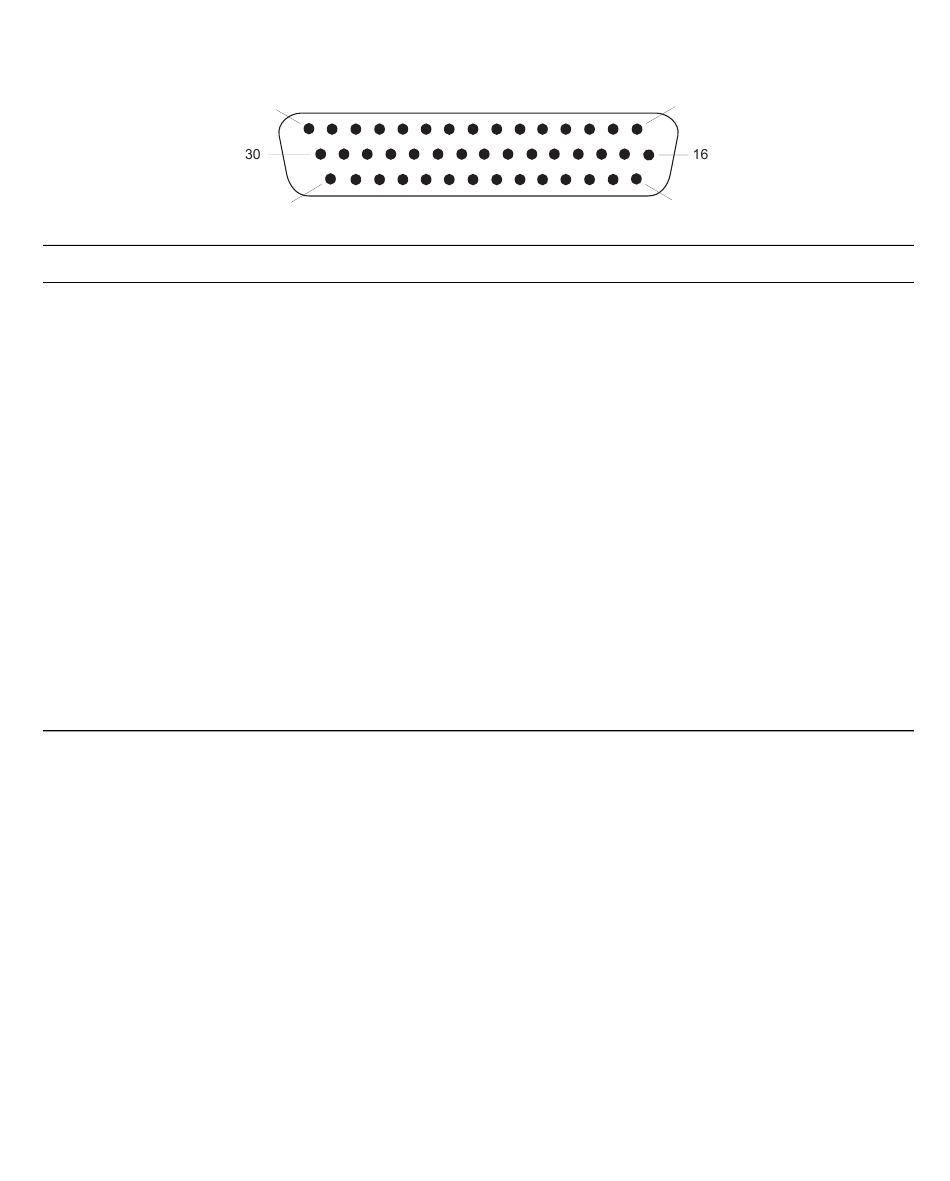

Analog input/output connector pinout

# Description
1. Preview Out Composite
2. Ground
3. Program Out Composite
4. Ground
5. Program Out C
6. Ground
7. Program Out (B-Y)
8. Ground
9. Reference In
10. Ground
††
11. (B-Y) In 2 or C In 2
12. Ground
13. (R-Y) In 1
14. Ground
† ††
15. Y In 1 or Composite In 1
,
†
When configured as an S-Video input.
††
When configured as a component video input.
†††
When configured as a composite input.
††††
Valid for DigiMix baseboard hardware revision 584_03 and later.
This pin carries a ground connection on earlier models.
†††††
No connection on DigiMix hardware revision 584_03 and later.
Appendix A: DigiMix Specifications
15
44
# Description
16. Preview Out C
17. Ground
18. Linear Key Out
19. Ground
20. Ground
21. Ground
22. Program Out (R-Y)
23. Reference In Loopback
24. Ground
25. Ground
†
26. –12 VDC or N/C
27. Ground
28. Ground
29. +12 VDC or N/C
†††
30. Ground
1
31
# Description
31. Preview Out Y
32. Ground
33. Ground
34. Program Out Y (Component)
35. Program Out Y (S-Video)
36. Ground
37. Ground
††††
38. Y In 3
39. Ground
40. C In 3
†††††
41. Ground
42. Y In 2
43. Ground
†††††
44. (B-Y) In 1
† †††
or Composite In 3
† †††
or (R-Y) In 2
† ††
or Composite In 2
,
†† †
or C In 1
††
