Quick Start Guide
2.4.1
Debug Port Connection
1.
Connect debug cable to COM2 debug port.
2.
Connect the other side of debug adapter to USB-to-RS-232 cable then connect
to your PC.
2.4.2
Debug Port Setting
EPC-R4710 can communicate with a host servers using serial cables. Common
serial communication programs such as HyperTerminal, Tera Term, or PuTTY can be
used in these cases. The following example describes the serial terminal setup using
HyperTerminal on a Windows host:
1.
Connect EPC-R4710 with your PC by using a serial cable.
2.
Open HyperTerminal on your Windows PC, and select the settings as shown in
Figure 2-7.
3.
After the bootloader is programmed on the SD card, insert the power adapter
connector to the DC jack on EPC-R4710 to power up the board. The bootloader
prompt is displayed on the terminal screen.

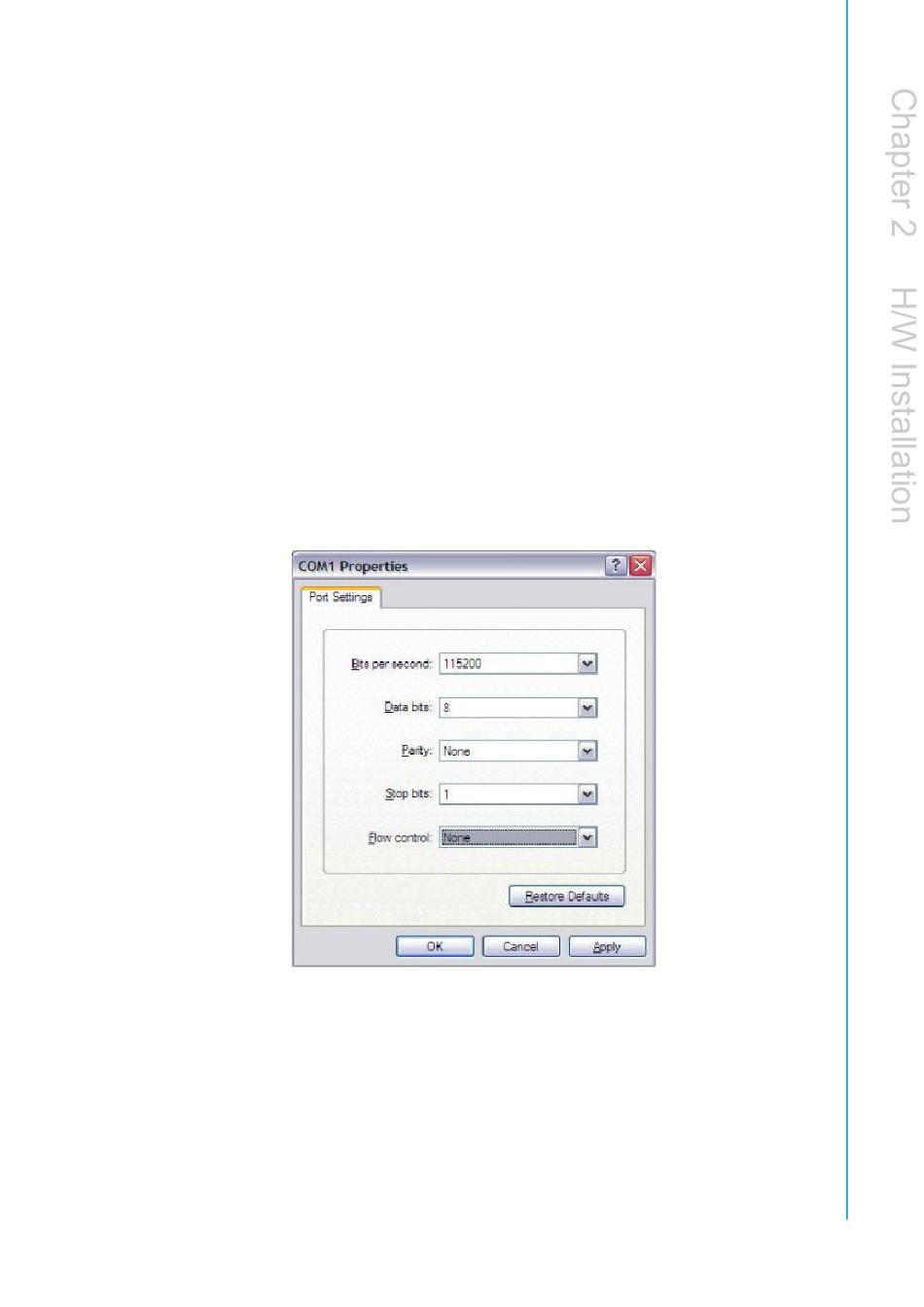

Figure 2.1 HyperTerminal Settings for Terminal Setup
15
EPC-R4710 User Manual
