2014 Kenworth K370 Installation Guide

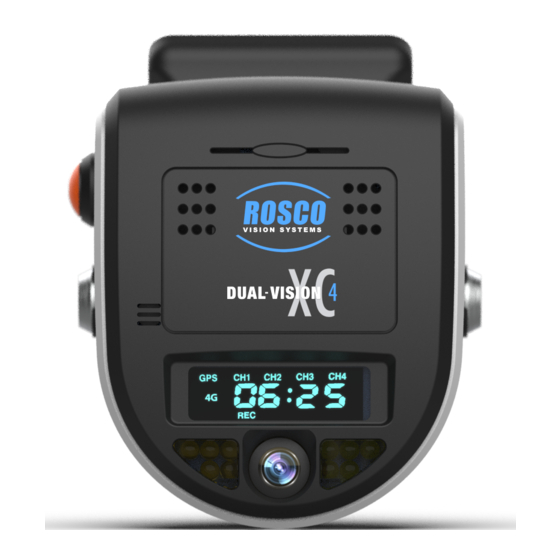

This guide will show the proper way to install a Dual-Vision XC4 Camera in a 2014 Kenworth K370. Please
review the Installation Guidelines for grounding and making connections prior to installing. In this guide
you will find dash removal, wire locations, & mounting locations.
Verify no vehicle service lights are on prior to installation. Contact a Fleet Manager immediately if the
After testing and verifying power wires, disconnect the negative battery terminal to prevent any
***Harness DV457 is needed if trigger wires are being connected***
For Technical Support please contact our support team at:
Gray – Caution
Red – Warning
Version 4.10.2
Proprietary and Confidential
vehicle has any damage
accidental shorts or blown fuses
th,
UPDATED October 15
***NEW PART***
Techsupport@Roscovision.com
2014 Kenworth K370
2018
Blue – Extra Installation Parts Needed
Purple – New Installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the XC4 and is the answer not in the manual?

Questions and answers

Related Manuals for Rosco XC4

Summary of Contents for Rosco XC4

  • Page 1 2014 Kenworth K370 Installation Guide This guide will show the proper way to install a Dual-Vision XC4 Camera in a 2014 Kenworth K370. Please review the Installation Guidelines for grounding and making connections prior to installing. In this guide you will find dash removal, wire locations, & mounting locations.
