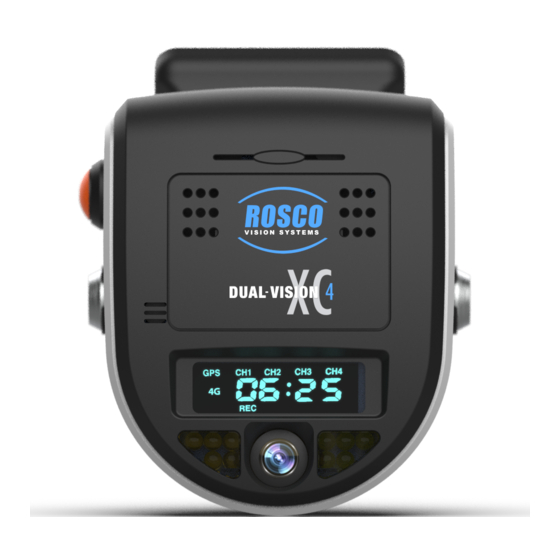

Rosco DUAL-VISION XC4 Quick Start Installation Manual

never bend the antenna cable

Always loosely coil up extra antenna
cable. Never bend or pinch the antenna
cable. When routing antenna cables
around the dash do not force the cable
between the panels. Check for pinch
points or sharp brackets behind the dash
that may rip or damage the cable.

antenna mounting

When mounting the antenna, make sure
the FLAT side of the antenna has a clear
view of the sky. We recommend mounting
the antenna on the windshield.

POST INSTALLATION CHECKLIST

⸋ Is the red wire connected to constant
power (ahead of kill switch if
applicable)?
⸋ Is the yellow wire connected to ignition
power?
⸋ Did you adjust the camera angle?
⸋ Are both lens protectors removed?
⸋ Are all components and cables secured
with zip ties?
⸋ Is the antenna mounted the correct
way?
WE'RE HERE TO HELP
IF YOU HAVE ANY VEHICLE-RELATED OR TECHNICAL
QUESTIONS, PLEASE FEEL FREE TO REACH OUT TO US
VIS THE METHODS BELOW.
EMAIL US: TECHSUPPORT@ROSCOVISION.COM
CALL US: 718.526.2601
VISIT OUR WEBSITE: WWW.ROSCOVISION.COM
SCAN ME FOR DVXC4 USER
MANUALS ON ROSCO CLOUD WIKI*
https://wiki.roscocloud.com/us-
er:product:dual-vision_recording:du-
al-vision_xc4:user_manual
*Login required to access Rosco Wiki pages
DUAL-VISION
QUICK START INSTALLATION GUIDE
SCAN ME FOR DVXC4 INSTALLATION
GUIDE ON ROSCO CLOUD WIKI*
90-21 144TH PLACE
JAMAICA, NY 11435
https://wiki.roscocloud.com/user:product:dual-vision_re-
cording:dual-vision_xc4:installation_guide:home
LIT P/N: MNLDV440QSG
VERSION 1.0
12/17/2018
*Login required to access Rosco Wiki pages
XC4
TM
DV440
