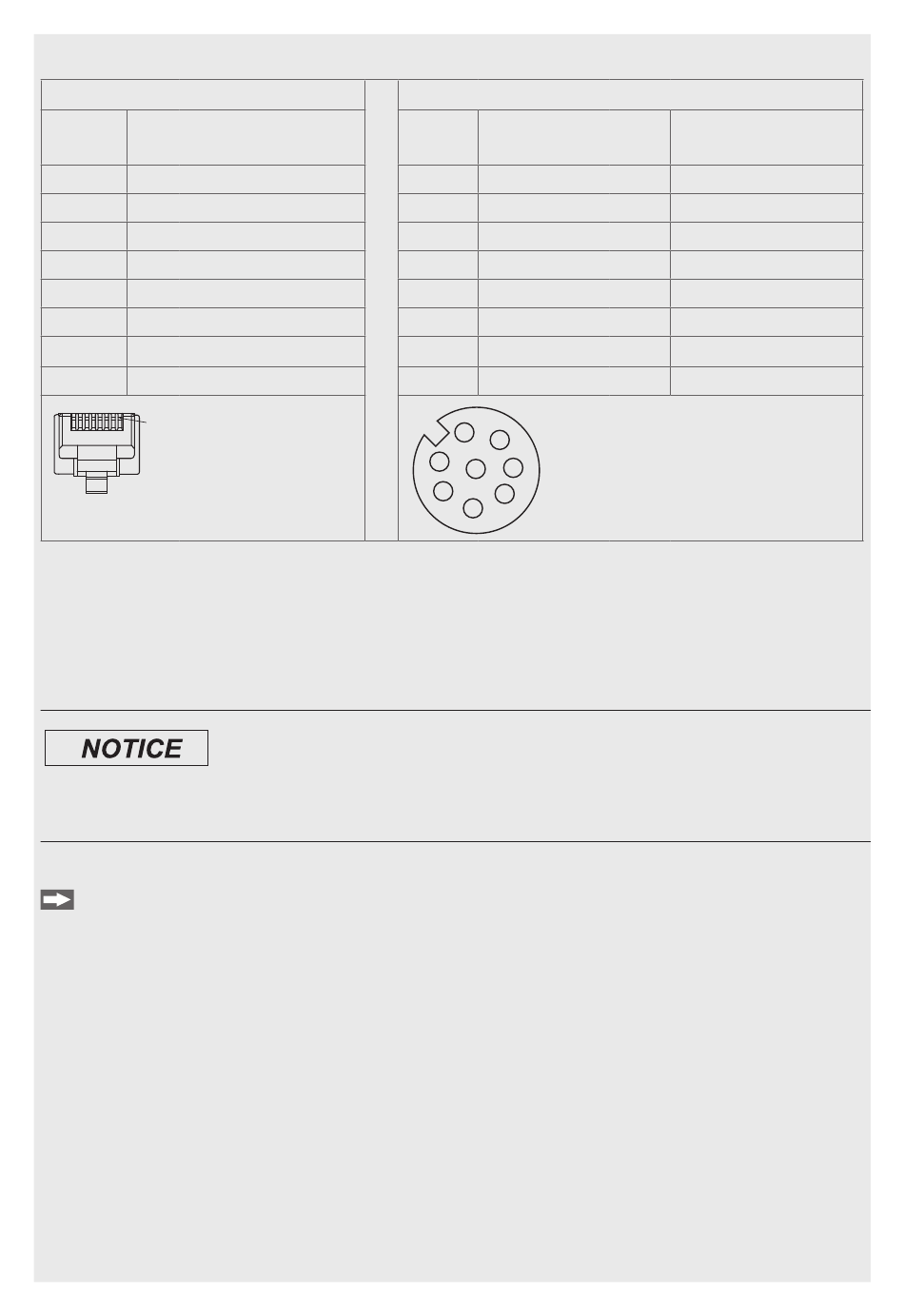

Ethernet Connection, Standard Connection to PC
RJ45 connector
Pin no. Color of stranded hook-
up wire SCR3000A-x
1 White (orange)
2 Orange
3 White (green)
4 Blue
5 White (blue)
6 Green
7 White (brown)
8 Brown
View on pin side
1
of male cable
connector
- The sensor supports an automatic, sensor-specific IP address in the link-local net
(169.254.x.x). No collision detection is implemented. This is also the default setting.
- The sensor supports DHCP . This setting is activated by default and has priority over
search the link-local net.
- The scanCONTROL 25xx/BL sensor supports Power over Ethernet.
- A fixed IP address can be assigned.
Use the sensorTOOL program to specify the sensor settings
described above.
The program is available online at
TOOL.exe.
scanCONTROL 25xx
8-pin screw connector (sensor side)
Pin no. 10BaseT,
5
6
8
1
2
7
3
4
If the sensor is connected to a POE-capable network adapter/
switch and you also use the power supply of the multifunction port,
these two power supplies must be galvanically isolated.
> Damage to the sensor and/or Ethernet card!
www.micro-epsilon.com/download/software/sensor-
100BaseTX
Tx+
Tx-
Rx+
Rx-
2
3
1
8
4
7
5
6
1000BaseT
D1+
D1-
D2+
D3+
D3-
D2-
D4+
D4-
View on solder side
(cable) of screw connec-
tor (A-coded)
