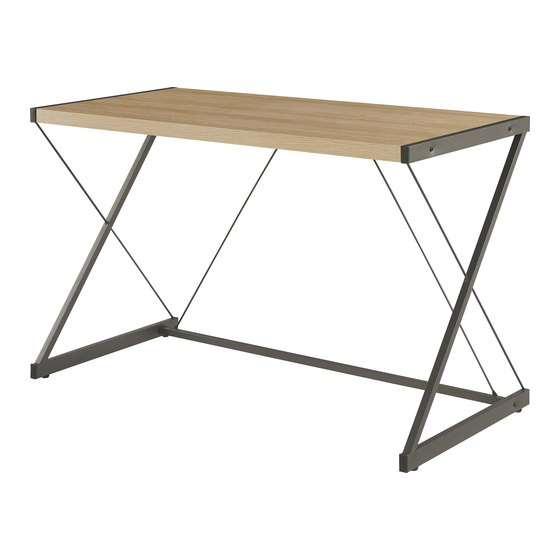

47” computer desk

Advertisement

Quick Links

USER GUIDE
47" Computer
Desk
NS-ODS3
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-ODS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-ODS3

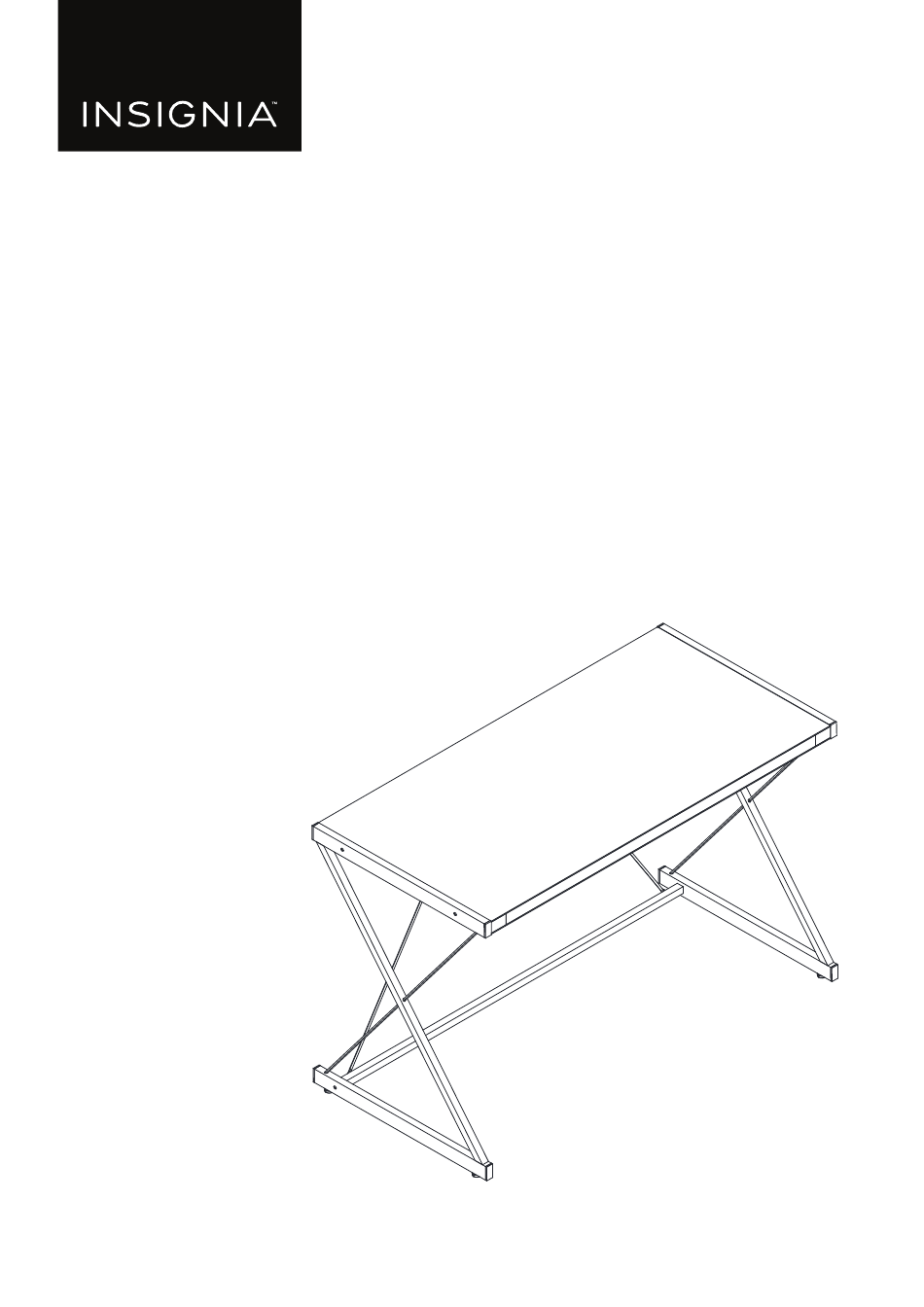

  • Page 1 USER GUIDE 47” Computer Desk NS-ODS3 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY ................. . .10 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-ODS3 represents the state of the art in desk design and is designed for reliable and trouble-free performance.
  • Page 3: Features

    47” Computer Desk Features • Metal legs help to provide stability • Holds up to 70 lbs. Dimensions 47 in. (119.4 cm) 1.5 in. (3.8 cm) 30 in. (76.2 cm) 28.5 in. (72.4 cm) 23.2 in. (59 cm) Parts included Desktop Leg frames (2) Bottom support bar...
  • Page 4: Hardware Included

    Hardware included LABEL HARDWARE QTY. LABEL HARDWARE QTY. M6 × 45 mm Hex wrench bolts Washers Anchors Wall straps Ø4 × 40 mm screws M6 × 15 mm bolts Ø4 × 25 mm screws Tools needed CAUTION: Do not use a drill to assemble your desk. The drill should only be used to secure your desk to the wall (step 3). Phillips screwdriver (PH2) Hammer Drill with 1/4 in.
  • Page 5: Assembling Your Desk

    47” Computer Desk Assembling your desk STEP 1: Attach the leg frames and bottom support bar You need: Desktop Leg frames (2) Bottom support bar Hex wrench M6 × 45 mm bolts (6) Align a leg frame (2) with the holes on a side of the desktop, making sure that the hole near the foot is toward the back of the desktop.
  • Page 6: Step 2: Attach The Left And Right Support Bars And Wall Straps

    STEP 2: Attach the left and right support bars and wall straps You need: Right support bar M6 × 15 mm bolts (2) Ø4 × 25 mm (4) Left support bar Hex wrench Washers (2) Wall straps (2) Phillips screwdriver Align the straight end of the left support bar (4) with the hole on the left side of the bottom support bar (3), then secure with an M6 ×...
  • Page 7: Step 3: Secure Your Desk To The Wall

    47” Computer Desk STEP 3: Secure your desk to the wall You need: Washers (2) Anchors (2) Ø4 × 40 mm screws (2) Drill with 1/4 in. (6 mm) bit Phillips screwdriver Hammer WARNING: • DO NOT SKIP THIS STEP. Securing your desk protects children and pets from accidental tip-overs and injury. •...
  • Page 8: Step 4: Leveling Your Desk

    STEP 4: Leveling your desk • You can adjust the desk’s feet to level the desk. www.insigniaproducts.com...
  • Page 9: Cleaning Your Desk

    47” Computer Desk Cleaning your desk • Clean the surface of your desk with a duster or damp cloth only. • Do not use abrasive cleaners. Specifications Dimensions (H × W × D) 30 × 47 × 23.2 in. (76.2 × 119.4 × 59 cm) Weight 23.3 lbs.
  • Page 10: One-Year Limited Warranty

    Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges.
  • Page 11 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2022 Best Buy. All rights reserved.
