USER GUIDE
L-Shaped
Computer Desk
NS-ODL3
Before using your new product, please read these instructions to prevent any damage.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NS-ODL3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Insignia NS-ODL3

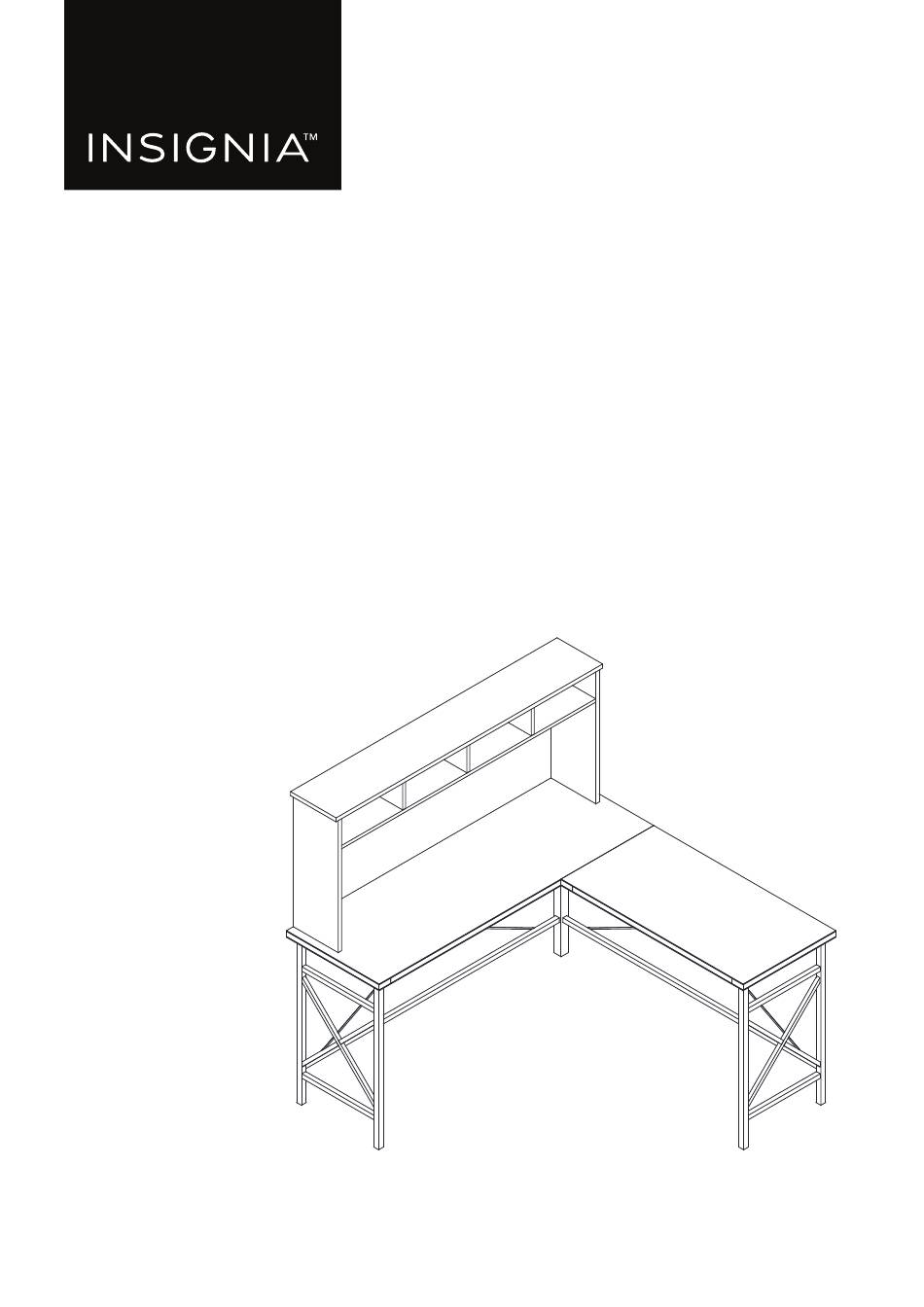

  • Page 1 USER GUIDE L-Shaped Computer Desk NS-ODL3 Before using your new product, please read these instructions to prevent any damage.
  • Page 2: Table Of Contents

    ONE-YEAR LIMITED WARRANTY ................. . .26 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-ODL3 represents the state of the art in desk design and is designed for reliable and trouble-free performance.
  • Page 3: Safety Information

    L-Shaped Computer Desk Safety informatio WARNING: Cancer and reproductive harm. www.p65warnings.ca.gov WARNING: Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. • This product is intended to hold maximum weight indicated: •...
  • Page 4: Parts Included

    Parts included Note: Parts are labeled on the side of each panel. Top hutch panel Back hutch panel Bottom hutch panel Hutch divider panels (3) Left hutch panel Right hutch panel Main desktop Side desktop Main leg assembly Side leg assembly Main back support bar Main front support bar Bottom support bars (2)
  • Page 5: Hardware Included

    L-Shaped Computer Desk Hardware included LABEL HARDWARE QTY. LABEL HARDWARE QTY. Wooden dowels Anchors Cam-lock M5 × 15 mm screws bolts M6 × 15 mm Cam locks bolts 5 × 50 mm screws 3.8 × 45 mm screws M6 × 50 mm M6 ×...
  • Page 6: Understanding Cam Locks And Cam-Lock Screws

    Understanding cam locks and cam-lock screws Screw the cam-lock screws (B) into each piece with a Phillips screwdriver. Make sure that they are straight and flush with each panel. Align the cam lock (C) arrow toward to the hole, then insert the cam-lock screw into the hole of the cam lock. Use a Phillips screwdriver to turn the cam lock (C) clockwise until it is locked.
  • Page 7: Assembling Your Desk

    L-Shaped Computer Desk Assembling your desk STEP 1: Insert wooden dowels into the hutch divider panels You need: Hutch divider panels (3) Wooden dowels (12) Insert 12 wooden dowels (A) into the edges of the three hutch divider panels (4). Be careful not to insert the dowels into the cam-lock screw holes.
  • Page 8: Step 2: Insert Wooden Dowels Into The Bottom Hutch Panel

    STEP 2: Insert wooden dowels into the bottom hutch panel You need: Bottom hutch panel Wooden dowels (4) Insert four wooden dowels (A) into the edges of the bottom hutch panel (3). www.insigniaproducts.com...
  • Page 9: Step 3: Connect The Hutch Divider Panels To The Bottom Hutch Panel

    L-Shaped Computer Desk STEP 3: Connect the hutch divider panels to the bottom hutch panel You need: Hutch divider panels (3) 3.8 × 45 mm screws (3) Bottom hutch panel Phillips screwdriver Screw covers (3) Align the wooden dowels on a hutch divider panel (4) with the holes in the bottom hutch panel (3). Make sure that the edges of the panels are flush with each other so the divider panel edge is not raised (as shown).
  • Page 10: Step 4: Insert Wooden Dowels Into The Back Hutch Panel

    STEP 4: Insert wooden dowels into the back hutch panel You need: Back hutch panel Wooden dowels (6) [Insert six wooden dowels (A) into the edges of the back hutch panel (2). www.insigniaproducts.com...
  • Page 11: Step 5: Connect The Back Hutch Panel To The Hutch Assembly

    L-Shaped Computer Desk STEP 5: Connect the back hutch panel to the hutch assembly You need: Back hutch panel Tip: Add a drop of glue (not included) onto the end of each dowel before inserting it into the hole. Align the wooden dowels on the hutch assembly with the holes in the back hutch panel (2). www.insigniaproducts.com...
  • Page 12: Step 6: Insert Wooden Dowels And Cam-Lock Screws Into The Left And Right Hutch Panels

    STEP 6: Insert wooden dowels and cam-lock screws into the left and right hutch panels You need: Left hutch panel Right hutch panel Wooden dowels (2) Phillips screwdriver Cam-lock screws (8) Insert two wooden dowels (A) into the edges of the left hutch panel (5) and right hutch panel (6). Screw eight cam-lock screws (B) into the left and right hutch panels with a Phillips screwdriver.
  • Page 13: Step 7: Connect The Left And Right Hutch Panels To The Hutch Assembly

    L-Shaped Computer Desk STEP 7: Connect the left and right hutch panels to the hutch assembly You need: Phillips screwdriver Left hutch panel Right hutch panel Cam locks (8) Screw covers (4) To connect the left hutch panel (5) to the hutch assembly, align the wooden dowels and cam-lock screws with the holes in the panels.
  • Page 14: Step 8: Insert Cam-Lock Screws Into The Top Hutch Panel

    STEP 8: Insert cam-lock screws into the top hutch panel You need: Top hutch panel Cam-lock screws (11) Phillips screwdriver Screw 11 cam-lock screws (B) into the top hutch panel (1) with a Phillips screwdriver. Make sure that the cam-lock screws are straight and flush.
  • Page 15: Step 9: Connect The Top Hutch Panel To The Hutch Assembly

    L-Shaped Computer Desk STEP 9: Connect the top hutch panel to the hutch assembly You need: Phillips screwdriver Top hutch panel Cam locks (11) Screw covers (7) To connect the top hutch panel (1) to the hutch assembly, align the wooden dowels and cam-lock screws with the holes in the panels.
  • Page 16: Step 10: Connect The Hutch Assembly To The Main Desktop

    STEP 10: Connect the hutch assembly to the main desktop You need: Wooden dowels (2) Phillips screwdriver Main desktop 5 × 50 mm screws (4) Insert two wooden dowels (A) into the bottom edges of the left hutch panel (5) and right hutch panel (6). Align the wooden dowels and screw holes in the hutch assembly with the holes in the main desktop (7).
  • Page 17: Step 11: Attach Support Bars To The Side Leg Assembly

    L-Shaped Computer Desk STEP 11: Attach support bars to the side leg assembly You need: Side leg assembly Bottom support bar (1) Side back support bar Side front support bar M6 × 50 mm bolts (2) M6 × 15 mm bolts (2) Hex wrench Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts.
  • Page 18: Step 12: Attach The Center Leg To The Side Leg Assembly Supports

    STEP 12: Attach the center leg to the side leg assembly supports You need: Center leg M6 × 50 mm bolt (1) M6 × 15 mm bolts (2) Hex wrench Align the bracket on the center leg (16) with the bottom support bar (13), then secure with two M6 × 15 mm bolts (J) and a hex wrench (M).
  • Page 19: Step 13: Attach Support Bars To The Main Leg Assembly

    L-Shaped Computer Desk STEP 13: Attach support bars to the main leg assembly You need: Main leg assembly Main back support bar Main front support bar Bottom support bar (1) M6 × 50 mm bolts (2) M6 × 15 mm bolts (2) Hex wrench Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts.
  • Page 20: Step 14: Connect The Main Leg Assembly And Side Leg Assembly

    STEP 14: Connect the main leg assembly and side leg assembly You need: M6 × 50 mm bolt M6 × 15 mm bolts (4) Hex wrench Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts. Align the bottom support bar (13) connected to the main leg assembly with the bracket on the center leg (16), then secure with two M6 ×...
  • Page 21: Step 15: Secure The Main Leg Assembly And Side Leg Assembly

    L-Shaped Computer Desk STEP 15: Secure the main leg assembly and side leg assembly You need: M6 × 50 mm bolt Hex wrench Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts. Align the end of the side front support bar (15) with the hole on the main back support bar (11), then secure with a M6 ×...
  • Page 22: Step 16: Attach The Desktops To The Leg Assembly

    STEP 16: Attach the desktops to the leg assembly You need: Side desktop M6 × 30 mm bolts (13) Washers (13) Hex wrench Note: To make assembly easier, do not lock the bolts tightly until you have assembled all other parts. Have someone help you lift the main desktop (7) on top of the main leg assembly.
  • Page 23: Step 17: Attach The Cross Bars To Your Desk

    L-Shaped Computer Desk STEP 17: Attach the cross bars to your desk You need: Cross bars (2) M5 × 15 mm bolts (8) Hex wrench Secure each set of cross bars (17) to the back of the leg assemblies with M5 × 15 mm bolts (I) and the hex wrench (M).
  • Page 24: Step 18: Secure Your Desk To The Wall

    STEP 18: Secure your desk to the wall You need: Drill with M8 bit Anchors (2) 5 × 50 mm screws (2) Screw covers (2) (For wall mounting only) Phillips #2 screwdriver Hammer Pencil WARNING: • DO NOT SKIP THIS STEP. Securing your desk protects children and pets from accidental tip-overs and injury. •...
  • Page 25: Cleaning Your Desk

    L-Shaped Computer Desk Cleaning your desk • Clean the surface of your desk with a duster or damp cloth only. • Do not use abrasive cleaners. Specifications Dimensions (H × W × D) 54.4 × 56 × 56 in. (138.3 × 142.3 × 142.3 cm) Weight 89.3 lbs.
  • Page 26: One-Year Limited Warranty

    Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges.
  • Page 27 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2022 Best Buy. All rights reserved.
